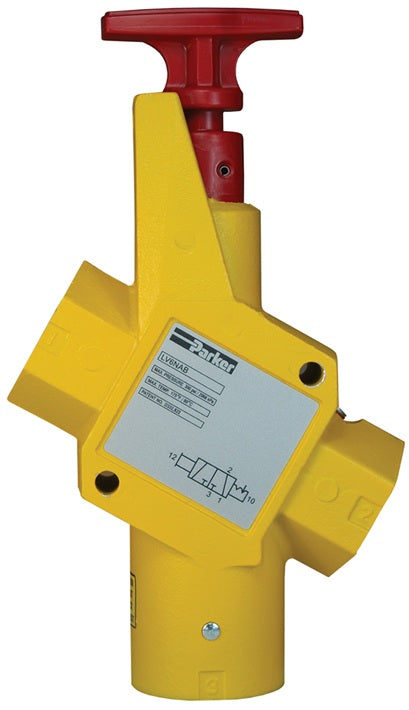

LV8NAD Wilkerson by Dixon Valve | Lockout Valve | 1" In/Out Port | 1-1/4" Exhaust Port | Aluminum

LV8NAD Wilkerson by Dixon Valve | Lockout Valve | 1" In/Out Port | 1-1/4" Exhaust Port | Aluminum

Sale price$419.52
Buy more, save moreDiscounts applied in cart/checkout.
Application:
  • Lockout valves are installed in pneumatic drop legs or individual pneumatic control lines, in accordance with OSHA procedures, lockout valves are used during maintenance and service procedures of pneumatically (air) operated equipment.
Features:
  • Inline or surface mountable.
Materials:
  • Yellow cast aluminum body with red handle.
Specifications:
  • Pressure range: 15-300 PSI
  • Temperature range: 40°F to 175°F (4°C to 79°C)
Part Number Port In/Out Port Exhaust
LV4N6D 1/2" 3/4"
LV6N6D 3/4" 3/4"
LV6NAD 3/4" 1-1/4"
LV8NAD 1" 1-1/4"

Additional Product Data:

Brand:
  • Wilkerson

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
