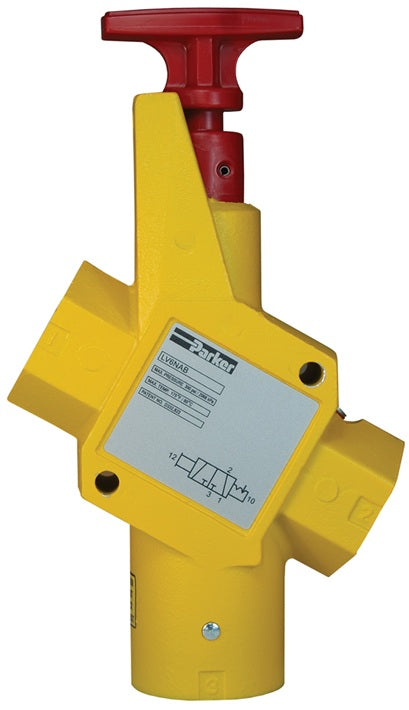

LV6NAD Wilkerson by Dixon Valve | Lockout Valve | 3/4" In/Out Port | 1-1/4" Exhaust Port | Aluminum

LV6NAD Wilkerson by Dixon Valve | Lockout Valve | 3/4" In/Out Port | 1-1/4" Exhaust Port | Aluminum

Sale price$419.52

Dixon Valve
Wilkerson | Lockout Valve

In accordance with OSHA procedures, lockout valves are used during maintenance and service procedures of pneumatically (air) operated equipment.

Used to comply with OSHA 29 CFR part 1910.

Built in port for pressure verification to meet ANSI B11 and Pmm 155 requirements.
Buy More, Save More!
Quantity Price Each
5–14 $394.35
15–29 $356.59
30+ $314.64
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Wilkerson
Application:
  • Lockout valves are installed in pneumatic drop legs or individual pneumatic control lines, in accordance with OSHA procedures, lockout valves are used during maintenance and service procedures of pneumatically (air) operated equipment.
Features:
  • Inline or surface mountable.
Materials:
  • Yellow cast aluminum body with red handle.
Specifications:
  • Pressure range: 15-300 PSI
  • Temperature range: 40°F to 175°F (4°C to 79°C)
Part Number Port In/Out Port Exhaust
LV4N6D 1/2" 3/4"
LV6N6D 3/4" 3/4"
LV6NAD 3/4" 1-1/4"
LV8NAD 1" 1-1/4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
