Sale price$114.74

Banjo Line Strainers - LSQ Line Strainers - 2" Female NPT - Polypropylene

In stock
Buy More, Save More!
Quantity Price Each
5–19 $107.86
20–59 $97.53
60+ $86.06
Discounts applied in cart/checkout.

Product Data:
Applications:
  • Fluids
  • Agriculture
  • Industrial

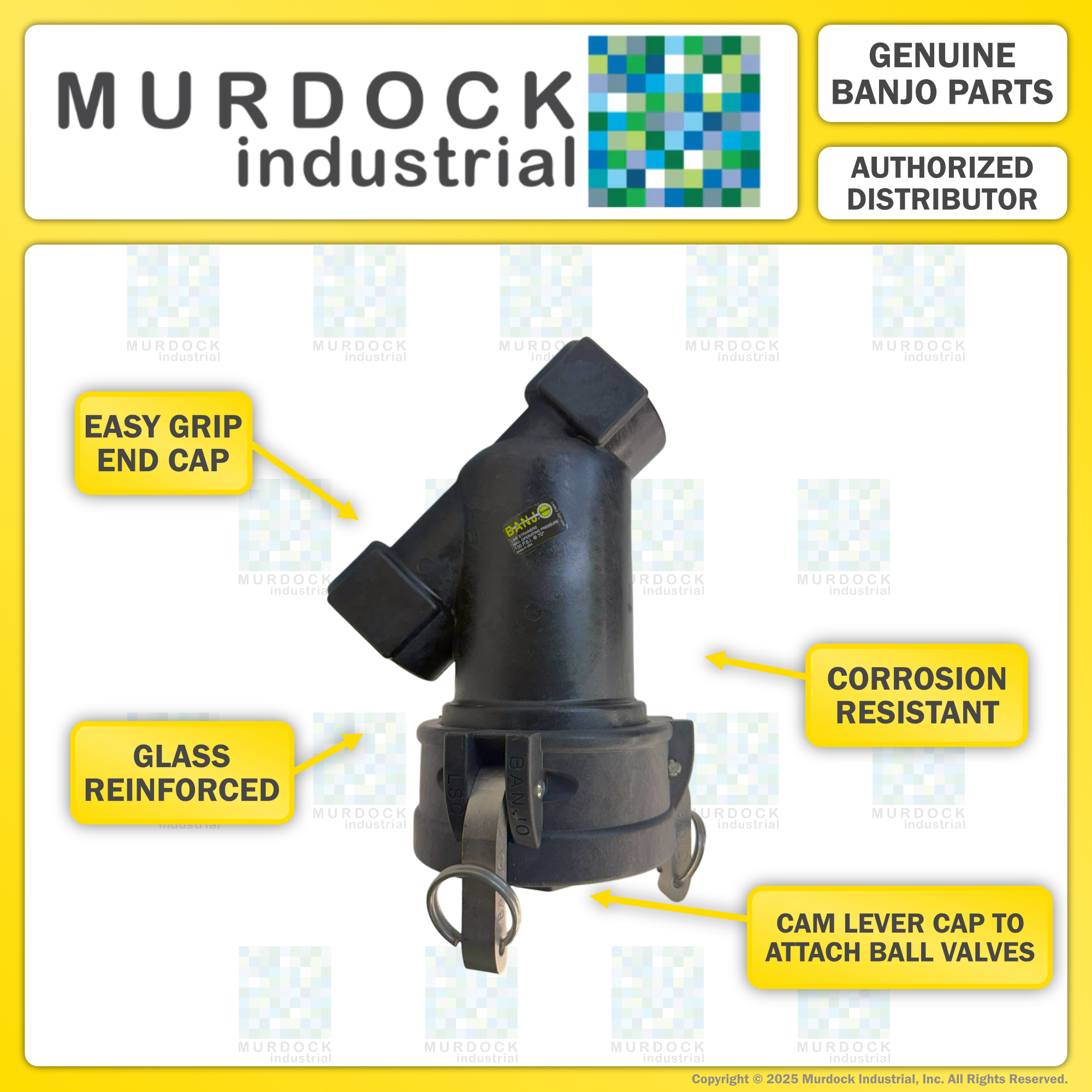

Features:
  • Precision molded in glass reinforced polypropylene
  • Cam lever configuration for easy access for cleaning and servicing
  • 3/4" plug in cam lever cap for attaching ball valve for draining or back flushing
  • Poly ribbed 316 stainless steel screen
  • EPDM lathe cut gasket
  • FKM (viton type) gaskets available

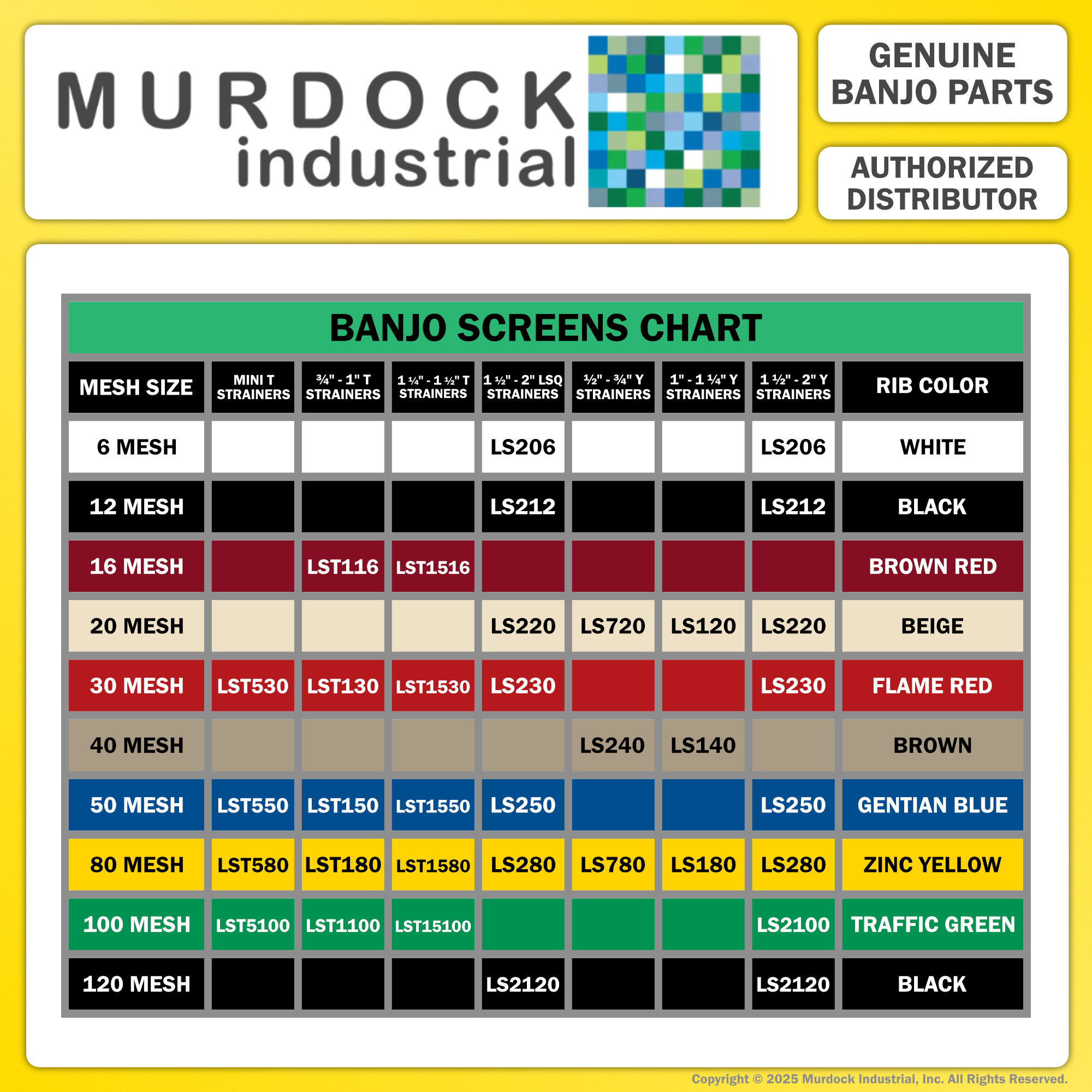

  • Convenient color coded screens for easy mesh size identification. (Refer to chart below)
Other Data:
Screens Standard Meshes & Data (For General Use Only)
Mesh Size Rib Color Microns Wire Diameter Opening % Open Area
6 Mesh White 3360 .035 .132 62.7
12 Mesh Black 1680 .023 .060 51.8
20 Mesh Beige 841 .016 .034 46.2
30 Mesh Flame Red 595 .012 .021 40.8
50 Mesh Gentian Blue 297 .009 .011 30.3
80 Mesh Zinc Yellow 177 .0055 .007 31.4
120 Mesh Black 116 .0037 .0046 30.5

    Part Number Description Max PSI Gasket
    LSQ200-06 2" x 2" Female NPT with 6 Mesh Screen 100 PSI EPDM
    FKM Gaskets Available
    LSQ200-20 2" x 2" Female NPT with 20 Mesh Screen 100 PSI EPDM
    FKM Gaskets Available
    LSQ200-30 2" x 2" Female NPT with 30 Mesh Screen 100 PSI EPDM
    FKM Gaskets Available
    LSQ200-50 2" x 2" Female NPT with 50 Mesh Screen 100 PSI EPDM
    FKM Gaskets Available
    LSQ200-80 2" x 2" Female NPT with 80 Mesh Screen 100 PSI EPDM
    FKM Gaskets Available

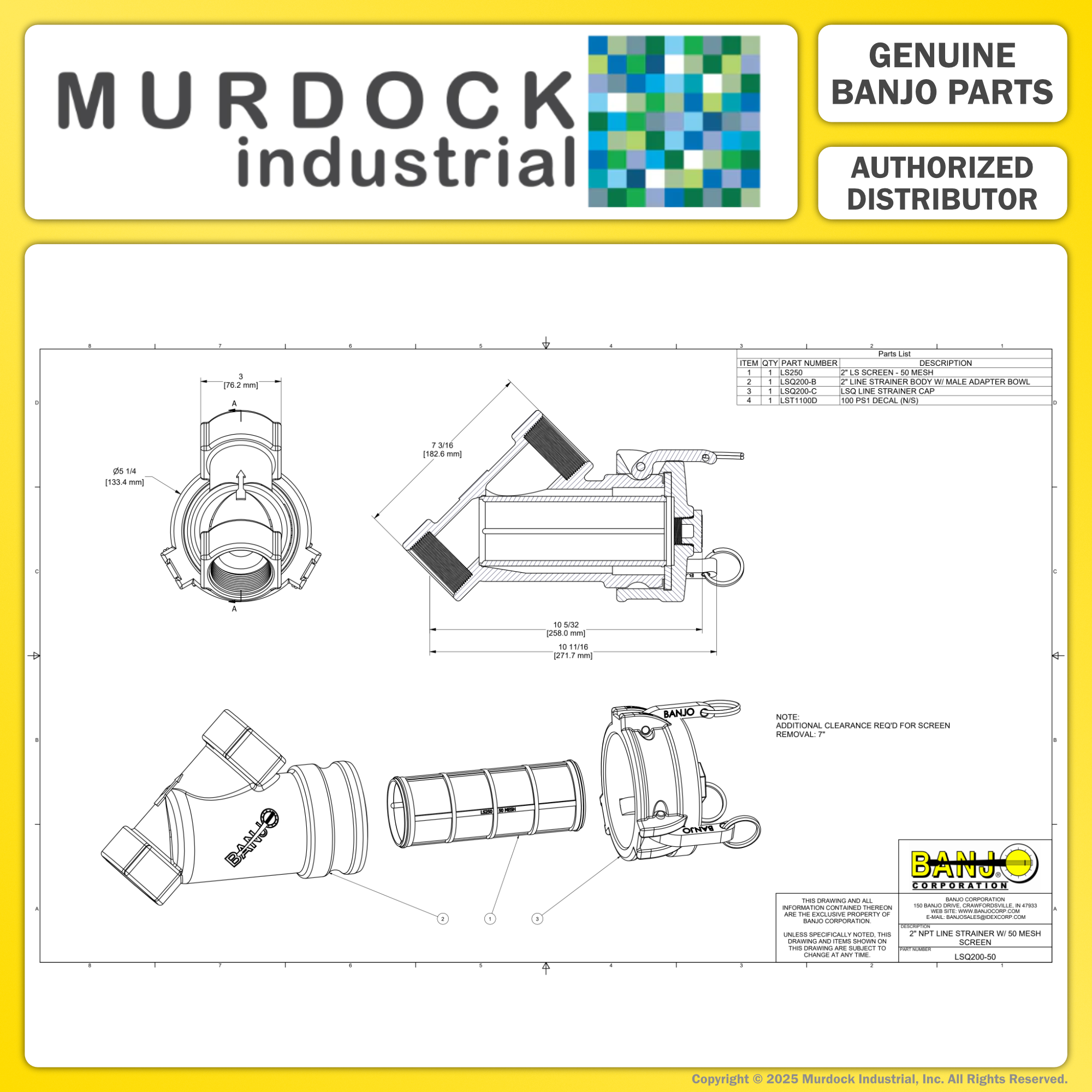

    Replacement Parts for LSQ150 & LSQ200
    Item Part Number Description Quantity Required
    1 LSQ200-B 2" LSQ Body 1
    2 LS206 6 Mesh Screen 1
    2 LS212 12 Mesh Screen 1
    2 LS220 20 Mesh Screen 1
    2 LS230 30 Mesh Screen 1
    2 LS250 50 Mesh Screen 1
    2 LS280 80 Mesh Screen 1
    2 LS2120 120 Mesh Screen 1
    2 LS2150 150 Mesh Screen 1
    3 LSQ200-G 2" EPDM Gasket 1
    4 300P SS Cam Pin 1
    5 300K 3" SS Cam Arm w/Ring 1
    6 LSQ200R1 EPDM for Clean Out Plug 1
    6 13778V O-Ring 1
    8 LSQ200-C 2" Cap 1

    NOTE: Items marked with asterisk* include parts 3, 4, 5, 6 and 7.

    Banjo

    Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
