LS56 by Dixon Valve | Style LS | Quick-Release Worm Gear Clamp | 1/2" Band Width | Hose OD Range: from 1" to 4" | 201 Stainless Steel Band | Plated Hardened Carbon Steel Screw | Box of 10
Dixon

LS56 by Dixon Valve | Style LS | Quick-Release Worm Gear Clamp | 1/2" Band Width | Hose OD Range: from 1" to 4" | 201 Stainless Steel Band | Plated Hardened Carbon Steel Screw | Box of 10

Minimum Order Quantity: 5 Units

Sale price$110.88

Dixon Valve

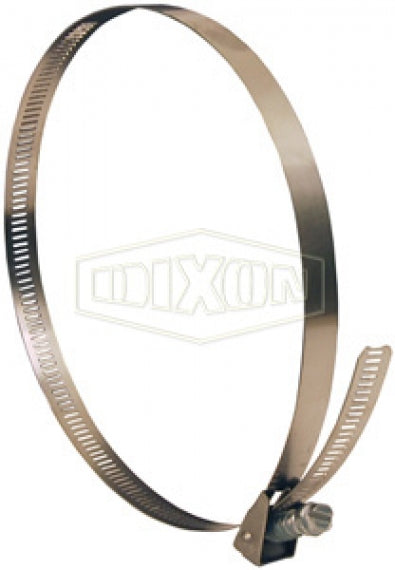

Quick-Release Worm Gear Clamps | Style LS


Package Quantity: 10 EA

Product Data:

Series:
  • Style LS
Material(s):
  • 201 Stainless Steel
  • Carbon Steel
Clamp Width:

0.5"
Features:
  • Screw design: 5/16" slotted hex head.
  • Suggested installation torque 25-35 in. lbs., maximum recommended torque 50 in. lbs.
  • Torque ratings correspond to the torque rating of the screw of the clamp and are not an indication of the working pressure of any hose assembly installed with this clamp.
Materials:
  • Band and housing: 201-series stainless.
  • Style LS Screw: plated hardened carbon steel.
  • Style LSS Screw: SAE 410-series stainless.
Part Number
Style LS		 Part Number
Style LSS		 Band Width Hose OD
From To
LS48 LSS48 1/2" 1-1/2" 3-1/2"
LS56 - 1/2" 1" 4"
LS72 LSS72 1/2" 2" 5"
LS88 LSS88 1/2" 2" 6"
LS96 - 1/2" 3-1/2" 6-1/2"
LS104 LSS104 1/2" 2-7/8" 7"
LS128 LSS128 1/2" 1-3/4" 8-1/2"
LS152 - 1/2" 2" 10"
LS188 LSS188 1/2" 2" 12-1/4"
- LSS216 1/2" 10-3/16" 14"
- LSS248 1/2" 1-3/4" 16"
- LSS312 1/2" 1-7/8" 20"
