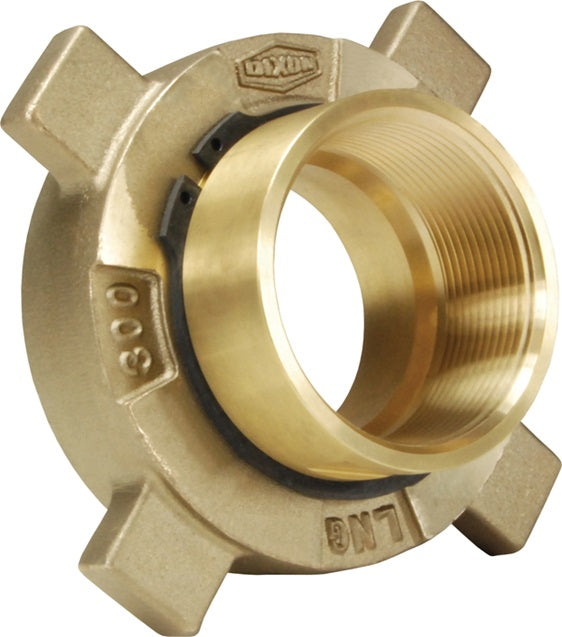

LNG20BRHE-NC by Dixon Valve | Liquid Natural Gas Coupling | 2" Size | LNG20 Hose End With 2" Female NPT Thread | Brass

LNG20BRHE-NC by Dixon Valve | Liquid Natural Gas Coupling | 2" Size | LNG20 Hose End With 2" Female NPT Thread | Brass

Sale price$1,120.47
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Fixed end design threads on tank truck pipe connection line, manifold, pipe outlet, or pipe connection.
  • PTFE gasket reduces force needed to make a tight connection.
  • Connect by hammering the acme threaded nut onto a fixed end.
  • Hose end designed female NPT thread attached to hose end.
  • Snap ring keeps connection nut in place for easier connecting.
  • Hose end lugs intended to be struck with a non-sparking hammer or similar non-sparking device.
Construction:
  • Body: Brass
  • Seal: PTFE
Specifications:
  • Meets CGA V-6 LNG-30 guidelines.
  • Compatible with LNG couplings made to CGA guidelines.
  • Temperature as low as -320°F (-196°C) at standard LNG transfer pressures.
  • 450 PSI working pressure with 4 to 1 safety factor
Part Size Description
LNG20BRHE 2" LNG30 Hose End With 2" Female NPT Thread / With Plug & Retaining
LNG30BRHE 3" LNG30 Hose End With 3" Female NPT Thread / With Plug & Retaining
LNG20BRHE-NC 2" LNG20 Hose End With 2" Female NPT Thread
LNG30BRHE-NC 3" LNG30 Hose End With 3" Female NPT Thread
LNG30BRHENUT 3" LNG30 Swivel Nut
LNGBRHEPLUG - Plug for LNG30BRHE and LNG20BRHE

Additional Product Data:

Material(s):
  • Brass

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
