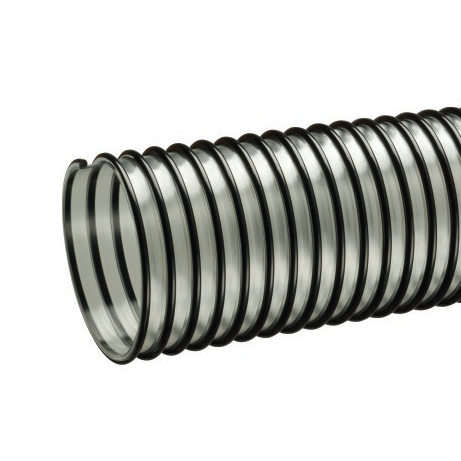

LKC700X50 Tigerflex by Kuriyama | LKC Series | Lawn King Ducting/Material Handling Hose | 7" ID | PVC | 50ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Dust collection, Lawn and leaf collection, Material handling - light duty | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | PVC |
| Reinforcement: | Rigid PVC Helix | Cover: | N/A |
| Temperature Range: | -20 deg. F (-29 deg. C) to 150 deg. F (+65 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | RoHS(10) |
| Other Features: | |||
|
|||
| Part Number | ID | ID | OD | OD | Working Pressure (PSI) | Vacuum Rating (in. Hg) | Approx. Bending Radius | Standard Length | Weight (Lbs/Ft) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | 68 deg. F | 104 deg. F | 68 deg. F | 104 deg. F | (in @ 68 deg. F) | (ft.) | ||
| LKC400X100 | 4" | 101.6mm | 4.45" | 114.8mm | 8 PSI | 4 PSI | 13 in. Hg | 7 in. Hg | 3" | 100ft | 0.85 lbs |
| LKC400X50 | 4" | 101.6mm | 4.45" | 114.8mm | 8 PSI | 4 PSI | 13 in. Hg | 7 in. Hg | 3" | 50ft | 0.85 lbs |
| LKC400X50 | 5" | 128.0mm | 5.55" | 141.0mm | 7 PSI | 3 PSI | 10 in. Hg | 6 in. Hg | 5" | 100ft | 0.93 lbs |
| LKC600X100 | 6" | 152.4mm | 6.63" | 168.3mm | 6 PSI | 3 PSI | 7 in. Hg | 5 in. Hg | 6" | 100ft | 1.34 lbs |
| LKC600X50 | 6" | 152.4mm | 6.63" | 168.3mm | 6 PSI | 3 PSI | 7 in. Hg | 5 in. Hg | 6" | 50ft | 1.34 lbs |
| LKC700X50 | 7" | 177.8mm | 7.56" | 192.0mm | 4 PSI | 2 PSI | 6 in. Hg | 4 in. Hg | 7" | 50ft | 1.53 lbs |
| LKC800X50 | 8" | 203.2mm | 8.63" | 219.3mm | 4 PSI | 2 PSI | 5 in. Hg | 3 in. Hg | 8" | 50ft | 2.00 lbs |
