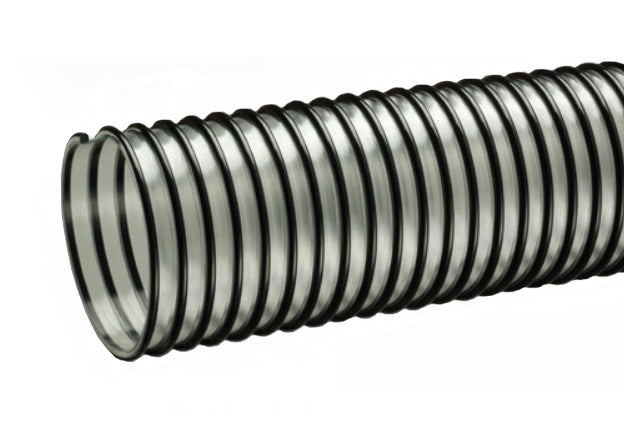

LKC600X100 Tigerflex™ by Kuriyama | Lawn King™ | LKC™ Series | PVC Ducting / Material Handling Hose | 6" ID | 6.63" OD | Transparent | 100ft Length
Kuriyama

LKC600X100 Tigerflex™ by Kuriyama | Lawn King™ | LKC™ Series | PVC Ducting / Material Handling Hose | 6" ID | 6.63" OD | Transparent | 100ft Length

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

General Applications:
  • Dust collection
  • Lawn and leaf collection
  • Material handling - light duty
Construction:
  • PVC tube with rigid PVC helix.
Specifications:
  • Phthalate Free
  • RoHS
Service Temperature Range:
  • -20°F (-29°C) to +150°F (+65°C)*
    *Actual service temperature range is application dependent
Features and Advantages:
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Transparent Construction (LKC series only) - "See-the-flow." Allows for visual confirmation of material flow.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
  • Phthalate Free.
Notes:
  • Service life may vary depending on operating conditions and type of material being conveyed.
LK™ Series | Black
Part Number
50ft Length		 Part Number
100ft Length		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
Min. Bend
Radius
at 68°F		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 in (lbs/ft)
LK400X50 LK400X100 4" 101.6mm 4.57" 114.8mm 8 PSI 4 PSI 13 in Hg 7 in Hg 3" 0.85 lbs/ft
LK600X50 - 6" 152.4mm 6.63" 168.3mm 6 PSI 3 PSI 7 in Hg 5 in Hg 6" 1.34 lbs/ft
LK800X50 - 8" 203.2mm 8.63" 219.3mm 4 PSI 2 PSI 5 in Hg 3 in Hg 8" 2.00 lbs/ft
LKC™ Series | Transparent
Part Number
50ft Length		 Part Number
100ft Length		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
Min. Bend
Radius
at 68°F		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 in (lbs/ft)
LKC400X50 LKC400X100 4" 101.6mm 4.57" 114.8mm 8 PSI 4 PSI 13 in Hg 7 in Hg 3" 0.85 lbs/ft
- LKC500X100 5" 128.0mm 5.55" 141.0mm 7 PSI 3 PSI 10 in Hg 6 in Hg 5" 0.93 lbs/ft
LKC600X50 LKC600X100 6" 152.4mm 6.63" 168.3mm 6 PSI 3 PSI 7 in Hg 5 in Hg 6" 1.34 lbs/ft
LKC700X50 - 7" 177.8mm 7.56" 192.0mm 4 PSI 2 PSI 6 in Hg 4 in Hg 7" 1.53 lbs/ft
LKC800X50 - 8" 203.2mm 8.63" 219.3mm 4 PSI 2 PSI 5 in Hg 3 in Hg 8" 2.00 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
