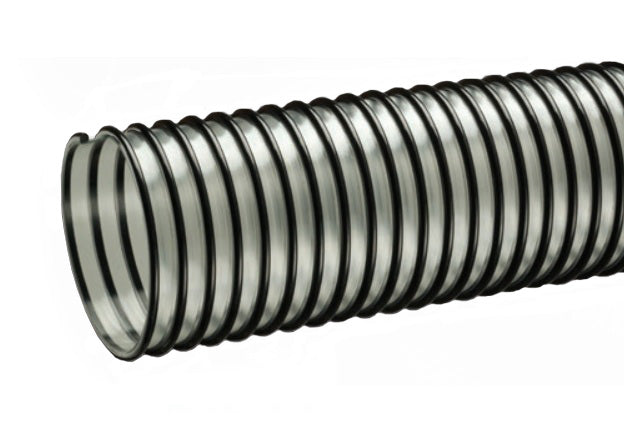

LKC400X50 Tigerflex™ by Kuriyama | Lawn King™ | LKC™ Series | PVC Ducting / Material Handling Hose | 4" ID | 4.57" OD | Transparent | 50ft Length

LKC400X50 Tigerflex™ by Kuriyama | Lawn King™ | LKC™ Series | PVC Ducting / Material Handling Hose | 4" ID | 4.57" OD | Transparent | 50ft Length

Sale price$592.22

Tigerflex™ by Kuriyama
Lawn King™ | LK™ / LKC™ Series | PVC Ducting/Material Handling Hose

Designed for general applications such as dust collection, lawn and leaf collection, and light-duty material handling.

Made in the USA.

Package Quantity: 50 Foot

Buy More, Save More!
Quantity Price Each
5–14 $556.69
15–29 $503.39
30+ $444.17
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Tigerflex
Series:
  • Lawn King
  • LK Series
Color(s):
  • Black & Clear/Semi-Clear
General Applications:
  • Dust collection
  • Lawn and leaf collection
  • Material handling - light duty
Construction:
  • PVC tube with rigid PVC helix.
Specifications:
  • Phthalate Free
  • RoHS
Service Temperature Range:
  • -20°F (-29°C) to +150°F (+65°C)*
    *Actual service temperature range is application dependent
Features and Advantages:
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Transparent Construction (LKC series only) - "See-the-flow." Allows for visual confirmation of material flow.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
  • Phthalate Free.
Notes:
  • Service life may vary depending on operating conditions and type of material being conveyed.
LK™ Series | Black
Part Number
50ft Length		 Part Number
100ft Length		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
Min. Bend
Radius
at 68°F		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 in (lbs/ft)
LK400X50 LK400X100 4" 101.6mm 4.57" 114.8mm 8 PSI 4 PSI 13 in Hg 7 in Hg 3" 0.85 lbs/ft
LK600X50 - 6" 152.4mm 6.63" 168.3mm 6 PSI 3 PSI 7 in Hg 5 in Hg 6" 1.34 lbs/ft
LK800X50 - 8" 203.2mm 8.63" 219.3mm 4 PSI 2 PSI 5 in Hg 3 in Hg 8" 2.00 lbs/ft
LKC™ Series | Transparent
Part Number
50ft Length		 Part Number
100ft Length		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
Min. Bend
Radius
at 68°F		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 in (lbs/ft)
LKC400X50 LKC400X100 4" 101.6mm 4.57" 114.8mm 8 PSI 4 PSI 13 in Hg 7 in Hg 3" 0.85 lbs/ft
- LKC500X100 5" 128.0mm 5.55" 141.0mm 7 PSI 3 PSI 10 in Hg 6 in Hg 5" 0.93 lbs/ft
LKC600X50 LKC600X100 6" 152.4mm 6.63" 168.3mm 6 PSI 3 PSI 7 in Hg 5 in Hg 6" 1.34 lbs/ft
LKC700X50 - 7" 177.8mm 7.56" 192.0mm 4 PSI 2 PSI 6 in Hg 4 in Hg 7" 1.53 lbs/ft
LKC800X50 - 8" 203.2mm 8.63" 219.3mm 4 PSI 2 PSI 5 in Hg 3 in Hg 8" 2.00 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
