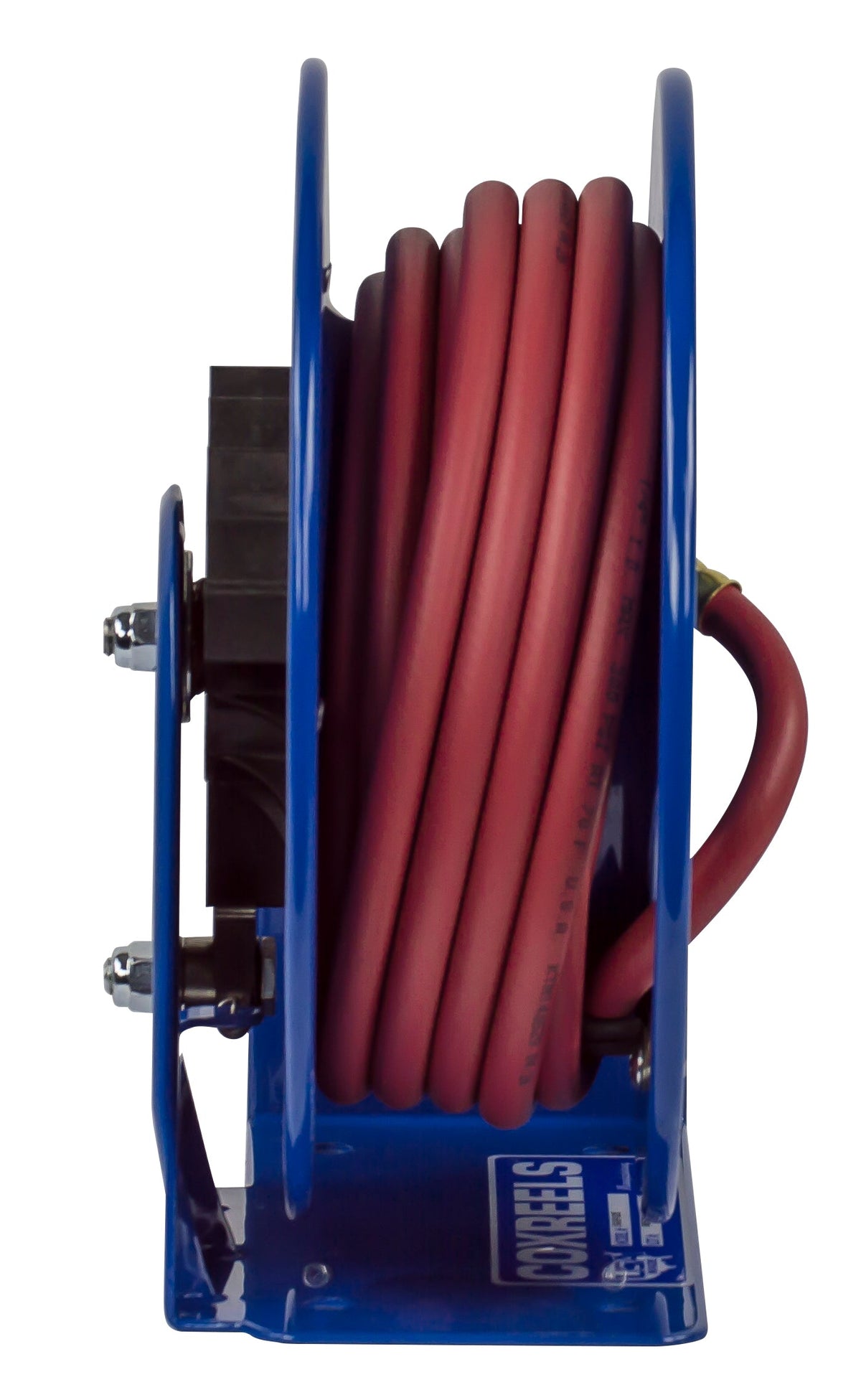

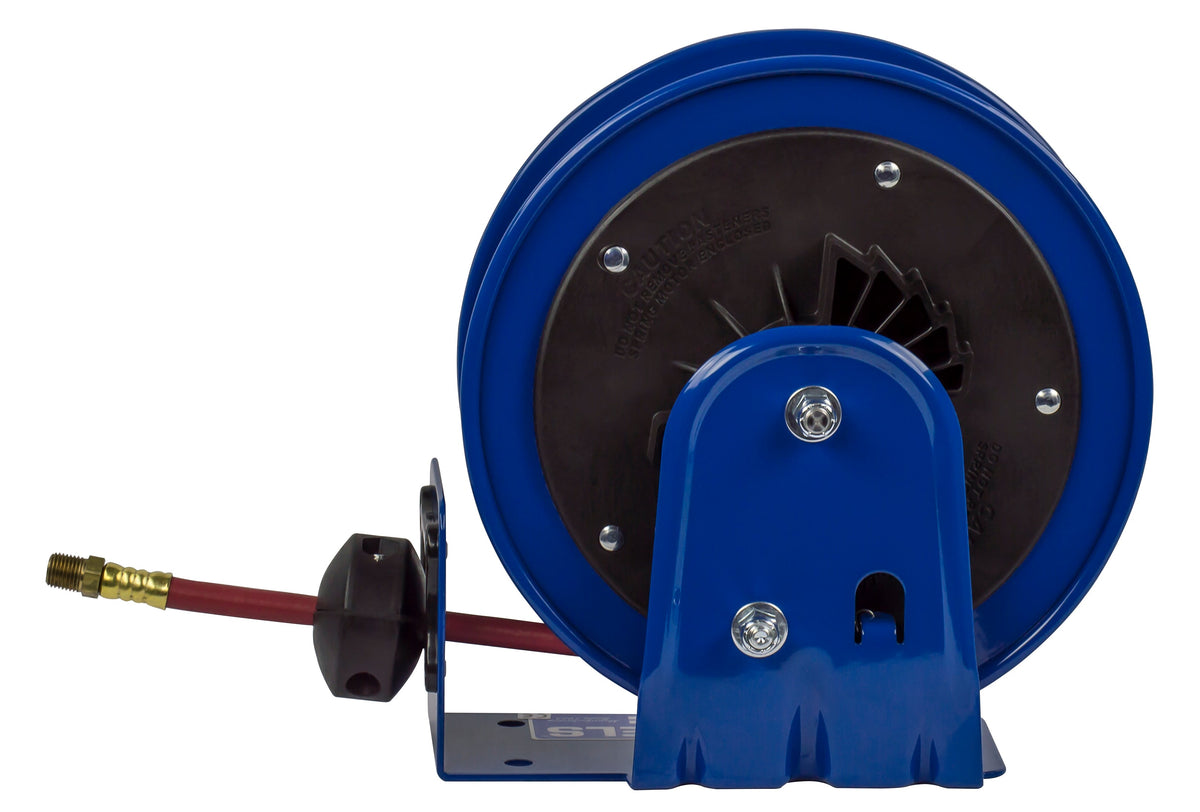

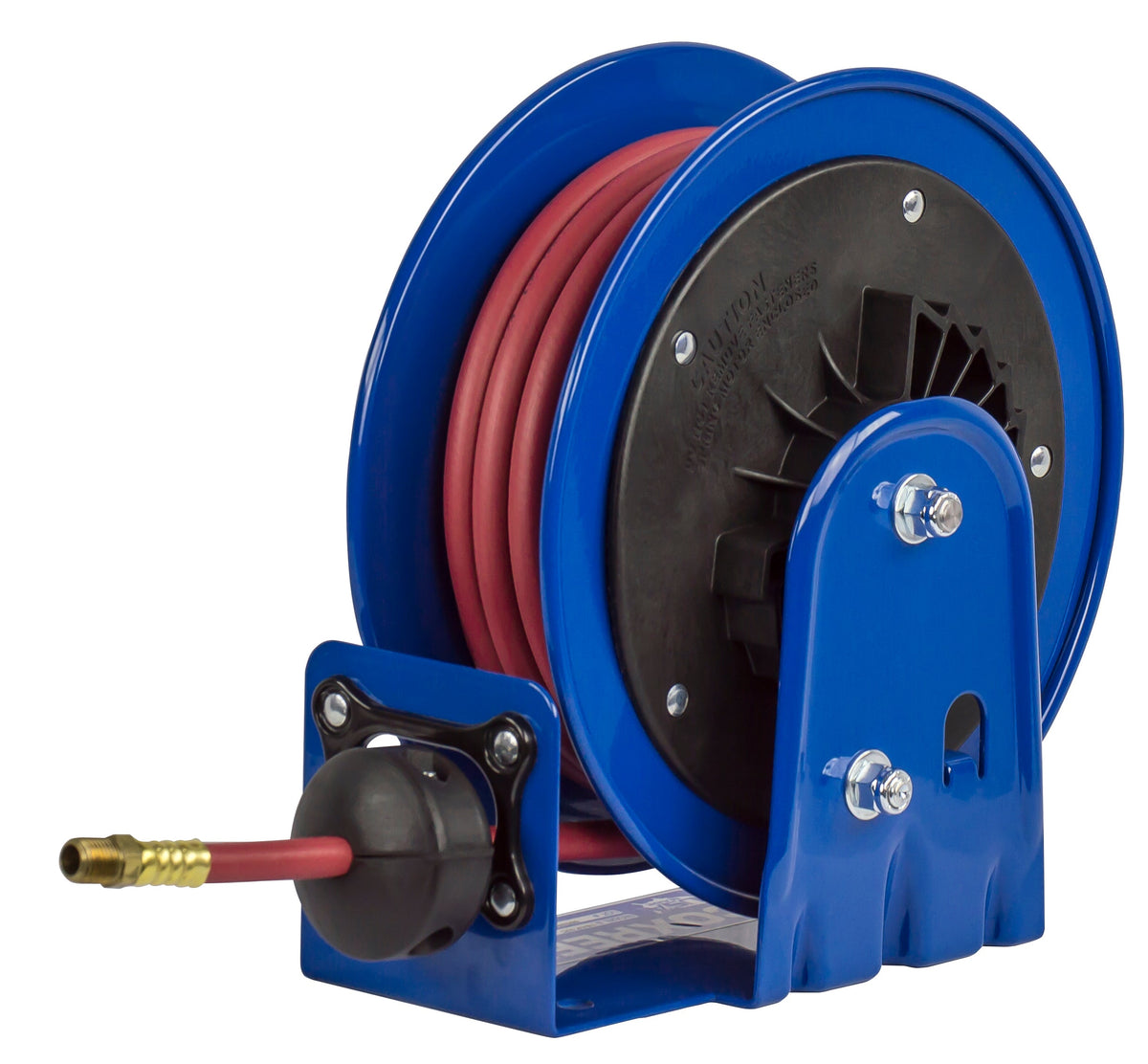

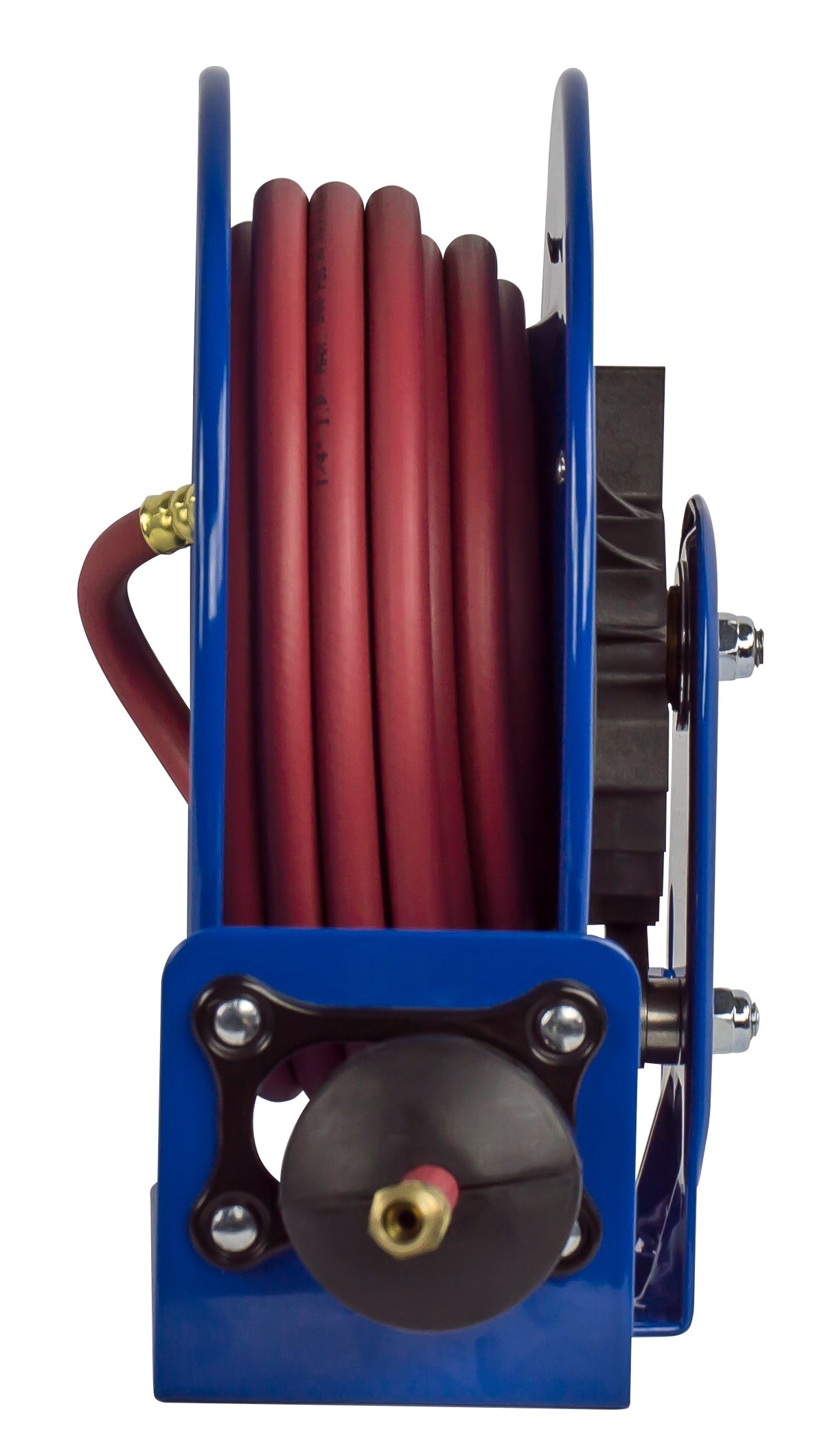

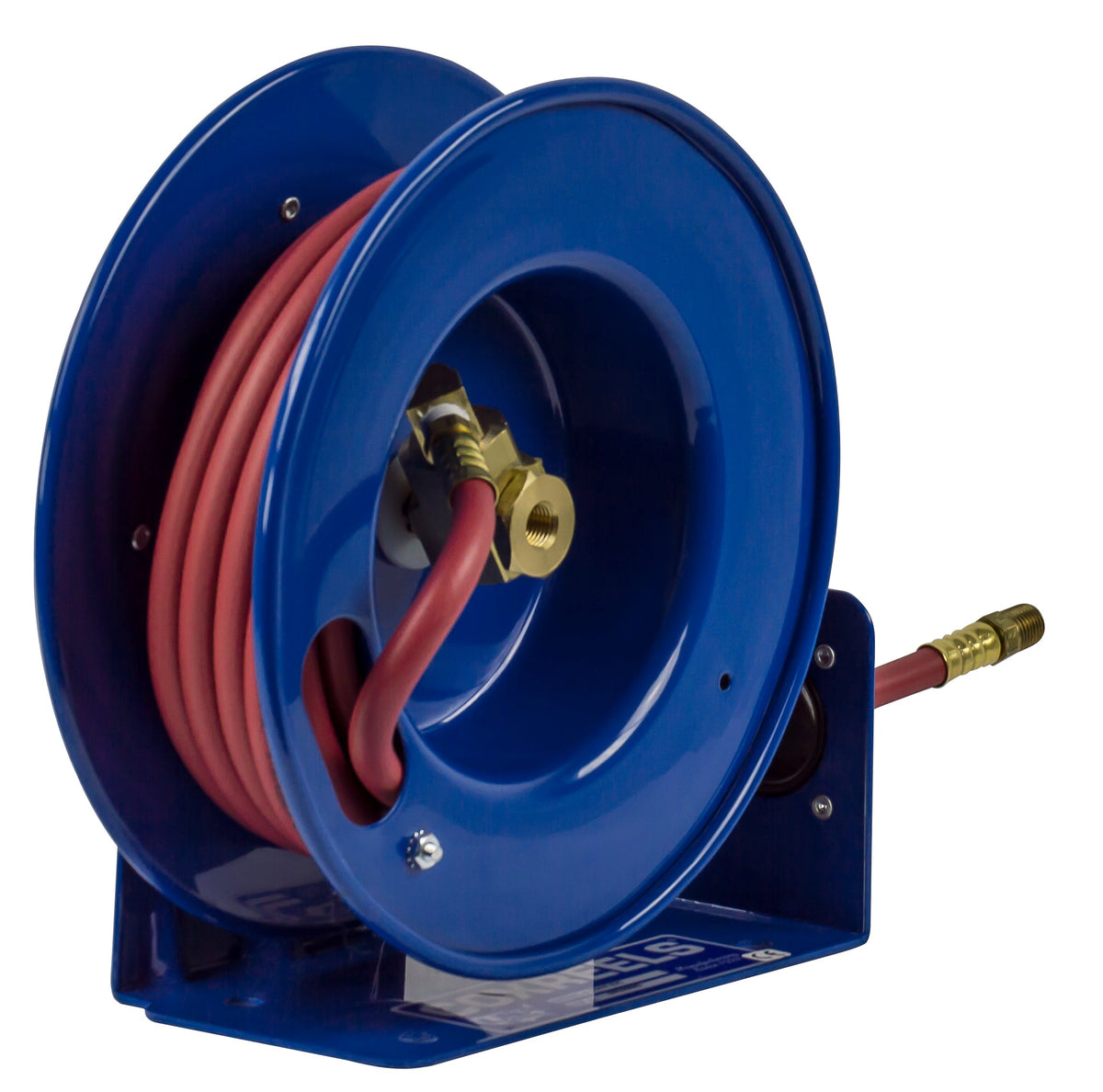

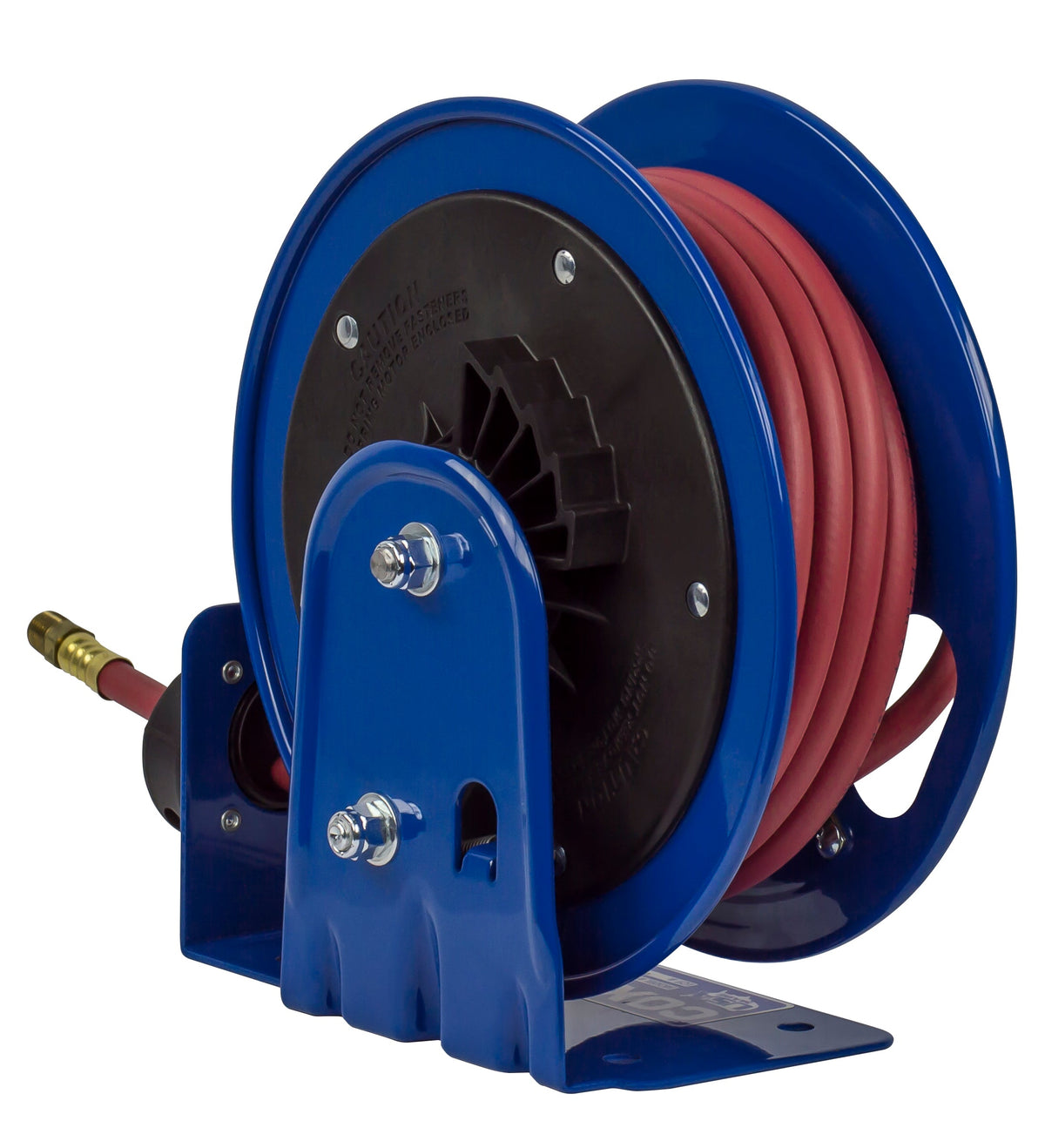

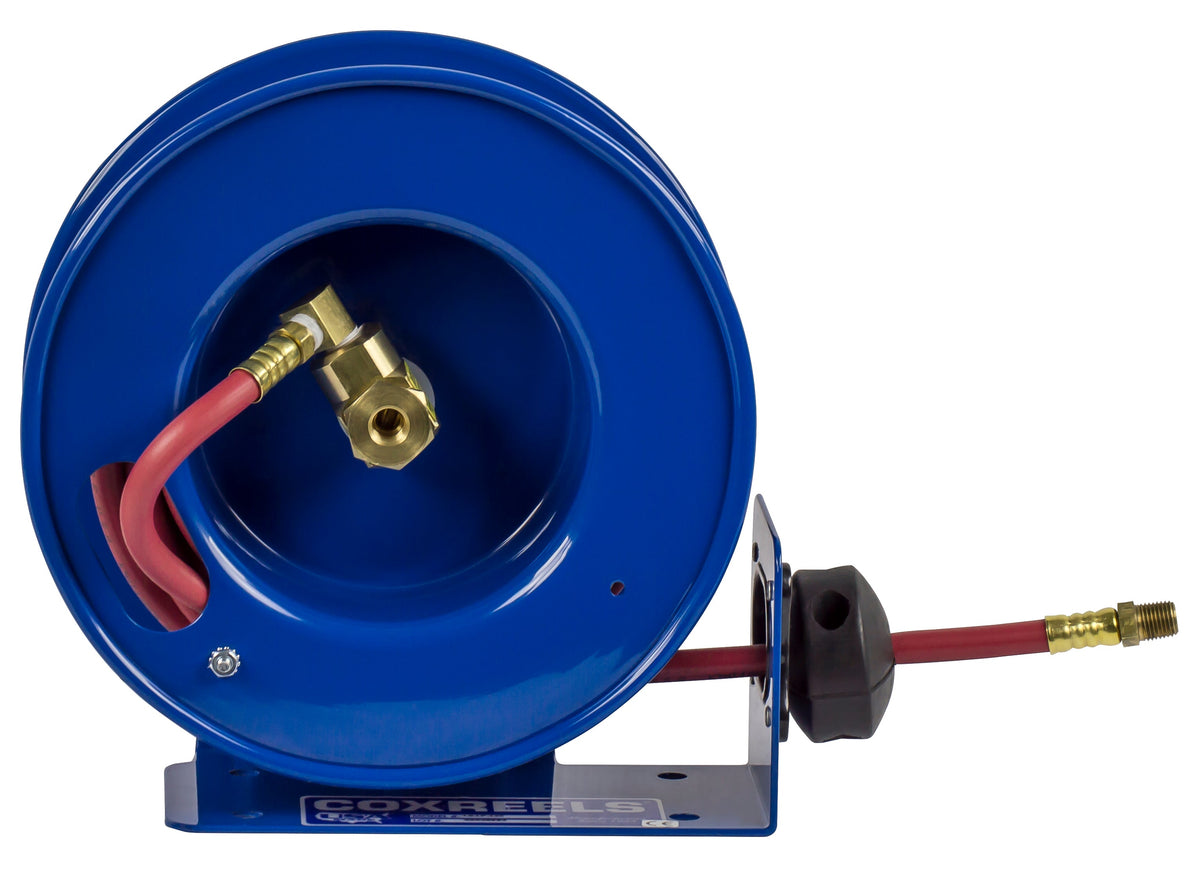

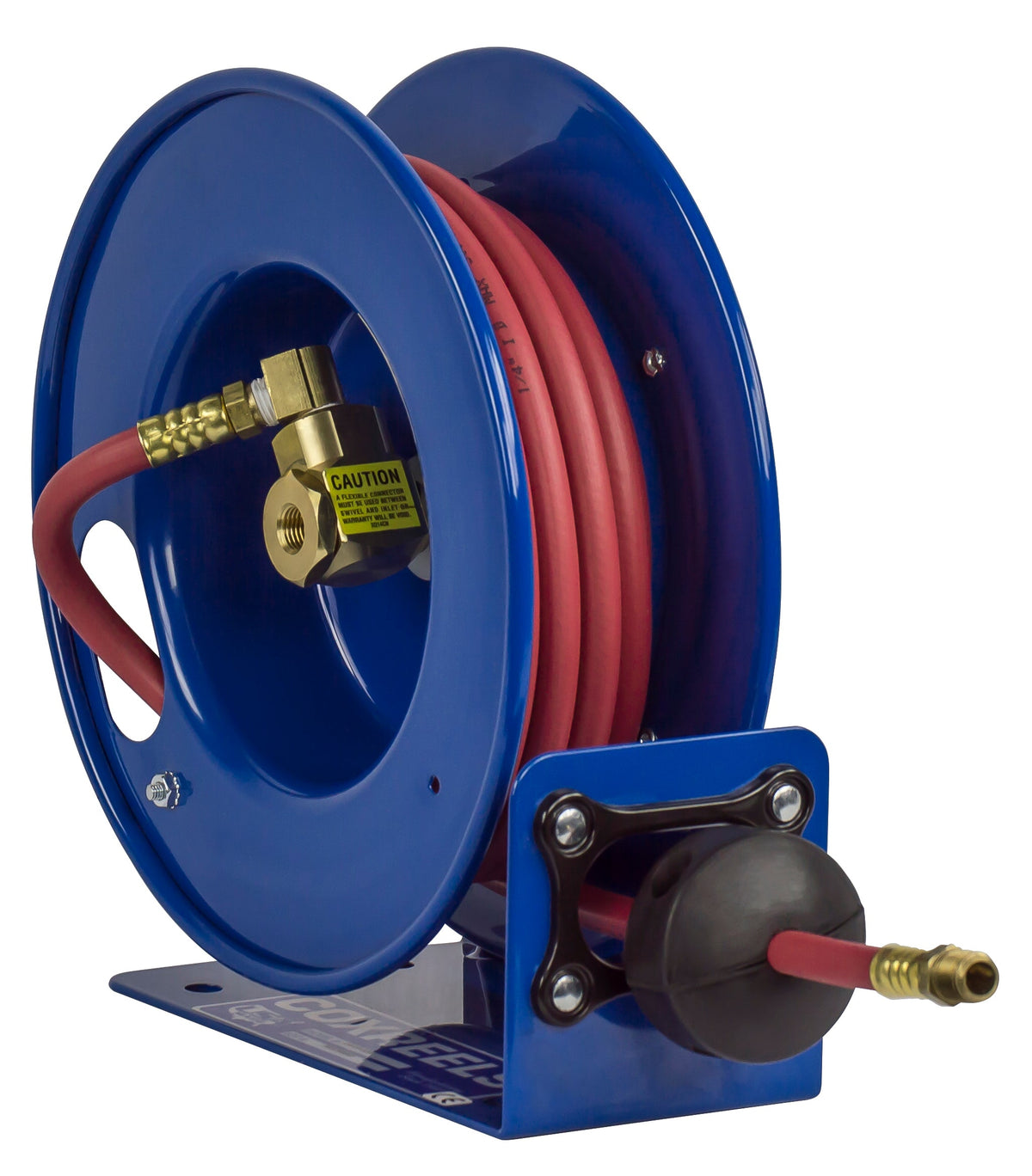

LG-LP-310 by Coxreels | LG Series | 300 PSI Spring Driven Hose Reel | 3/8" Hose ID, 3/8" FNPT Inlet x 3/8" MNPT Hose End | Steel | 10ft PVC Hose Included
Coxreels LG Series Spring Driven Hose Reels
Steel single-pedestal spring driven hose reels for air, water and chemical fluid transfer, rated to 300 PSI. Made in the U.S.A.
1
What is this product used for?
- Air
- Water
- Chemical Fluid Transfer
2
What are the key specifications?
Steel, single-pedestal
Brass 90° full-flow with Nitrile seals
Female NPT, same size as the hose I.D.
150°F
1/2" Permanently Lubricated Precision Bearings
CPC™ powder coat
Floor, Wall, Ceiling, Bench and Vehicles
Ø0.41" mounting holes
5.25 × 10.625 × 10.5 in
3
What are the main product features?
- Swivel — Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Ratchet Hub — Non-corrosive, high strength CoxComposite™ ratchet hub with self lubricating bronze bearings secures hose at desired length.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 12Ga Steel Base — Solid one piece, 12GA steel base and support post for maximum stability. Compact & lightweight spring driven hose reel.
- Grommet — CoxComposite™ grommet with continuous radius design that does not pinch or catch the hose during operation.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI |
|---|---|---|---|
| Less hose | |||
| LG-LPL-115 | 1/4" | 15 ft | 300 |
| LG-LPL-125 | 1/4" | 25 ft | 300 |
| LG-LPL-310 | 3/8" | 10 ft | 300 |
| LG-LPL-320 | 3/8" | 20 ft | 300 |
| PVC | |||
| LG-LP-115 | 1/4" | 15 ft | 300 |
| LG-LP-125 | 1/4" | 25 ft | 300 |
| LG-LP-310 | 3/8" | 10 ft | 300 |
| LG-LP-320 | 3/8" | 20 ft | 300 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Inlet connections | ||
| 5150-1.5 | 18" inlet hose | Hose I.D. 1/4" |
| 5153-1.5 | 18" inlet hose | Hose I.D. 3/8" |
| 208 | 90° inlet elbow (brass) | Hose I.D. 3/8" |
| 6088 | 90° inlet elbow (brass) | Hose I.D. 1/4" |
| Hose end | ||
| 131 | Hose/cord stop | Hose I.D. 1/4" |
| 131-3 | Hose/cord stop | Hose I.D. 3/8" |
| 10759-1 | Quick disconnect | Hose I.D. 1/4" |
| 10759-2 | Quick disconnect | Hose I.D. 3/8" |
| 237-1 | Spiral hose/cord guard | Every model |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BVX is -GVX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Hose suffix | |
| -BP | Blue PVC Hose |
| -YP | Yellow PVC Hose |
| -OG | Oil/Grease Resistant |
| -RH | Red EPDM |
| -BH | Black EPDM |
| -HV | Hi-Vis PVC+Rubber Hybrid Hose |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BVX | Standard swivel with Viton |
| -BEX | Standard swivel with EPR |
| -BAX | Stainless steel swivel with Nitrile |
| -BBX | Stainless steel swivel with Viton |
| -BCX | Stainless steel swivel with EPR |
| -BGX | BSP swivel with Nitrile |
| -BHX | BSP swivel with Viton |
| -BIX | BSP swivel with EPR |
| -BYX | Food grade Brass swivel |
| -BWX | Food grade stainless steel swivel |
| -BZX | Less swivel |
| -BLX | Stainless steel BSP swivel with Nitrile |
| -BMX | Stainless steel BSP swivel with Viton |
| -BNX | Stainless steel BSP swivel with EPR |
| Other | |
| -BXB | Bend Restrictor |
| -BXC | Constant Tension |
| -BXL | Air Tool Kit |
7
Where can I find product documents?
LG Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
How is this product sold?
Each.
