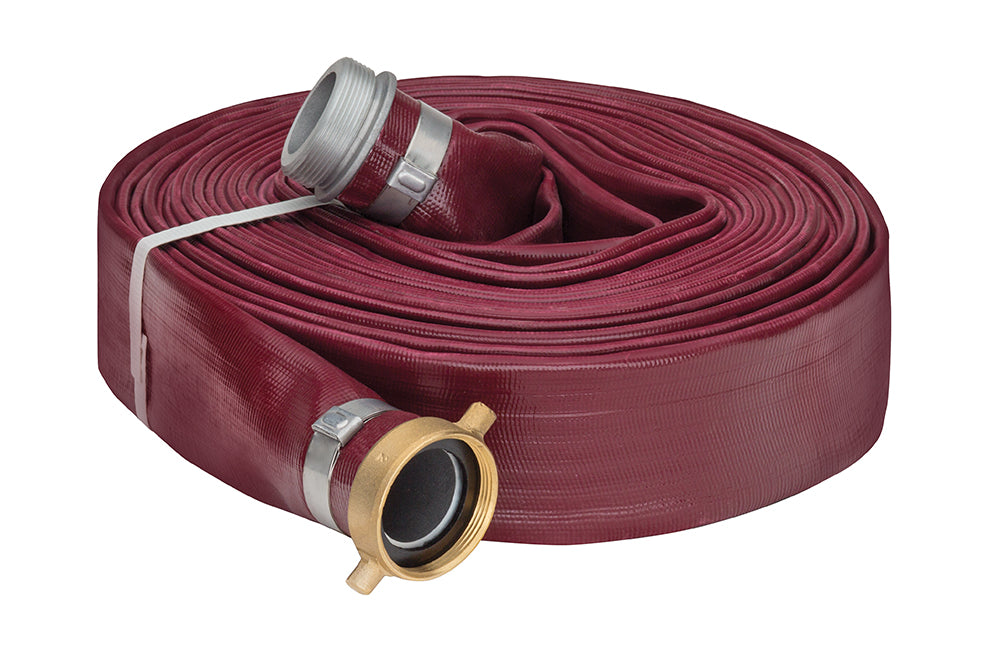

LFR300APLX50 by Kuriyama | LFR-APL Series | Layflat Hose Assembly | PVC | 3" Size | Red | Male x Female Pin Lug Couplings | Aluminum | 50ft Length
Kuriyama
LFR-APL Series | Layflat Hose Assembly | Male x Female Pin Lug Couplings
Designed for agriculture, construction, contractor, industrial, and rental applications.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $233.27 |
| 20–59 | $210.94 |
| 60+ | $186.12 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
MAWP:
125
Tubing Construction:
Cover Construction:
Material(s):
SPECIFICATIONS
| Applications: | Agriculture Construction Contractor Industrial Rental |
||
|---|---|---|---|
| Construction: | Spiral homogeneous PVC construction is ideal for irrigation and agriculture applications, and provides for minimal elongation. | ||
| Service Temperature Range: | -10°F (-12°C) to +140°F (+60°C) | ||
| Other Features: | |||
|
|||
| Part Number Male x Female Pin Lug Couplings 50ft |
Part Number Male x Female Camlock Couplings 50ft |
Size | Wall Thickness |
Working Pressure (PSI) |
|
|---|---|---|---|---|---|
| (in) | (mm) | (in) | at 68°F | ||
| LFR150APLX50 | LFR150ACEX50 | 1-1/2" | 38.1mm | 0.079" | 140 |
| LFR200APLX50 | LFR200ACEX50 | 2" | 50.8mm | 0.079" | 128 |
| LFR300APLX50 | LFR300ACEX50 | 3" | 76.2mm | 0.098" | 125 |
| LFR400APLX50 | LFR400ACEX50 | 4" | 101.6mm | 0.110" | 125 |
