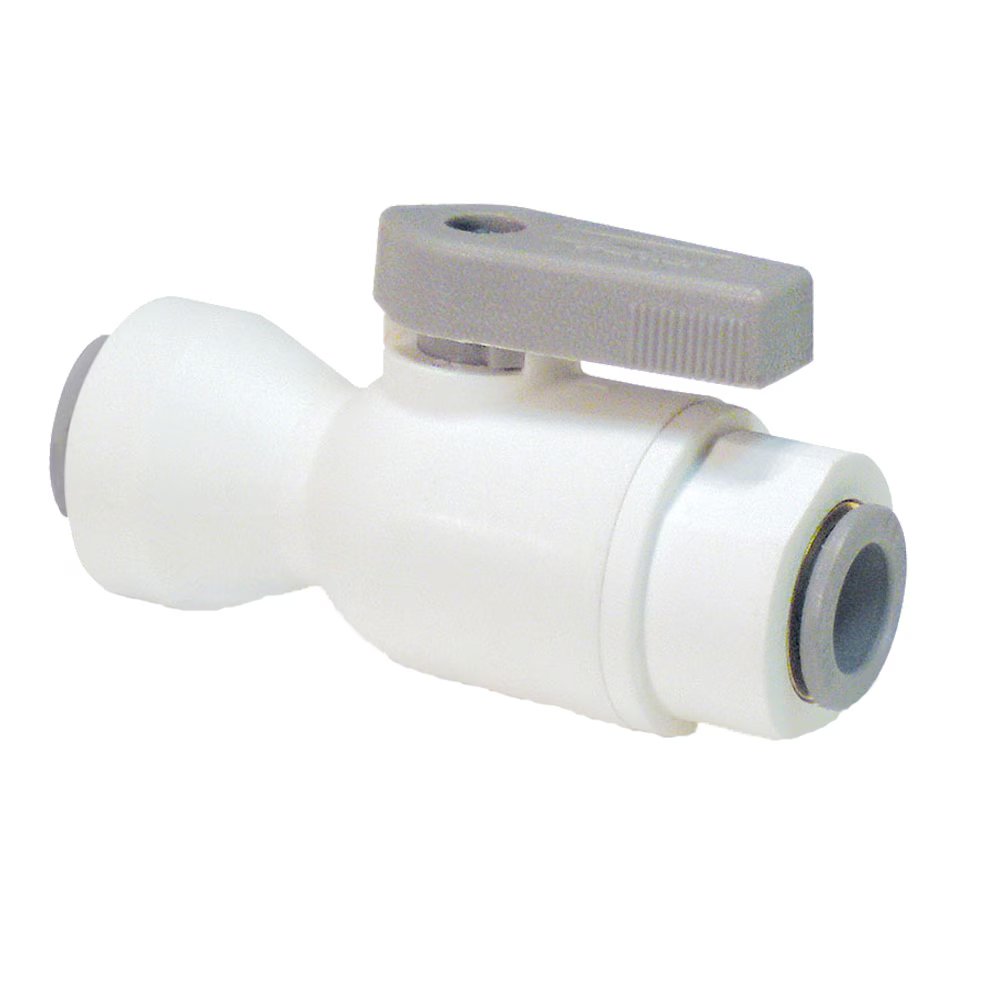

LFPP8MVUC8M by Parker | LIQUIfit® Ball Valve | 8 mm Push-to-Connect x 8 mm Push-to-Connect | 2.35" Length | Straight | Polypropylene

LFPP8MVUC8M by Parker | LIQUIfit® Ball Valve | 8 mm Push-to-Connect x 8 mm Push-to-Connect | 2.35" Length | Straight | Polypropylene

Sale price$15.23

by Parker Hannifin
Ball Valves Polypropylene:VUC - Valve Union Connector Metric
Buy More, Save More!
Quantity Price Each
20–39 $14.32
40–79 $12.95
80+ $11.42
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LIQUIfit®
Series:
  • VUC Series
Shape:

Straight
Product Features:
  • Wide chemical acceptance range
  • Bi-directional flow maximizes productivity
  • Full flow reduces pressure drop across valve
  • EPDM Seals – LIQUIfit, TrueSeal, and Par-barb
  • Nitrile Seals – Fast and Tite
  • Push-in and barbed connections
  • Meets FDA and NSF/ANSI 51 requirements for food contact
  • LIQUIfit, Par-Barb, and TrueSeal meet NSF/ANSI 61 requirements
Advantages:
  • Reduce costs – Built in LIQUIfit, TrueSeal and Par-Barb connections eliminates the need for a secondary fitting.
  • Save Space – Low-profile design allows for easy assembly and access where space is a concern.
Type:
  • LFPP – LIQUIfit
  • PP – TrueSeal
  • PBPP – Par-Barb
  • FTPPB - Fast and Tite
Specification:
Temperature Range: 35° to +200° F (+1.7° to +93.3° C)
Pressure Range:
  • Up to 150 PSI (10.3 bar)
Part Number Tube Size 1 (mm) Tube Size 2 (mm) A (mm) B (mm) C (mm) D (mm) ØE Thru Hole Min (mm)
LFPP6MVUC6M 6 6 .57 .27 .36 .13 .19
LFPP8MVUC8M 8 8 .60 .27 .36 .13 .25
LFPP10MVUC10M 10 10 .70 .33 .36 .13 .33
LFPP12MVUC12M 12 12 .88 .43 .36 .13 .37

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
