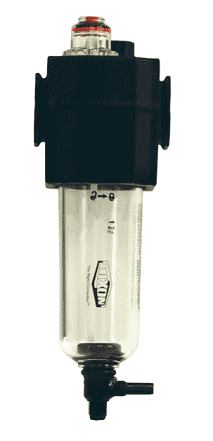

L73M-2 Dixon Valve Series 1 Micro-Fog Lubricators - 1/4" Compact with Transparent Bowl - 70 SCFM
Dixon

L73M-2 Dixon Valve Series 1 Micro-Fog Lubricators - 1/4" Compact with Transparent Bowl - 70 SCFM

Sale price$160.08

Series 1 Micro-Fog Lubricators - Compact Norgren Cross Over Part Number: L73M2APQTN On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.

Product Data:
Applications:
  • Micro-fog lubricators, identified by a red adjusting screw, are used for applications containing one or more points of lubrication, cylinders and multiple or single tools.
  • Air flow through the lubricator lifts oil from the reservoir to the sight-feed dome. Oil is dropped into the fog generator and atomized into a fine mist. Lightweight particles are delivered downstream for lubrication. Heavier particles fall back into the reservoir.
  • The micro-fog lubricator delivers 10% of the oil drops visible through the transparent sight-feed dome.
  • Micro-fog lubricators cannot be filled under pressure.
Features:
  • 4 oz. reservoir.
  • In-line or modular installation.
  • Quick release bayonet bowl.
  • Micro-fog design delivers aerosol mist.
  • Recommended lubricants: misting type oil rated 50 to 200 SSU (ISO Grade 7 to 46) at 100 deg. F.
  • Maximum operating conditions: Transparent bowl: 150 PSI and 125 deg. F. Metal bowl: 250 PSI and 175 deg.F.
Part Number Port Size Description SCFM Max PSI Min/Max Temp Weight (Lbs.)
L73M-2 1/4" Transparent Bowl 70 150 (10.20 bar) 0 deg. F / 125 deg. F (-17.78 deg. C / 51.67 deg. C) 1.1000
L73M-3 3/8" Transparent Bowl 70 150 (10.20 bar) 0 deg. F / 125 deg. F (-17.78 deg. C / 51.67 deg. C) 1.0800
L73M-4 1/2" Transparent Bowl 70 150 (10.20 bar) 0 deg. F / 125 deg. F (-17.78 deg. C / 51.67 deg. C) 1.0600
L73M-2MB 1/4" Metal Bowl 70 250 (17.01 bar) 0 deg. F / 175 deg. F (-17.78 deg. C / 79.44 deg. C) 1.2700
L73M-3MB 3/8" Metal Bowl 70 250 (17.01 bar) 0 deg. F / 175 deg. F (-17.78 deg. C / 79.44 deg. C) 1.2700
L73M-4MB 1/2" Metal Bowl 70 250 (17.01 bar) 0 deg. F / 175 deg. F (-17.78 deg. C / 79.44 deg. C) 1.2500

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
