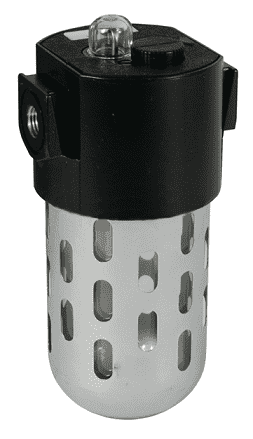

L26-02A Dixon Valve Wilkerson 1/4" EconOmist Standard Lubricator with Transparent Bowl - 35 SCFM
Dixon

L26-02A Dixon Valve Wilkerson 1/4" EconOmist Standard Lubricator with Transparent Bowl - 35 SCFM

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • 10 oz. bowl.
  • Adjustable oil feed.
  • Can be filled under pressure.
  • Quick-disconnect metal bowl guard with integral safety latch.
  • Siphon tube filter provides clean lubricant downstream.
  • The rate of oil delivery may be controlled by turning the adjusting screw counter clockwise for more and clockwise for less oil delivery. If flow increases or decreases, the oil delivery rate will increase or decrease proportionally.
Part Number Size SCFM PSI Min/Max Temp Weight (Lbs.)
With Transparent Bowl
L26-02A 1/4" 35 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 2.1535
L26-03A 3/8" 60 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 2.3500
L26-04A 1/2" 128 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 2.2700
With Metal Bowl
L26-02AMB 1/4" 35 200 (13.61 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 3.0310
L26-03AMB 3/8" 60 200 (13.61 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 2.7450
L26-04AMB 1/2" 128 200 (13.61 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 2.9600

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
