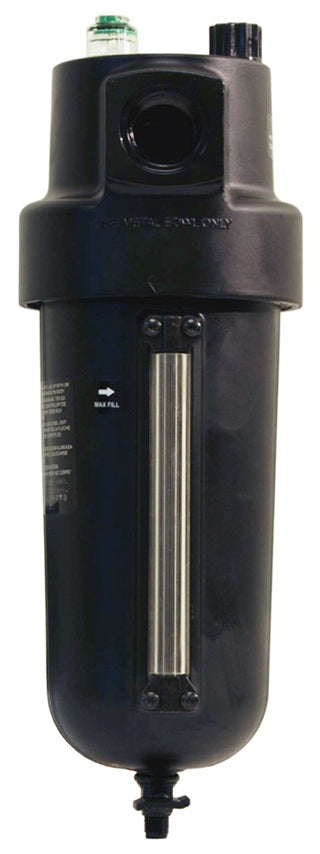

L17-800D by Dixon Valve | L17 Series 1 | Jumbo Oil-Fog Lubricator | 1" Port Size | 275 SCFM | 1 qt Metal Bowl with Sight Glass

L17-800D by Dixon Valve | L17 Series 1 | Jumbo Oil-Fog Lubricator | 1" Port Size | 275 SCFM | 1 qt Metal Bowl with Sight Glass

Sale price$329.76

Dixon Valve
L17 Series 1 | Standard Oil-Fog Lubricator

Oil-fog lubricators, identified by a green adjusting screw, are used for lubricating a single air tool or air motor and should be installed as close to the device as possible.

- 1 qt. reservoir
- Oil level sight gauge
Buy More, Save More!
Quantity Price Each
5–14 $309.97
15–29 $280.30
30+ $263.81
Discounts applied in cart/checkout.
Features:
  • 1 qt. reservoir.
  • Oil level sight gauge.
  • All the oil visible dropping through the transparent sight-feed dome goes to the airstream.
  • One-turn threaded bowl attachment permits easy maintenance.
  • Cannot be filled under pressure.
Specifications:
  • Inlet pressure: 250 PSI
  • Maximum temperature: 175°F(79°C)
  • SCFM ratings at 90 PSIG inlet pressure
Dimensions:
Metal Bowl with Sight Glass
Part Number		 Port Size Flow (SCFM)
L17-600D 3/4" 160 SCFM
L17-800D 1" 275 SCFM
L17-B00D 1-1/2" 275 SCFM

Product Data:

Series:
  • L17 Series 1
