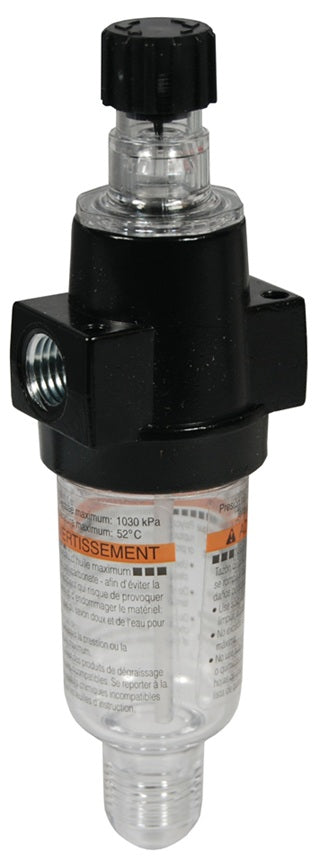

L03-02A Wilkerson by Dixon Valve | L03-Series | Miniature Lubricator | 1/4" Size | 20 SCFM | 1 oz. Transparent Bowl

L03-02A Wilkerson by Dixon Valve | L03-Series | Miniature Lubricator | 1/4" Size | 20 SCFM | 1 oz. Transparent Bowl

Sale price$79.18
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • 1 oz. bowl
  • 5 micron element
  • .4 oz. bowl
  • Self-relieving
  • Supplied with a 0-160 PSI flush mount style gauge
Specifications:
  • Maximum operating conditions:
    • Transparent Bowl: 150 PSIG (10.3 bar) and 32°F to 125°F (0°C to 52°C)
    • Metal Bowl: 250 PSIG (17.2 bar) and 32°F to 175°F (0°C to 80°C)
  • SCFM ratings at 90 PSIG inlet pressure.
Dimensions:
Transparent Bowl Metal Bowl Size Flow (SCFM)
L03-01A L03-01AMB 1/8" 20
L03-02A L03-02AMB 1/4" 20

Additional Product Data:

Brand:
  • Wilkerson
Series:
  • L03 Series
Special Properties:
  • Mini/Micro Size
