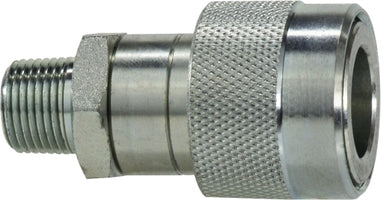

KZEB14SM by Midland | Hydraulic Quick Disconnect | Thread Lock Hydraulic Jack Coupler | 1/4" Body Size | 1/4" Male NPT | Steel
Buy more, save moreDiscounts applied in cart/checkout.
| Features: | |||
|---|---|---|---|
|
| Thread Lock Hydraulic Jack Male Coupler | Thread Lock Hydraulic Jack Female Plug | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
||||||||||||||||
 |
 |
||||||||||||||||
| Part Number | Body Size |
Male NPT |
LS | D | Hex | A | Rated Pressure |
Rated Flow |
Part Number | Body Size |
Female NPT |
LP | D | Hex | A | Rated Pressure |
Rated Flow |
| KZEB14SM (KZE-B-14-SM) |
1/4" | 1/4" | 2.40" | 1.14" | 0.87" | 0.55" | 10,000 PSI | 3 GPM | KZEB14PF (KZE-B-14-PF) |
1/4" | 1/4" | 1.30" | 0.44" | 0.75" | 0.51" | 10,000 PSI | 3 GPM |
| KZEB38SM (KZE-B-38-SM) |
3/8" | 3/8" | 2.91" | - | 0.98" | 0.57" | 10,000 PSI | 6 GPM | KZEB38PF (KZE-B-38-PF) |
3/8" | 3/8" | 1.38" | 0.63" | 1.26" | 0.55" | 10,000 PSI | 6 GPM |
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
