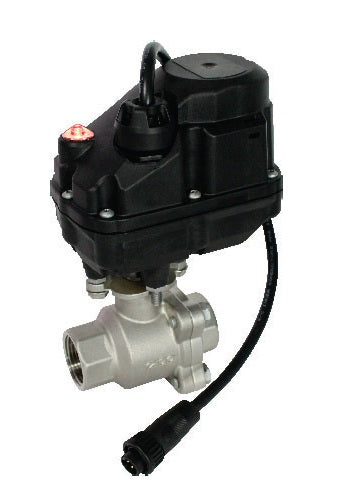

KZ-S8F33-1CE9S-D01 KZ Valve by Banjo | Anhydrous Ammonia (NH3) Actuated Valve with Integrated Deutsch Receptacle | 1" Female NPT | Control Type: ON/OFF | Stainless Steel

KZ-S8F33-1CE9S-D01 KZ Valve by Banjo | Anhydrous Ammonia (NH3) Actuated Valve with Integrated Deutsch Receptacle | 1" Female NPT | Control Type: ON/OFF | Stainless Steel

Minimum Order Quantity: 5 Units

Sale price$470.65
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Waterproof, rated NEMA 6P and IP68M.
  • LED device diagnostics on EH8 and EH9.
  • Durable, glass filled nylon housing.
  • Ignition safe, rated NEMA 7D.
  • 316 stainless steel stem with EPDM O-rings and PTFE packing.
  • Conxall and Deutsch connections available. WeatherPak harness available separately.
  • CF8M stainless steel valve body.
Part Number Actuator Series Female NPT Size Control Type Feedback Cycle Time CV
KZ-S8C28-1CEBS-D01 EH8 3/8" ON/OFF (+) @ CLOSED 0.2 SEC 5.2
KZ-67D33-1CE9S-D01 EH9 1/2" (FP) ON/OFF (+) @ CLOSED 0.7 SEC 15
KZ-S8F33-1CE9S-D01 EH9 1" (FP) ON/OFF (+) @ CLOSED 0.7 SEC 68

Additional Product Data:

Brand:
  • KZ Valve
Ends Configuration:
  • 1in Female NPT
  • 1in Female NPT
  • Some Ends Match
Material(s):
  • Stainless Steel

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
