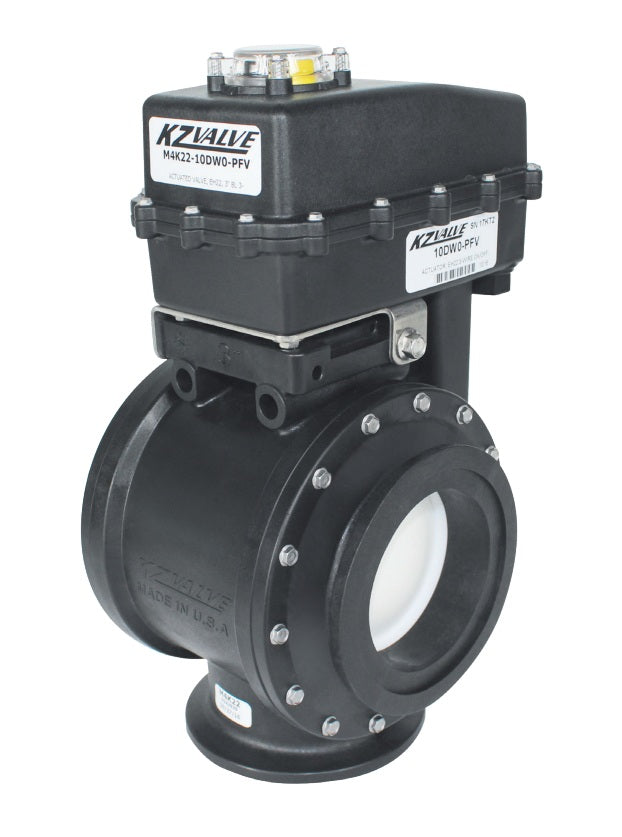

KZ-M4K22-10DW0-PFV KZ Valve by Banjo | TRU-TORQUE Series | Polypropylene Electric Valve | M300, Bottom Load | Control Type: ON/OFF/ON

KZ-M4K22-10DW0-PFV KZ Valve by Banjo | TRU-TORQUE Series | Polypropylene Electric Valve | M300, Bottom Load | Control Type: ON/OFF/ON

Minimum Order Quantity: 5 Units

Sale price$1,037.45

Banjo® Liquid Handling Products
KZ Valve | TRU-TORQUE Series | Polypropylene Electric Valve
Buy More, Save More!
Quantity Price Each
4–7 $975.20
8–14 $933.71
15+ $829.96
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KZ Valve
Series:
  • TRU-TORQUE
Material(s):
  • Polypropylene
Features:
  • Mounting bosses are molded into the valve body which reduces mounting time and maintains undisturbed torque specifications of the ball and end caps, a common problem for plastic, bolted ball valves.
  • Waterproof nylon actuator case is IP68, NEMA 6P, and NEMA 7D rated for long life and lower cost of service.
  • Designed flows for 180° rotation On/Off/On with no mixing or On/On with no mixing.
Materials:
  • Valve body: Polypropylene, EPDM O-rings
  • Ball: Polypropylene
  • Stem: 316 stainless steel
  • Valve seat: Virgin PTFE with EPDM back-up O-rings
  • Stem seal: Dual Viton™ O-rings
Part Number Description Control Type Cycle Time
KZ-M4K22-10DW0-PFV EH2, M300, Bottom Load ON/OFF/ON 6 Sec
KZ-T2H22-10EYS-PF1 EH2, M200, Stainless Steel Ball ON/OFF 1.5 Sec

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
