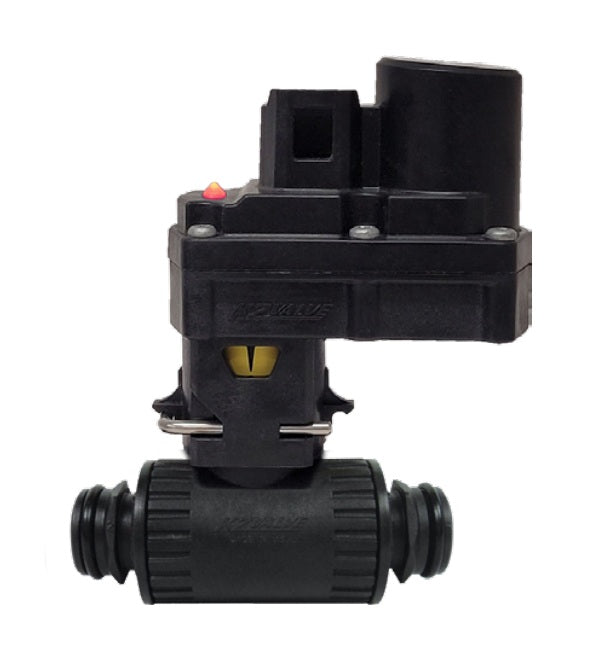

KZ-H2D37-10DK0-P01 KZ Valve by Banjo | TX2 Series | Polypropylene Electric Valve | 1/2" Size | Quick Disconnect Ends | Control Type: ON/OFF

KZ-H2D37-10DK0-P01 KZ Valve by Banjo | TX2 Series | Polypropylene Electric Valve | 1/2" Size | Quick Disconnect Ends | Control Type: ON/OFF

Sale price$259.66
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Compact design weighing only 8 - 19 ounces, which allows for more options when mounting.
  • Valves are made for actuation with KZValve Waterproof EH6 & EH7 Actuators providing longer valve and actuator life.
  • EH6 Electric Actuator housing is rated NEMA 6P (waterproof) and 7D (explosion proof) per NEMA 250 EH7 Electric Actuator housing is rated NEMA 6P to protect internal components from corrosion and extends actuator life.
  • EH6 Electric Actuator housing meets the IP68M and IP69K per ISO 20653 and IEC 60529 EH7 Electric Actuator housing meets the IP68 rating of IEC 60529 & ISO 20653 standard degree of protection provided by enclosures against water intrusion.
Materials:
  • Valve body: Polypropylene, glass-filled
  • Ball: 316 stainless steel
  • Stem: 316 stainless steel
  • Valve seat: Carbon graphite filled PTFE with EPDM back-up O-rings
  • Stem seal: Viton™
Part Number Description Control Type Size Feedback Cycle Time
KZ-21CA9-1CEFS-D01 EH6, Male Quick Disconnect Ends ON/OFF 1/2" (+) @ Closed 0.5 Sec
KZ-G2D37-1CEFS-D01 EH6, M100 Flange x Quick Disconnect ON/OFF 1/2" (+) @ Closed 0.5 Sec
KZ-H2D37-10DK0-P01 EH6, Quick Disconnect Ends ON/OFF 1/2" (+) @ Closed 0.5 Sec
KZ-H2D37-1CEFS-D01 EH6, Quick Disconnect Ends ON/OFF 1/2" (+) @ Closed 0.5 Sec
KZ-H7D37-1CEFS-D01 EH6, Quick Disconnect Ends, Bottom Load ON/OFF 1/2" (+) @ Closed 0.5 Sec

Additional Product Data:

Brand:
  • KZ Valve
Series:
  • TX2 Series
Material(s):
  • Polypropylene

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
