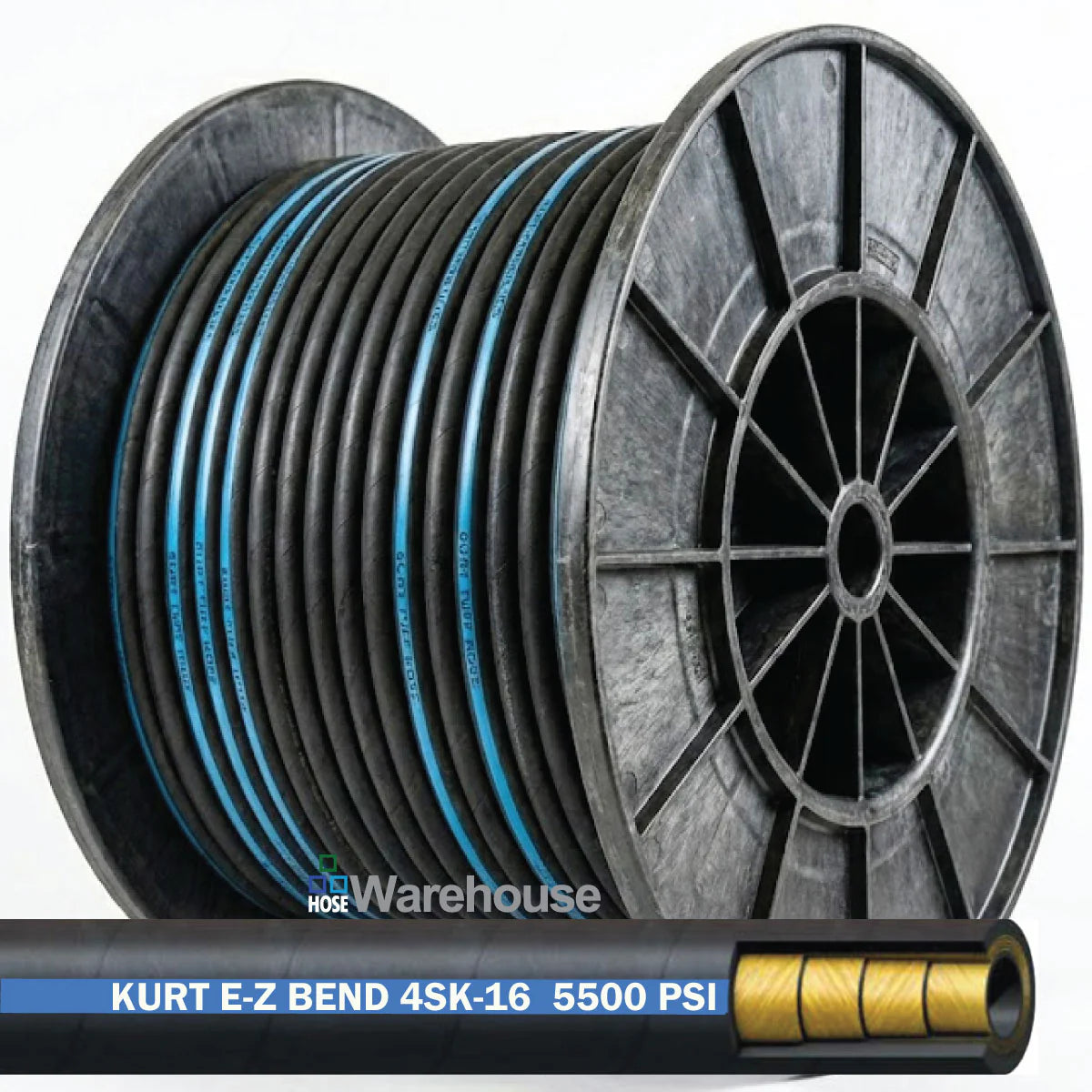

4SK-16 by Kurt Hydraulics | 4 Spiral High Pressure Hydraulic Hose | 5500 PSI | 1" I.D. | 200ft Reel
by Kurt Hydraulics
4 Spiral High Pressure Hydraulic Hose
Reel length may very, underages will be refunded to the customer.
Package Quantity: 200 FT
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Hose Properties: | |||
|---|---|---|---|
| Recommended for: | High pressure hydraulic oil lines | Tube: | Oil resistant synthetic rubber |
| Temperature Range: | -40°F to +212°F | Reinforcement: | Four spiral layers of high tensile steel wire braid |
| Other Qualifications: | Meets flame resistant MSHA designation | Cover: | Abrasion, ozone and weather resistant synthetic rubber |
| Part Number | Hose I.D. | Hose O.D. | Rated W.P. (psi) |
Min. Burst (psi) |
Min. Bend (in) |
Coupling Series |
|---|---|---|---|---|---|---|
| 4SK-10 | 5/8" | 1.07" | 6,000 | 24,000 | 4.00" | W |
| 4SK-12 | 3/4" | 1.27" | 6,000 | 24,000 | 4.7" | W, WHP |
| 4SK-16 | 1" | 1.52" | 5,500 | 22,000 | 5.9" | W, WHP |
| 4SK-20 | 1-1/4" | 1.79" | 5,000 | 20,000 | 9" | W |
Industries: Agriculture, Construction, Industrial, Logging, Marine, Mining, Mobile Equipment, Oil & Gas
