KT4B046-010 by Band-It | KT Standard Tie | 0.18" Width | 3.9" Length | 0.010" Thickness | Polyester/Epoxy Coated | 304 Stainless Steel | 100/Bag
Minimum Order Quantity: 25 Units
Package Quantity: 100 EA
Buy more, save moreDiscounts applied in cart/checkout.

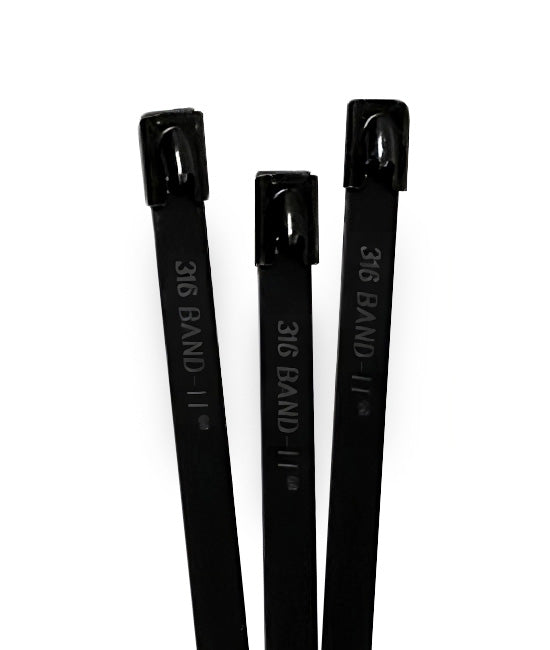

BAND-IT® KT Standard Tie — Polyester/Epoxy Coated
What are the main product features?
- Fold over design.
- Manufactured in BAND-IT global sites and UL Certified.
- Available in both 304 and 316 Stainless Steel to provide good to excellent corrosion resistance in a wide variety of environments.
- Self locking design allows fast installation.
- Install with tools to ensure uniform tension and clean tail cut-off for safe handling.
- 30% Polyester and 70% Epoxy coating which reduces the risk of cutting or abrading cable insulation or hose covering.
Which application tools are compatible?
- The two hand tools recommended for this application manually tension and cut-off the tail of the band and can be used on coated or uncoated ties.
- K50289 - quickly and easily with the lightweight, portable Ball-Lok tool with adjustable tension
- XE9229 - Multi-Lok ties up to 12mm wide regardless of material or coating
- The XE9229 tool is known as KE9229 outside of North America
Which sizes are available?
| Part Number 304 Stainless Steel Coated | Part Number 316 Stainless Steel Coated | Width | Length | Base Material Thickness | Maximum Bundle Diameter | Minimum Loop Tensile Strength (Lbs) | Package Quantity |
|---|---|---|---|---|---|---|---|
| KT4B046-010 | KT6B046-010 | 0.18" | 3.9" | 0.010" | 0.7" | 140 lbs | 100/Bag |
| KT4B046-015 | KT6B046-015 | 0.18" | 5.9" | 0.010" | 1.4" | 140 lbs | 100/Bag |
| KT4B046-020 | KT6B046-020 | 0.18" | 7.9" | 0.010" | 2.0" | 140 lbs | 100/Bag |
| KT4B046-025 | KT6B046-025 | 0.18" | 9.8" | 0.010" | 2.6" | 140 lbs | 100/Bag |
| KT4B046-030 | KT6B046-030 | 0.18" | 11.8" | 0.010" | 3.3" | 140 lbs | 100/Bag |
| KT4B046-035 | KT6B046-035 | 0.18" | 13.8" | 0.010" | 3.9" | 140 lbs | 100/Bag |
| KT4B046-040 | KT6B046-040 | 0.18" | 15.7" | 0.010" | 4.5" | 140 lbs | 100/Bag |
| KT4B046-045 | KT6B046-045 | 0.18" | 17.7" | 0.010" | 5.2" | 140 lbs | 100/Bag |
| KT4B046-050 | KT6B046-050 | 0.18" | 19.7" | 0.010" | 5.8" | 140 lbs | 100/Bag |
| — | KT6B046-060 | 0.18" | 23.6" | 0.010" | 7.0" | 140 lbs | 100/Bag |
| — | KT6B046-080 | 0.18" | 31.4" | 0.010" | 9.5" | 140 lbs | 100/Bag |
| KT4B078-015 | KT6B078-015 | 0.31" | 5.9" | 0.010" | 1.4" | 160 lbs | 100/Bag |
| KT4B078-020 | KT6B078-020 | 0.31" | 7.9" | 0.010" | 2.0" | 160 lbs | 100/Bag |
| KT4B078-025 | KT6B078-025 | 0.31" | 9.8" | 0.010" | 2.6" | 160 lbs | 100/Bag |
| KT4B078-030 | KT6B078-030 | 0.31" | 11.8" | 0.010" | 3.3" | 160 lbs | 100/Bag |
| KT4B078-035 | KT6B078-035 | 0.31" | 13.8" | 0.010" | 3.9" | 160 lbs | 100/Bag |
| KT4B078-040 | KT6B078-040 | 0.31" | 15.7" | 0.010" | 4.5" | 160 lbs | 100/Bag |
| KT4B078-045 | KT6B078-045 | 0.31" | 17.7" | 0.010" | 5.1" | 160 lbs | 100/Bag |
| KT4B078-050 | KT6B078-050 | 0.31" | 19.7" | 0.010" | 5.8" | 160 lbs | 100/Bag |
| KT4B078-055 | KT6B078-055 | 0.31" | 21.6" | 0.010" | 6.4" | 160 lbs | 100/Bag |
| KT4B078-060 | KT6B078-060 | 0.31" | 23.6" | 0.010" | 7.0" | 160 lbs | 100/Bag |
| — | KT6B078-065 | 0.31" | 25.6" | 0.010" | 7.6" | 160 lbs | 100/Bag |
| — | KT6B078-070 | 0.31" | 27.6" | 0.010" | 8.3" | 160 lbs | 100/Bag |
| — | KT6B078-080 | 0.31" | 31.4" | 0.010" | 9.5" | 160 lbs | 100/Bag |
| KT4B078-090 | — | 0.31" | 35.4" | 0.010" | 10.8" | 160 lbs | 100/Bag |
| KT4B078-100 | KT6B078-100 | 0.31" | 39.4" | 0.010" | 12.0" | 160 lbs | 100/Bag |
| KT4B078-140 | — | 0.31" | 55.1" | 0.010" | 17.1" | 160 lbs | 100/Bag |
| KT4B078-150 | — | 0.31" | 59.0" | 0.010" | 18.3" | 160 lbs | 100/Bag |
Additional Product Data:
Series:
Material(s):
Special Properties:
Clamp Thickness:
0.01"
Clamp Width:
0.18"
Tie Length:
3.9"
Maximum Clamp I.D.:
0.7"
