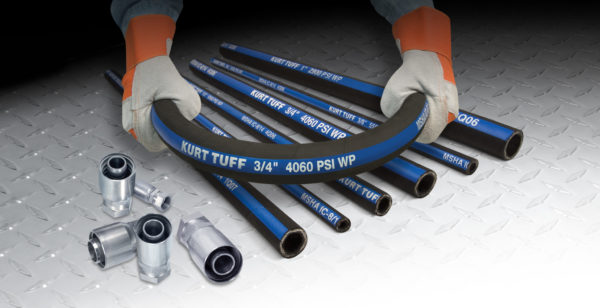

KT-10-Reel by Kurt | Hydraulics | Tuff One Million Cycle | Hydraulic Hose | 520' Reel Length
by Kurt Hydraulics
KURT TUFF Hydraulic Hose
Kurt Fittings and Hose should only be used together.
Package Quantity: 520 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $2,465.70 |
| 4–9 | $2,360.78 |
| 10+ | $2,098.47 |
Discounts applied in cart/checkout.
Product Data:
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
4205
Tubing Construction:
Cover Construction:
| Part Number | Hose I.D. (In) |
Hose O.D. (In) |
Rated W.P. (PSI) |
Min. Burst (PSI) |
Min. Bend (In) |
|---|---|---|---|---|---|
| KT-04-Reel | 1/4" | 0.58" | 6530 | 26120 | 1.8" |
| KT-06-Reel | 3/8" | 0.69" | 5585 | 22340 | 2.8" |
| KT-08-Reel | 1/2" | 0.81" | 1000 | 20000 | 3.5" |
| KT-10-Reel | 5/8" | 0.93" | 4205 | 16820 | 5.1" |
| KT-12-Reel | 3/4" | 1.09" | 4060 | 16240 | 6.3" |
| KT-16-Reel | 1" | 1.40" | 2900 | 11600 | 8.25" |
