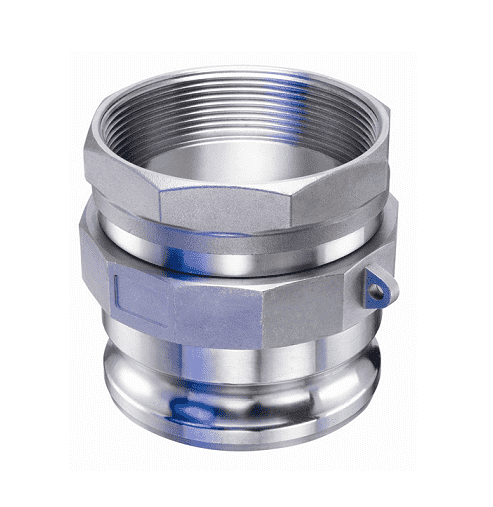

KSS-E501 by Kuriyama | Quick-Acting Swivel Coupling | Type A | 5" Male Adapter x 5" Female NPT Swivel | 304 Stainless Steel

KSS-E501 by Kuriyama | Quick-Acting Swivel Coupling | Type A | 5" Male Adapter x 5" Female NPT Swivel | 304 Stainless Steel

Sale price$388.74

Kuriyama Couplings™ - Quick-Acting Swivel Couplings - 304 Stainless Steel Male Adapter x 304 Stainless Steel Female NPT Swivel

Buy More, Save More!
Quantity Price Each
5–14 $365.42
15–29 $330.43
30+ $291.56
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type A

Ends Configuration:
  • 5in Male Cam & Groove
  • 5in Female NPT
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Stainless steel alloy chemical composition is analyzed on every melt.
  • Composition test certificate is available upon request.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM A666 304 stainless steel alloy.
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • Buna-N Gaskets
Part Number Male Adapter Female NPT Swivel Weight (Lbs.)
KSS-E401 4" 4" 6.12 lbs
KSS-E501 5" 5" 7.61 lbs
KSS-E601 6" 6" 11.07 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
