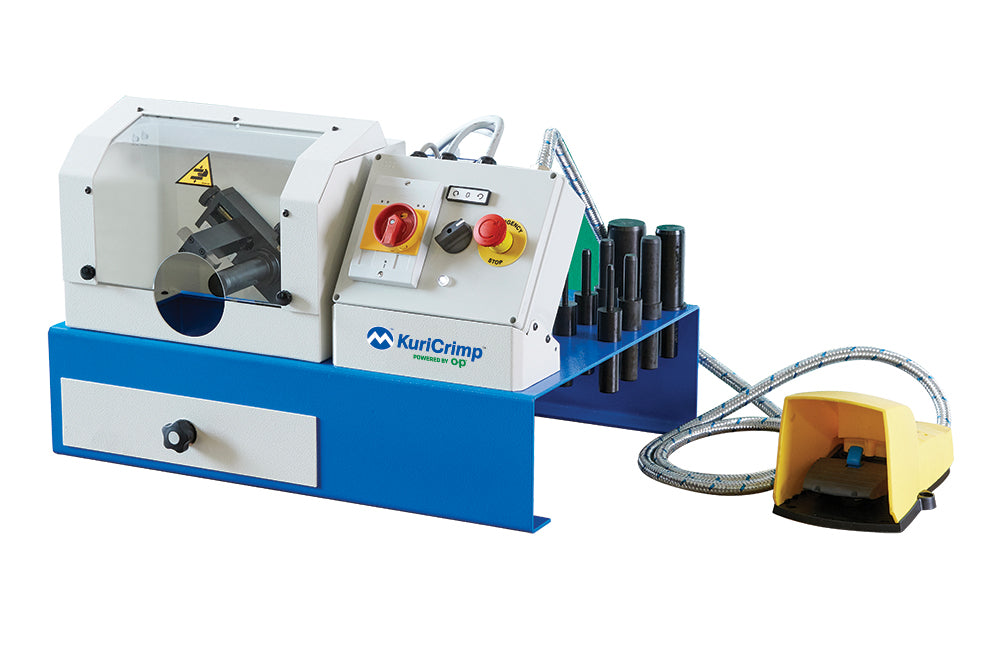

KSKIVE2 KuriCrimp™ by Kuriyama | Electric Skive Tool | For Internal & External Skiving of Hydraulic Hoses up to 2"

KSKIVE2 KuriCrimp™ by Kuriyama | Electric Skive Tool | For Internal & External Skiving of Hydraulic Hoses up to 2"

Sale price$4,775.26

Kuriyama of America Inc.
KuriCrimp™ | Electric Skive Tool

For Internal & External Skiving of Hydraulic Hoses up to 2".
Buy More, Save More!
Quantity Price Each
2–3 $4,488.74
4–9 $4,297.73
10+ $3,820.21
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KuriCrimp
Compatible Series:
  • KS-ESMAND Series, KS-ISMAND Series
About:
  • This device allows internal and external skiving of hydraulic hoses up to a 2" diameter.
  • KSKIVE2 is provided with a fixed tool-holder spindle with only one cutter provided on which is a millimetric ruler which allows setting the skiving distance. Thus, replacement of the pin and adjustment of position of the tool according to the diameter of the hose to be skived is required.
  • Perfect device for outdoor assistance.
Features:
  • Weight: 110 (lbs).
  • Pedal-equipped electric control.
  • Tool-holder.
  • Drawer for shavings.
Hose Capacity:
  • Internal Skiving: 2 in
  • External Skiving: 2 in
Skiver Size:
  • Length: 26.6 in
  • Width: 21.1 in
  • Height: 17.2 in
  • Weight: 110 lb
Motor:
  • Motor Info: 1.0 HP (230 V) 1 PH 300 RPM
  • Voltage: 230 V
  • Phase: Single
  • Speed: 300 rpm
  • Power: 1 hp
Included Accessories:
  • Electric Foot Pedal
  • Shavings Drawer
Part Number Capacity Motor Weight
KSKIVE2 For Internal & External Skiving of Hydraulic Hoses up to 2" 1.0 HP (230 V) 1 PH 300 RPM 110 (lbs)

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
