KSKIVE1 KuriCrimp™ by Kuriyama | Manual Skive Tool | For Internal & External Skiving of Hydraulic Hoses up to 2"

KSKIVE1 KuriCrimp™ by Kuriyama | Manual Skive Tool | For Internal & External Skiving of Hydraulic Hoses up to 2"

Sale price$2,126.22

Kuriyama of America Inc.

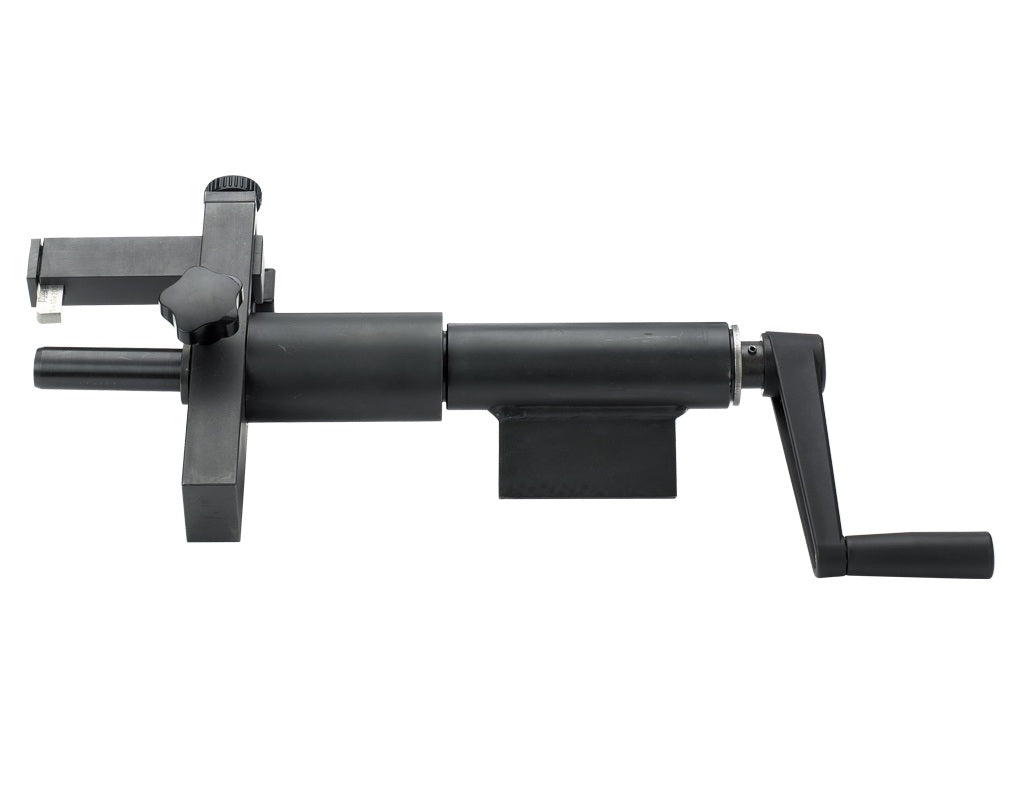

KuriCrimp™ | Manual Skive Tool

For Internal & External Skiving of Hydraulic Hoses up to 2".

A manually operated unit designed to fit in a vice. Its small size and light weight make it perfect for in shop or on site service. Tooling sold separately.
Buy More, Save More!
Quantity Price Each
4–7 $1,998.65
8–14 $1,913.60
15+ $1,700.98
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KuriCrimp
Compatible Series:
  • KS-ESMAND Series, KS-ISMAND Series
About:
  • KSKIVE1 is provided with a fixed tool-holder spindle with only one cutter provided on which is a millimetric ruler which allows setting the skiving distance. Thus, replacement of the pin and adjustment of position of the tool according to the diameter of the hose to be skived is required.
  • Light and easy to use, it is the perfect equipment for outdoor service.
  • Blade on orbital portion of tool can be adjusted to accommodate different sizes hoses, meaning only the internal mandrel must be changed.
  • Internal skive tools have cutting blade attached and must be changed out when switching between different sized hoses.
Features:
  • Weight: 15 (lbs).
Hose Capacity:
  • Internal Skiving: 2 in
  • External Skiving: 2 in
Skiver Size:
  • Length: 18.9 in
  • Width: 9.5 in
  • Height: 3.9 in
  • Weight: 15 lb
Part Number Capacity Weight
KSKIVE1 For Internal & External Skiving of Hydraulic Hoses up to 2" 15 (lbs)

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
