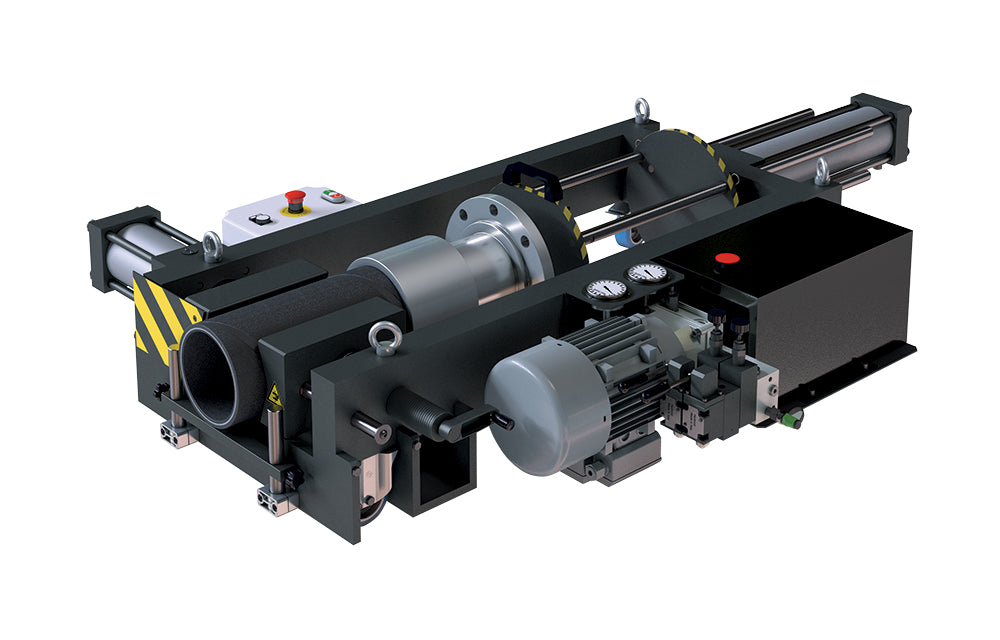

KPUSH22-CON KuriCrimp™ by Kuriyama | Concrete Hose Pusher | 8" Hose Capacity | 3 HP Motor
Kuriyama of America Inc.
KuriCrimp™ | Concrete Hose Pusher
Boasting 22,046 lbs of crimping force, the KPUSH22-CON is designed for difficult, heavy duty industrial hose such as concrete and petroleum hoses.
| Buy More, Save More! | |
| Quantity | Price Each |
| 3–5 | $21,863.06 |
| 6+ | $20,932.71 |
Discounts applied in cart/checkout.
Product Data:
Brand:
| Part Number | Hose Capacity(in) | Max Coupling OD(in) | Pneumatic Input(psi) | Pump Info | Motor Info | Pusher Size | |
|---|---|---|---|---|---|---|---|
| L x W x H(in) | Weight(lbs) | ||||||
| KPUSH8 | 8" | 16.7" | 8,818 | 100 PSI | - | 44.3 x 69.7 x 24.6 | 298 lbs |
| KPUSH22-CON | 8" | 16.7" | 22,046 | - | 3 HP | 49.2 x 71.9 x 13.8 | 992 lbs |
| Optional Accessories |
|---|
| Concrete Hose Mandrels | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Description | Hose ID (in) | |||||||
| PUSHMAN200 | Concrete Hose Mandrel | 2" | |||||||
| PUSHMAN250 | Concrete Hose Mandrel | 2-1/2" | |||||||
| PUSHMAN300 | Concrete Hose Mandrel | 3" | |||||||
| PUSHMAN400 | Concrete Hose Mandrel | 4" | |||||||
| PUSHMAN500 | Concrete Hose Mandrel | 5" | |||||||
| PUSHMAN600 | Concrete Hose Mandrel | 6" | |||||||
| Non-Slip Hose Jaws | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Description | Hose ID (in) | |||||||
| PUSHJAWS200 | Non-slip Hose Jaws | 2" | |||||||
| PUSHJAWS250 | Non-slip Hose Jaws | 2-1/2" | |||||||
| PUSHJAWS300 | Non-slip Hose Jaws | 3" | |||||||
| PUSHJAWS400 | Non-slip Hose Jaws | 4" | |||||||
| PUSHJAWS500 | Non-slip Hose Jaws | 5" | |||||||
| PUSHJAWS600 | Non-slip Hose Jaws | 6" | |||||||
