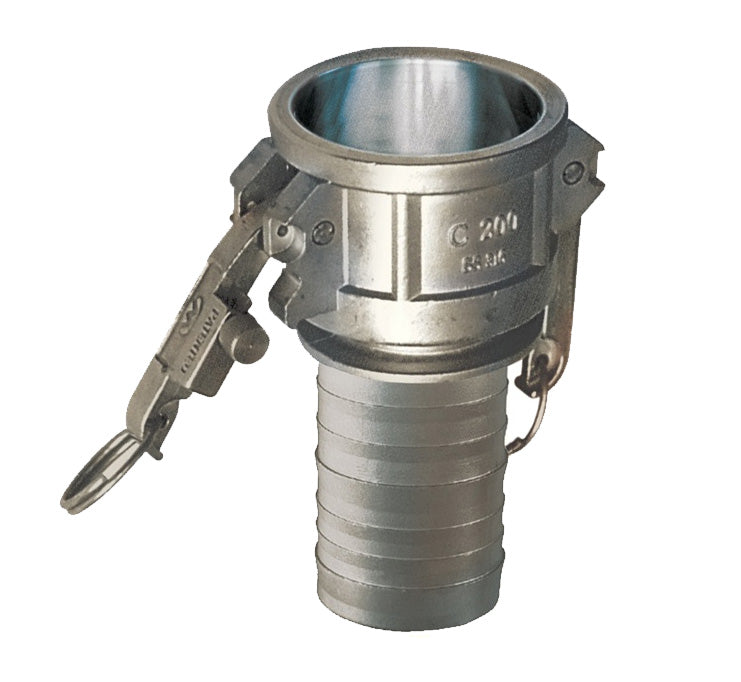

KLOC-SS-C300 by Kuriyama | KLOC-SS-C Series | Part C | K-Loc™ Auto Lock Quick Acting Cam & Groove Fitting | 3" Coupler x 3" Hose Barb | 316 Stainless Steel
Buy more, save moreDiscounts applied in cart/checkout.
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
- An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
- The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.
What are the Features?
- High quality design made for use in petroleum markets with bottom loading applications.
- Stainless steel alloy is analyzed on every melt, and specifically designed for high tensile strength and rigidity.
- Self-Locking handle provides maximum security and safety when connecting with male parts.
What are the Materials?
- ASTM stainless steel alloy, specially designed for high tensile strength and impact resistance.
- Complies with Mil-Spec A-A-59326 for interchangeability.
- 304 stainless steel handles, handle pins, pull rings, and safety clips.
- Buna-N gasket included.
| Part Number | Coupler Size (in) |
Hose Barb Size (in) |
PSI Rating at 70°F |
ASTM Specification | Weight Each (lbs) |
|---|---|---|---|---|---|
| KLOC-SS-C150 | 1-1/2" | 1-1/2" | 250 PSI | A666/316 | 1.87 lbs |
| KLOC-SS-C200 | 2" | 2" | 250 PSI | A666/316 | 2.80 lbs |
| KLOC-SS-C300 | 3" | 3" | 150 PSI | A666/316 | 5.22 lbs |
Additional Product Data:
Series:
MAWP:
150
Shape:
Straight
Cam & Groove Type:
Type C
Ends Configuration:
Material(s):
Seal Material(s):
