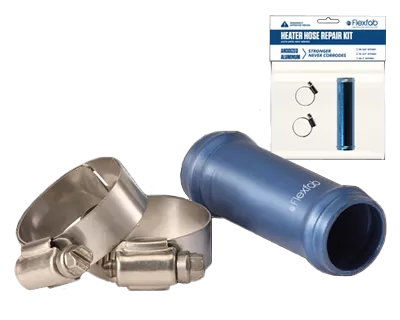

KIT5003D by FlexFab | Series 5001 | Heater Hose Repair Kit | 1.00" OD | 3" Overall Length
Buy more, save moreDiscounts applied in cart/checkout.
Silicone Heater Hose
Series 5001 Heater Hose Repair Kits
Reduce engine downtime and make quick repairs on the road. Each kit pairs an anodized aluminum beaded connector with a stainless steel lined worm gear clamp sized for Series 5526 heater hose.
1
What are the main product features?
- Quick repairs on the road — splice a damaged heater hose without replacing the full run.
- Reduces engine downtime
- Lasts until next service
- Corrosion resistant — anodized aluminum connector.
2
What are the key specifications?
Connector
Anodized aluminum; meets MIL-A8625
Bead Height
Per AS5131 (.047" – .087")
Clamp
300 grade stainless steel lined worm gear
Clamp Hex Head
5/16"
Clamp Band Width
9/16"
Connector Length
3" overall
3
Which kits are available?
| Part Number | Outside Diameter | Connector in Kit | Clamp in Kit | For Heater Hose |
|---|---|---|---|---|
| KIT5001D | 0.63" (16 mm) | DEA-36519-0625 | FLX2582-0008 | 5526-062 |
| KIT5002D | 0.75" (19 mm) | DEA-36519-0750 | FLX2582-0010 | 5526-075 |
| KIT5003D | 1.00" (25 mm) | DEA-36519-1000 | FLX2582-0016 | 5526-100 |
Specifications for reference only.
