KH-STOPFUVARIES Stopflex by Kuriyama | Hydraulic Hose Safety Retention System | Retention System for Various Use | Small Cutting Plate | M6 Size | 0.413" ID | 17.717" Length | Pack of 10
KH-STOPFUVARIES Stopflex by Kuriyama | Hydraulic Hose Safety Retention System | Retention System for Various Use | Small Cutting Plate | M6 Size | 0.413" ID | 17.717" Length | Pack of 10

KH-STOPFUVARIES Stopflex by Kuriyama | Hydraulic Hose Safety Retention System | Retention System for Various Use | Small Cutting Plate | M6 Size | 0.413" ID | 17.717" Length | Pack of 10

Sale price$288.63

Package Quantity: 10 Units

Buy more, save moreDiscounts applied in cart/checkout.
About:

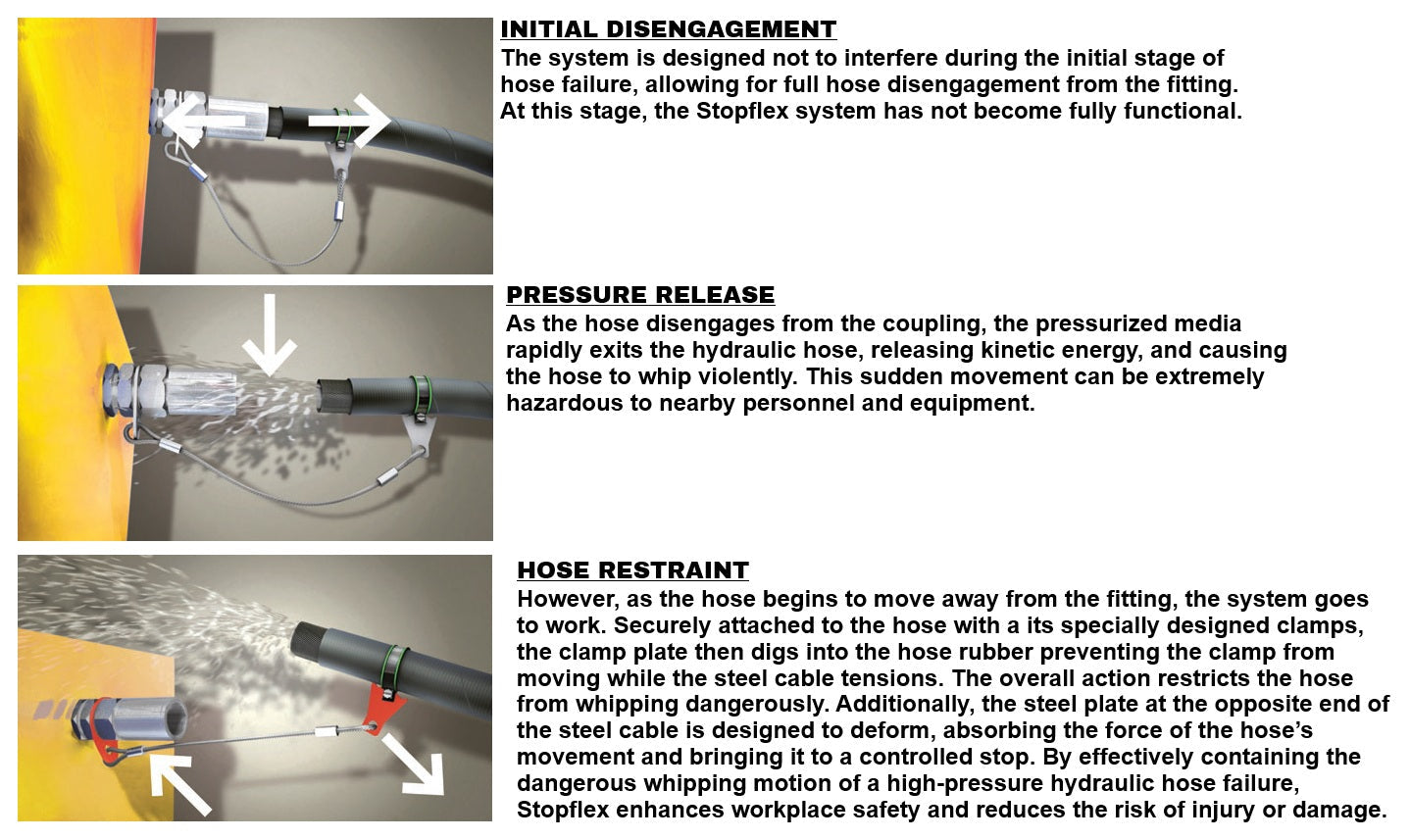

  • Hydraulic hoses contain enormous potential energy while in operation, resulting from their high operating pressures, which are often in the thousands of PSI.
  • During a hose failure this energy becomes kinetic, transforming the hose into a dangerous whip hazard, potentially resulting in serious injury.
  • The Stopflex system is designed to safely dissipate this pressure, and protect those in the vicinity from being struck during a hose failure.
Features:
  • Stopflex enhances workplace safety and reduces the risk of injury or damage.
  • Effectively contains the dangerous whipping motion of a high-pressure hydraulic hose failure.
Specifications:
  • Stopflex is rigorously tested and validated to withstand real hydraulic system pressures, making it one of the only retention solutions fully aligned with ISO 4413's safety mandates.
Part Number Ø M Ø (in) SP./TH (in) L (in) Maximum Operating Pressure Cutting Plate
KH-STOPFUVARIE M8 0.512" 0.157" 17.717" 6090 PSI LARGE
KH-STOPFUVARIES M6 0.413" 0.157" 17.717" 6090 PSI SMALL

Additional Product Data:

Brand:
  • Stopflex
Series:
  • KH-STOPFUVARIE Series
Specifications and Approvals:
  • ISO 4413

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
