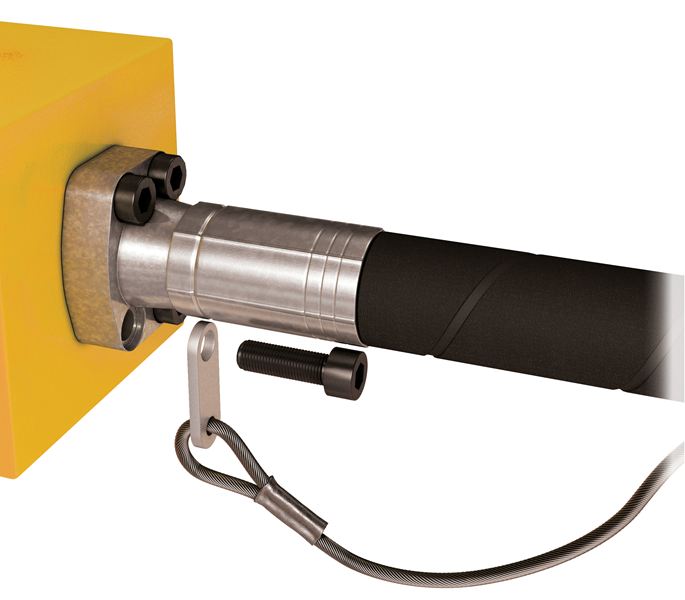

KH-STOPFUSAE25 Stopflex by Kuriyama | Hydraulic Hose Safety Retention System | Retention System for 300 & 600 SAE Code 61 & 62 Flanges | Large Cutting Plate | M8 Size | 0.984" ID | 21.654" Length | Pack of 10
KH-STOPFUSAE25 Stopflex by Kuriyama | Hydraulic Hose Safety Retention System | Retention System for 300 & 600 SAE Code 61 & 62 Flanges | Large Cutting Plate | M8 Size | 0.984" ID | 21.654" Length | Pack of 10

KH-STOPFUSAE25 Stopflex by Kuriyama | Hydraulic Hose Safety Retention System | Retention System for 300 & 600 SAE Code 61 & 62 Flanges | Large Cutting Plate | M8 Size | 0.984" ID | 21.654" Length | Pack of 10

Sale price$904.46

Kuriyama of America Inc.
Stopflex | Hydraulic Hose Safety Retention System | KH-STOPFUSAE | For 300 & 600 SAE Code 61 & 62 Flanges

The Stopflex system is designed to safely dissipate pressure during a hose failure, and protect those in the vicinity from being struck by hose whip.


Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $850.19
15–29 $768.79
30+ $678.35
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Stopflex
Series:
  • KH-STOPFUSAE Series
Specifications and Approvals:
  • ISO 4413
About:
  • Hydraulic hoses contain enormous potential energy while in operation, resulting from their high operating pressures, which are often in the thousands of PSI.
  • During a hose failure this energy becomes kinetic, transforming the hose into a dangerous whip hazard, potentially resulting in serious injury.
  • The Stopflex system is designed to safely dissipate this pressure, and protect those in the vicinity from being struck during a hose failure.
Features:
  • Stopflex enhances workplace safety and reduces the risk of injury or damage.
  • Effectively contains the dangerous whipping motion of a high-pressure hydraulic hose failure.
Specifications:
  • Stopflex is rigorously tested and validated to withstand real hydraulic system pressures, making it one of the only retention solutions fully aligned with ISO 4413's safety mandates.
Part Number Ø M Ø (in) SP./TH (in) L (in) Maximum Operating Pressure Cutting Plate
KH-STOPFUSAE085 M6 0.335" 0.157" 11.811" 6018 PSI SMALL
KH-STOPFUSAE2105 M6 0.413" 0.157" 11.811" 6090 PSI SMALL
KH-STOPFUSAE105 M8 0.492" 0.157" 17.717" 6090 PSI LARGE
KH-STOPFUSAE125 M8 0.492" 0.157" 17.717" 6090 PSI LARGE
KH-STOPFUSAE145 M6 0.571" 0.157" 17.717" 6090 PSI SMALL
KH-STOPFUSAE165 M8 0.650" 0.157" 17.717" 6090 PSI LARGE
KH-STOPFUSAE205 M8 0.807" 0.157" 17.717" 5075 PSI LARGE
KH-STOPFUSAE25 M8 0.984" 0.315" 21.654" 5075 PSI LARGE
KH-STOPFUSAE32 M8 1.260" 0.315" 21.654" 3045 PSI LARGE

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
