KH-STOPFUJIC275OP Stopflex by Kuriyama | Hydraulic Hose Safety Retention System | Nipple Retention System Open 24° Cone Connectors (JIC) | Small Cutting Plate | M6 Size | 1.083" ID | 11.811" Length | Pack of 10
KH-STOPFUJIC275OP Stopflex by Kuriyama | Hydraulic Hose Safety Retention System | Nipple Retention System Open 24° Cone Connectors (JIC) | Small Cutting Plate | M6 Size | 1.083" ID | 11.811" Length | Pack of 10

KH-STOPFUJIC275OP Stopflex by Kuriyama | Hydraulic Hose Safety Retention System | Nipple Retention System Open 24° Cone Connectors (JIC) | Small Cutting Plate | M6 Size | 1.083" ID | 11.811" Length | Pack of 10

Sale price$479.80

Kuriyama of America Inc.
Stopflex | Hydraulic Hose Safety Retention System | KH-STOPFUJIC-OP | Nipple Retention System Open 24° Cone Connectors (JIC)

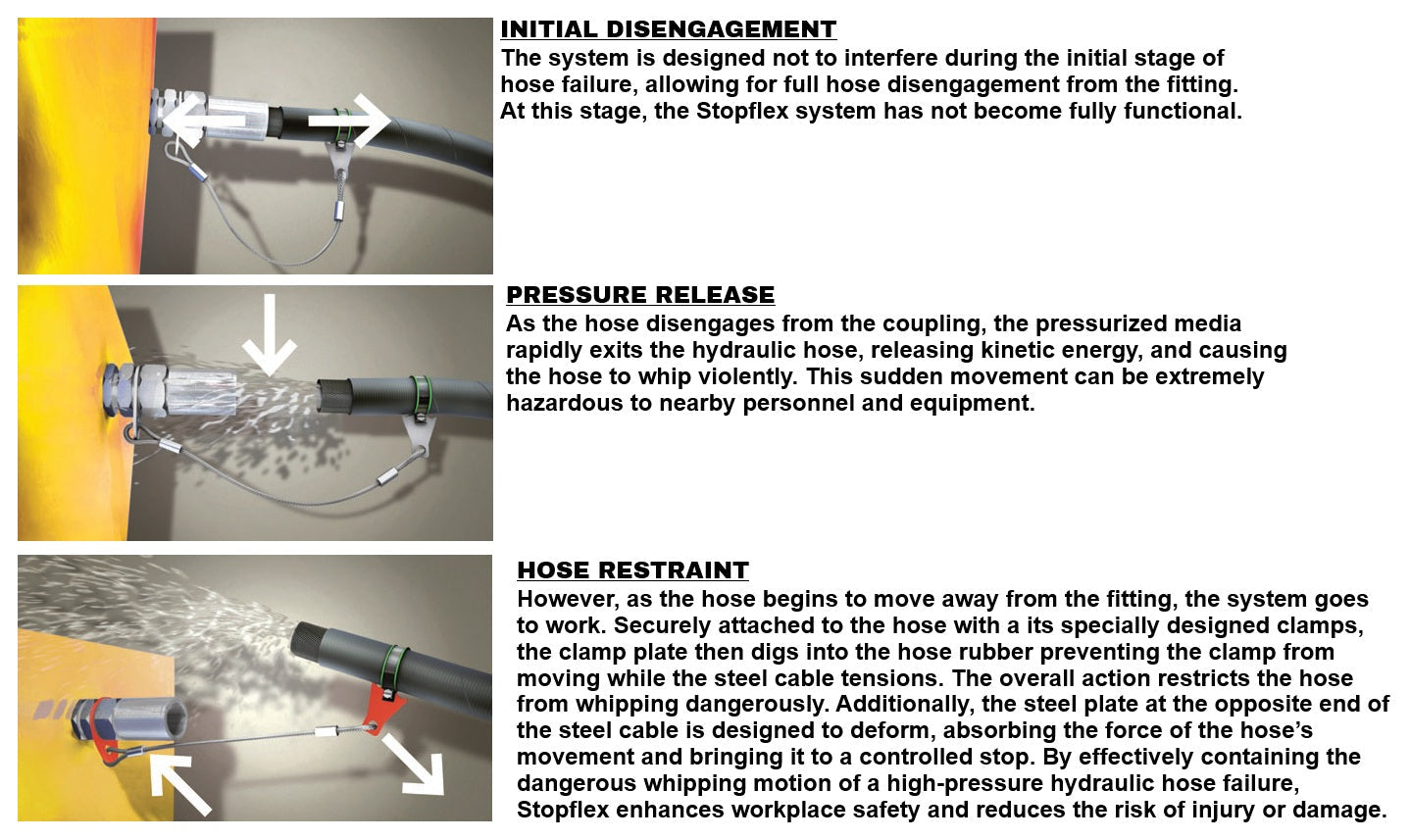

The Stopflex system is designed to safely dissipate pressure during a hose failure, and protect those in the vicinity from being struck by hose whip.

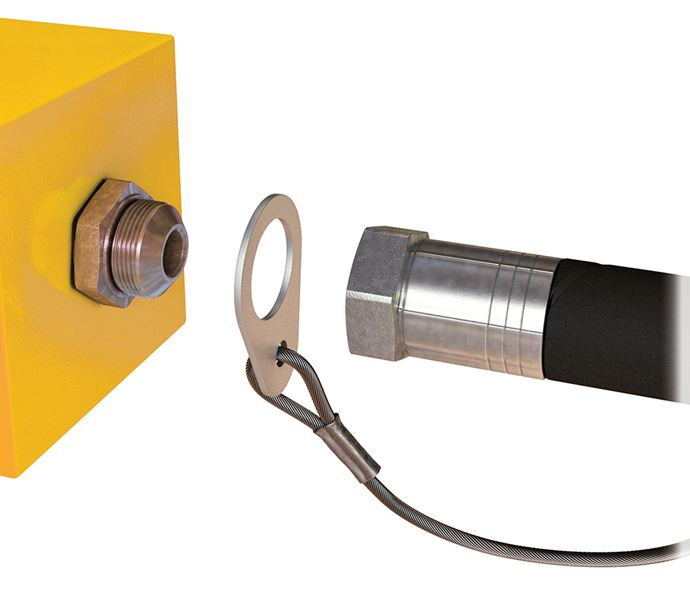

This Stopflex retention system is designed for JIC fittings. A highly engineered retention system that can be applied to hoses already installed.


Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $451.01
15–29 $407.83
30+ $359.85
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Stopflex
Series:
  • KH-STOPFUJIC-OP Series
Specifications and Approvals:
  • ISO 4413
About:
  • Hydraulic hoses contain enormous potential energy while in operation, resulting from their high operating pressures, which are often in the thousands of PSI.
  • During a hose failure this energy becomes kinetic, transforming the hose into a dangerous whip hazard, potentially resulting in serious injury.
  • The Stopflex system is designed to safely dissipate this pressure, and protect those in the vicinity from being struck during a hose failure.
Features:
  • Stopflex enhances workplace safety and reduces the risk of injury or damage.
  • Effectively contains the dangerous whipping motion of a high-pressure hydraulic hose failure.
Specifications:
  • Stopflex is rigorously tested and validated to withstand real hydraulic system pressures, making it one of the only retention solutions fully aligned with ISO 4413's safety mandates.
Part Number Ø M Ø (in) SP./TH (in) L (in) Maximum Operating Pressure Cutting Plate
KH-STOPFUJIC115OP M6 0.453" 0.079" 11.811" 6525 PSI SMALL
KH-STOPFUJIC132OP M6 0.520" 0.079" 11.811" 6453 PSI SMALL
KH-STOPFUJIC148OP M6 0.583" 0.079" 11.811" 6090 PSI SMALL
KH-STOPFUJIC195OP M6 0.768" 0.079" 11.811" 6090 PSI SMALL
KH-STOPFUJIC228OP M6 0.898" 0.079" 11.811" 6090 PSI SMALL
KH-STOPFUJIC275OP M6 1.083" 0.079" 11.811" 6090 PSI SMALL
KH-STOPFUJIC307OP M6 1.209" 0.079" 11.811" 6090 PSI SMALL
KH-STOPFUJIC34SOP M6 1.201" 0.098" 17.717" 6090 PSI LARGE
KH-STOPFUJIC34OP M6 1.339" 0.098" 17.717" 6090 PSI LARGE
KH-STOPFUJIC415SOP M8 1.339" 0.098" 17.717" 6090 PSI LARGE
KH-STOPFUJIC415OP M6 1.634" 0.098" 17.717" 6090 PSI LARGE
KH-STOPFUJIC48SOP M8 1.890" 0.098" 17.717" 6090 PSI LARGE
KH-STOPFUJIC48OP M6 1.890" 0.098" 17.717" 6090 PSI LARGE
KH-STOPFUJIC64OP M8 2.520" 0.098" 17.717" 5583 PSI LARGE
