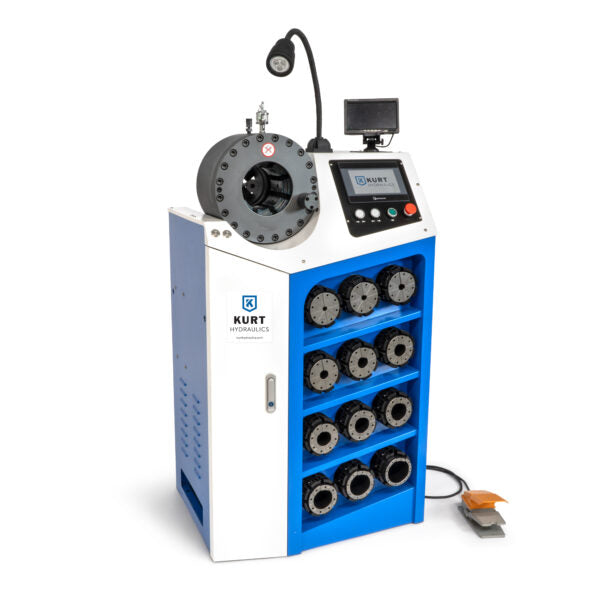

KH-32K by Kurt Hydraulics | Hydraulic Hose Crimper Machine | 220V/60Hz Single Phase | Includes: 12 Die

The Kurt Hydraulics KH32K Crimper is part of our new product series. The electronically controlled operating system has all Kurt hoses and couplings preprogrammed into its memory for manual, semi-automatic and automatic operating modes. Featuring a wide crimping range, a self-oiling system and a larger head opening that allows up to 2-inch hose couplings and non-standard bends. The Kurt Hydraulics KH32K Crimper comes fully shrouded with built-in shelving and a stand that holds 12 dies, a foot switch and additional accessories.

Features

• One-piece forged machine head for increased stability and durability
• Plunger-pump design generates more crimping force — can crimp 2-inch 6-wire hoses
• Integrated stand with shelves and die holders
• Includes 12 die sets, foot switch and quick-change die tool
• High-precision sensors and error compensation for improved crimping accuracy
• Vacuum heat-treatment technology reduces oxidation on dies for a longer service life, and a better finish
• Manual, semi-automatic and automatic modes
• Self-oiling die shoes
• Integrated light

Technical Specs

• Voltage: 220V/60Hz single phase service
• Power cord: L6-20P – 20A Twist-Lock Plug 2P – 3W 250VAC L6-20P BK/WT
• Motor: 3 kW
• Pump 3.8 gal/min
• System pressure: 4350 psi
• Opening without dies: Ø4.8 inches
• Max oil volume: 11.9 gallons
• Dimensions: 28.35″ x 20.87″ x 28.75″
• Crimp range: Ø6 – Ø51 4SH  (1/8” to 2” hose)

Included Die Sets / Part Numbers

• Ø14 die set / KMGKD95/14
• Ø18 die set / KMGKD95/18
• Ø21 die set / KMGKD95/21
• Ø28 die set / KMGKD95/28
• Ø35 die set / KMGKD95/35
• Ø41die set / KMGKD95/41
• Ø47 die set / KMGKD95/47
• Ø51 die set / KMGKD95/51
• Ø57 die set / KMGKD95/57
• Ø63 die set / KMGKD95/63
• Ø71 die set / KMGKD95/71
• Ø76 die set / KMGKD95/76
