KCS-TF5DI-230/33 KuriCrimp™ by Kuriyama | KCS-TFIH10 Series | Hose Saw | 2.2 HP (230 V) 3 PH Motor | For Industrial Hoses Up To 10" ID

KCS-TF5DI-230/33 KuriCrimp™ by Kuriyama | KCS-TFIH10 Series | Hose Saw | 2.2 HP (230 V) 3 PH Motor | For Industrial Hoses Up To 10" ID

Sale price$23,516.35
Buy more, save moreDiscounts applied in cart/checkout.
Description:

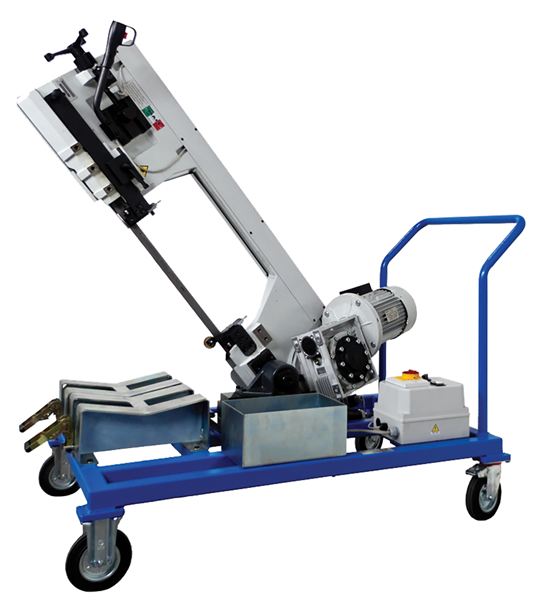

  • This mobile band saw is ideal for cutting a variety of industrial hoses up to 10" ID. A great addition to improve cutting efficiency when working with bulky hoses.
Hose Capacity:
  • Hose Capacity for 1 - 2 Wire: N/A
  • Hose Capacity for 4 Spiral: N/A
  • Hose Capacity for 6 Spiral: N/A
  • Hose Capacity for Industrial: 10 in (Dependent on hose type)
  • Max. Opening: 280 mm
Cutter Size:
  • Length: 78.7 in
  • Width: 35.4 in
  • Height: 39.4 in
  • Weight: 595 lb
  • Blade Diamensions: 126 in x 1.06 in x 0.04 in
Notes:
  • CAUTION: This saw is not recommended for use with hoses with a steel cover, steel wire reinformement, and/or steel helical reinforcement.
Part Number Motor Weight
KCS-TF5DI-230-33 2.2 HP (230 V) 3 PHSCAN 595 lb

Additional Product Data:

Brand:
  • KuriCrimp
Series:
  • KCS-TFIH10 Series

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
