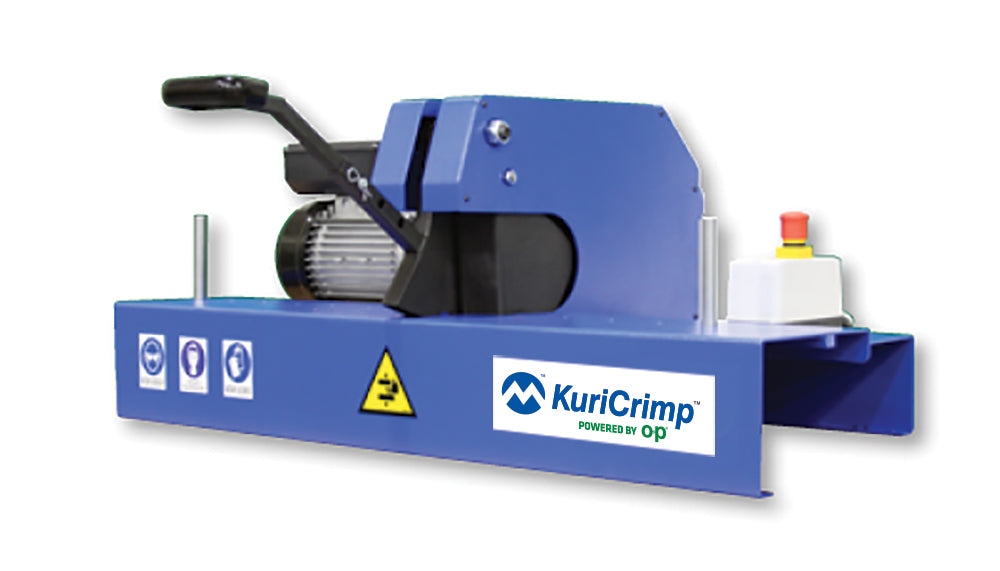

KuriCrimp™ | KCS-TF4/E Series | Hose Saw

Ideal for industrial hoses, cutting up to 4" ID. Can be placed on the ground, eliminating the need to lift heavy hoses.
Buy More, Save More!
Quantity Price Each
3–5 $7,670.36
6+ $7,343.96
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KuriCrimp
Series:
  • KCS-TF2/E Series
Description:
  • Ideal for industrial hoses, cutting up to 4" ID. Can be placed on the ground, eliminating the need to lift heavy hoses.
  • Diamond blade included in order to cut through heavy walled hoses or ones with steel helical reinforcement.
  • Ideal for use with KC3-H144 or KC3-H170 series crimpers.
Hose Capacity:
  • Hose Capacity for 1 - 2 Wire: 3 in
  • Hose Capacity for 4 Spiral: 3 in
  • Hose Capacity for 6 Spiral: 2 in
  • Hose Capacity for Industrial: 4 in
  • Max. Opening: 130 mm
Cutter Size:
  • Length: 45.3 in
  • Width: 26.0 in
  • Height: 26.3 in
  • Weight: 187.4 lb
  • Blade Diameter: 400 mm
Included Accessories:
  • Recessed Blade.
  • Ventilation Port (Separate suction device required for fume extraction).
  • Diamond Blade.
Part Number Motor Weight
KCS-TF4/E-230/1 5.5 HP (230 V) 1 PH 187.4 lb
