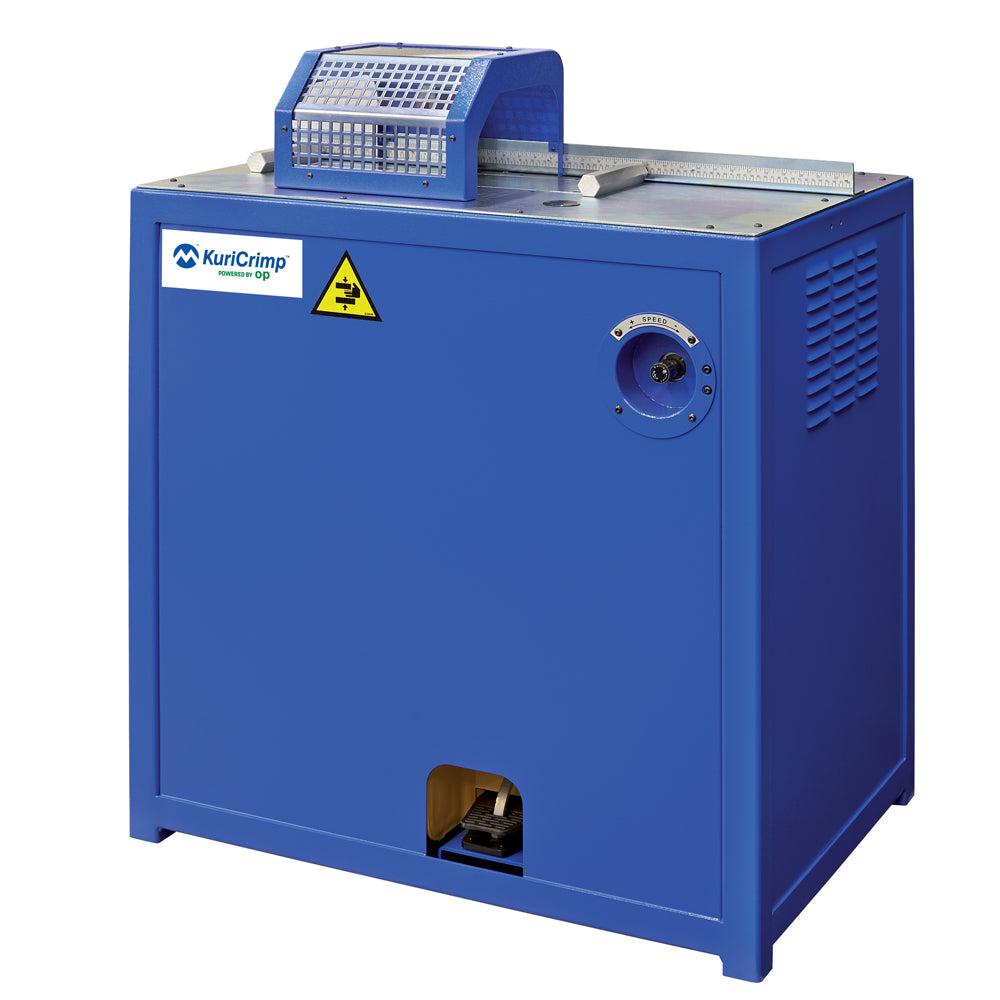

KCS-TF3/PI-230/3 KuriCrimp™ by Kuriyama | KCS-TF3/PI Series | Hose Saw | 7.5 HP (230 V) 3 PH Motor | For Hydraulic Hoses Up To 2" Six Spirals

KCS-TF3/PI-230/3 KuriCrimp™ by Kuriyama | KCS-TF3/PI Series | Hose Saw | 7.5 HP (230 V) 3 PH Motor | For Hydraulic Hoses Up To 2" Six Spirals

Sale price$14,493.26

Kuriyama of America Inc.
KuriCrimp™ | KCS-TF3/PI Series | Hose Saw

A stand alone unit ideal for cutting 2" six spiral hydraulic hose. The blade is recessed inside the base for additional safety.

Uses 100 PSI pneumatic input control.

Suggested for use with KC3-H135 series crimpers.
Buy More, Save More!
Quantity Price Each
3–5 $13,623.66
6+ $13,043.93
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KuriCrimp
Series:
  • KCS-TF3/PI Series
Description:
  • A stand alone unit ideal for cutting 2" six spiral hydraulic hose. The blade is recessed inside the base for additional safety. Uses 100 PSI pneumatic input control.
  • Suggested for use with KC3-H135 series crimpers.
Hose Capacity:
  • Hose Capacity for 1 - 2 Wire: 3 in
  • Hose Capacity for 4 Spiral: 2-1/2 in
  • Hose Capacity for 6 Spiral: 2 in
  • Hose Capacity for Industrial: 2-1/2 in
  • Max. Opening: 100 mm
Cutter Size:
  • Length: 40.4 in
  • Width: 27.6 in
  • Height: 45.3 in
  • Weight: 530 lb
  • Blade Diameter: 400 mm
Included Accessories:
  • Enclosed Blade Chamber.
  • Ventilation Port (Separate suction device required for fume extraction).
  • Serrated Blade (The included Serrated Blade is not recommended for use with hoses with a steel cover and/or containing steel helical reinforcement).
Part Number Motor Weight
KCS-TF3/PI-230/3 7.5 HP (230 V) 3 PH 530 lb
