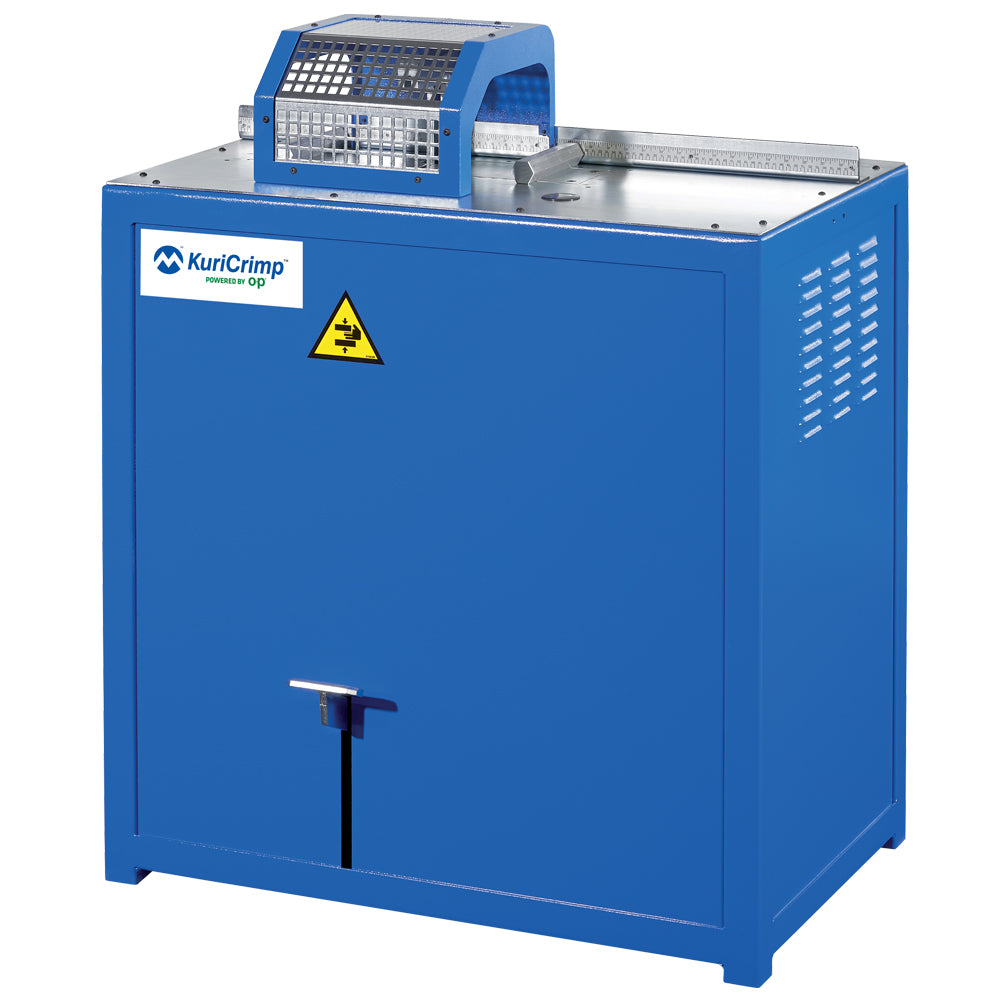

KCS-TF3-230/3 KuriCrimp™ by Kuriyama | KCS-TF3 Series | Hose Saw | 7.5 HP (230 V) 3 PH Motor | For Hydraulic Hoses Up To 3" Two Wire & 2" Six Spirals

KCS-TF3-230/3 KuriCrimp™ by Kuriyama | KCS-TF3 Series | Hose Saw | 7.5 HP (230 V) 3 PH Motor | For Hydraulic Hoses Up To 3" Two Wire & 2" Six Spirals

Sale price$11,337.47

Kuriyama of America Inc.
KuriCrimp™ | KCS-TF3 Series | Hose Saw

A stand alone unit ideal for cutting 2" four spiral and 1 1/2" six spiral hydraulic hose. The blade is recessed inside the base for additional safety.
Buy More, Save More!
Quantity Price Each
3–5 $10,657.22
6+ $10,203.72
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KuriCrimp
Series:
  • KCS-TF3 Series
Description:
  • A stand alone unit ideal for cutting 3" two wire hose and 2" six spiral hydraulic hose. The blade is recessed inside the base for additional safety.
  • Suggested for use with KC3-H135 series crimpers.
Hose Capacity:
  • Hose Capacity for 1 - 2 Wire: 3 in
  • Hose Capacity for 4 Spiral: 2-1/2 in
  • Hose Capacity for 6 Spiral: 2 in
  • Hose Capacity for Industrial: 2-1/2 in
  • Max. Opening: 100 mm
Cutter Size:
  • Length: 39.4 in
  • Width: 28.0 in
  • Height: 45.3 in
  • Weight: 419 lb
  • Blade Diameter: 400 mm
Included Accessories:
  • Enclosed Blade Chamber.
  • Ventilation Port (Separate suction device required for fume extraction).
  • Serrated Blade (The included Serrated Blade is not recommended for use with hoses with a steel cover and/or containing steel helical reinforcement).
Part Number Motor Weight
KCS-TF3-230/3 7.5 HP (230 V) 3 PH 419 lb
