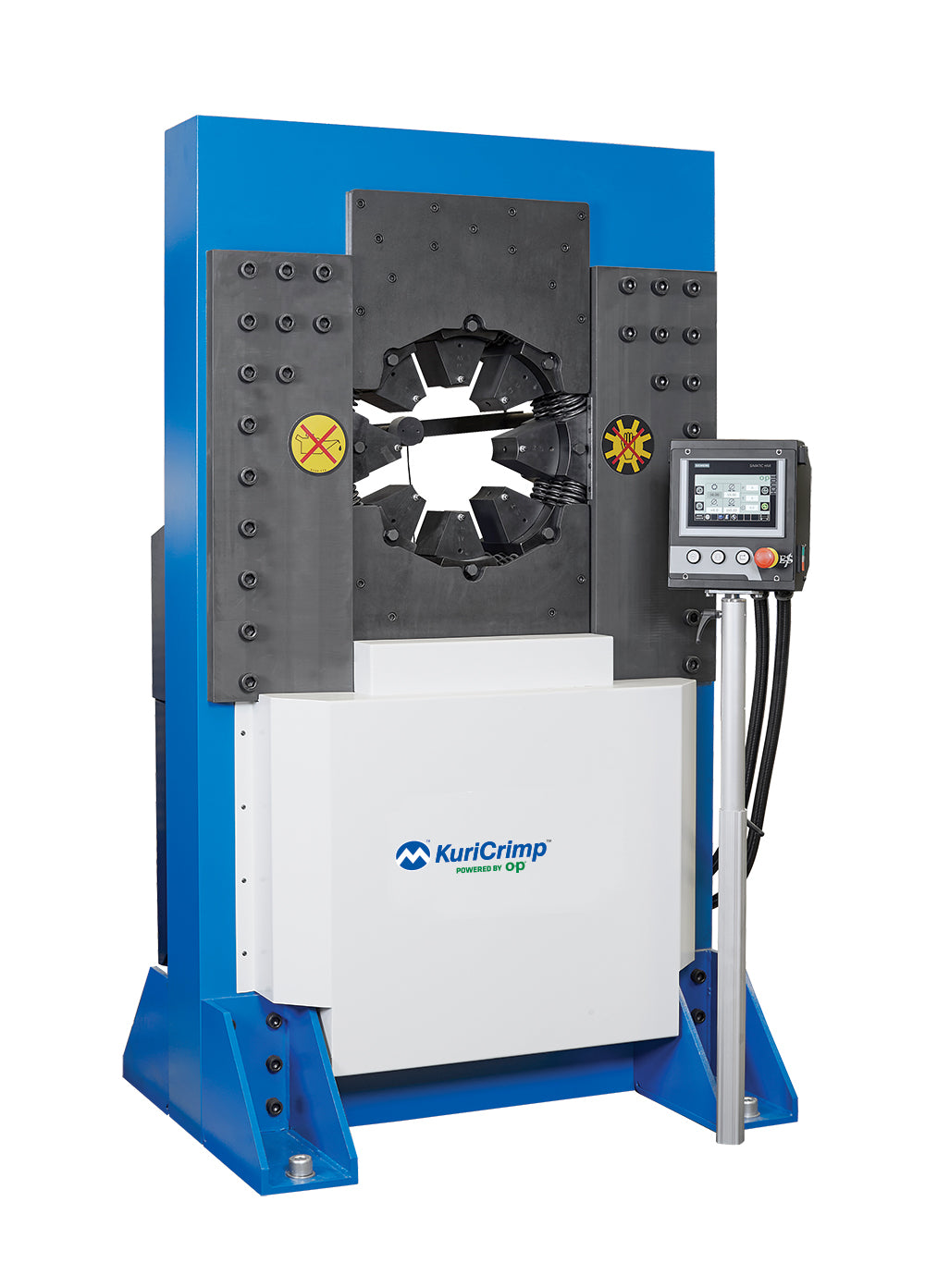

KC4-V300-230/3 KuriCrimp™ by Kuriyama | KC4-V300 Series | High Volume Crimper | 10 HP (230 V) 3 PH Motor | 725 Ton Crimping Force | Includes: Electric Foot Pedal, Fitting Orientation Protractor, Crimp Calculator

KC4-V300-230/3 KuriCrimp™ by Kuriyama | KC4-V300 Series | High Volume Crimper | 10 HP (230 V) 3 PH Motor | 725 Ton Crimping Force | Includes: Electric Foot Pedal, Fitting Orientation Protractor, Crimp Calculator

Sale price$131,775.15
Buy more, save moreDiscounts applied in cart/checkout.
Hose Capacity (in):
  • 1 - 2 Wire: 3
  • 4 SP / 6 SP: 3
  • 90º Fittings: 3
  • Industrial: 12
Crimping Force (ton):
  • 725
Opening Diameter:
  • Max. Without Dies (mm / in): 475 / 18.70
  • Max. With Dies (mm / in): 345 / 13.58
  • By Die Size (mm / in): Die Size + 155
Crimper Size:
  • L x W x H (in): 47.2 x 37.4 x 81.8
  • Crimper + Power Pack Weight (lbs): 10,868 + 485 = 11,353
Control Mechanism:
  • Large, full-color, touch-screen display.
  • Stores up to 1,000 crimp specifications.
  • Built-in crimp diameter calculator.
  • USB port connection.
  • Optional upgrades such as digital caliper, history data save, barcode reader, webcam and WiFi connection.
Motor:
  • 10 HP (230 V) 3 PH
Hydraulic Fluid:
  • Type: ISO 46
  • Amount: 300L = 79.26 Gal.
  Part Number Description
KC4-V300-230/3 10 HP (230 V) 3 PH
725 Ton Crimping Force
Includes: Electric Foot Pedal, Fitting Orientation Protractor, Crimp Calculator
Included Accessories
PEDAL-ES
Electric Foot Pedal		 Fitting Orientation Protractor Crimp Calculator
Dies | V220 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDV220-103 103.0 - 106.0mm 103mm 145mm 73.5 lbs
KCDV220-106 106.0 - 111.0mm 106mm 145mm 73.5 lbs
KCDV220-111 111.0 - 116.0mm 111mm 145mm 70.5 lbs
KCDV220-116 116.0 - 121.0mm 116mm 145mm 68.3 lbs
KCDV220-121 121.0 - 126.0mm 121mm 145mm 66.0 lbs
KCDV220-126 126.0 - 131.0mm 126mm 145mm 63.9 lbs
KCDV220-131 131.0 - 136.0mm 131mm 145mm 61.7 lbs
KCDV220-136 136.0 - 146.0mm 136mm 145mm 58.4 lbs
KCDV220-146 146.0 -156.0mm 146mm 145mm 52.9 lbs
KCDV220-156 156.0 - 166.0mm 156mm 145mm 47.3 lbs
KCDV220-166 166.0 - 178.0mm 166mm 145mm 41.8 lbs
KCDV220-178 178.0 - 190.0mm 178mm 145mm 33.0 lbs
KCDV220-190 190.0 - 200.0mm 190mm 145mm 25.3 lbs
Dies | V119 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDV119-10 10.0 - 12.0mm 10mm 60mm 14.4 lbs
KCDV119-12 12.0 - 14.0mm 12mm 60mm 14.4 lbs
KCDV119-14 14.0 - 16.0mm 14mm 60mm 15.5 lbs
KCDV119-16 16.0 - 19.0mm 16mm 60mm 15.5 lbs
KCDV119-19 19.0 - 22.0mm 19mm 60mm 16.6 lbs
KCDV119-22 22.0 - 25.0mm 22mm 60mm 16.6 lbs
KCDV119-25 25.0 - 29.0mm 25mm 60mm 15.5 lbs
KCDV119-29 29.0 - 34.0mm 29mm 70mm 15.5 lbs
KCDV119-34 34.0 - 38.0mm 34mm 70mm 15.5 lbs
KCDV119-38 38.0 - 42.0mm 38mm 85mm 15.5 lbs
KCDV119-42 42.0 - 46.0mm 42mm 85mm 15.5 lbs
KCDV119-46 46.0 - 50.0mm 46mm 120mm 19.9 lbs
KCDV119-50 50.0 - 54.0mm 50mm 120mm 15.5 lbs
KCDV119-54 54.0 - 58.0mm 54mm 120mm 16.6 lbs
KCDV119-58 58.0 - 63.0mm 58mm 120mm 16.6 lbs
KCDV119-63 63.0 - 69.0mm 63mm 120mm 17.7 lbs
KCDV119-69 69.0 - 73.0mm 69mm 120mm 15.5 lbs
KCDV119-73 73.0 - 77.0mm 73mm 120mm 13.3 lbs
KCDV119-77 77.0 - 86.0mm 77mm 120mm 11.1 lbs
KCDV119-86 86.0 - 90.0mm 86mm 120mm 12.5 lbs
KCDV119-90 90.0 - 96.0mm 86mm 120mm 10.7 lbs
KCDV119-96 96.0 - 103.0mm 96mm 120mm 8.9 lbs
Reduction Dies
Die Number Reduction Range(mm) Weight(lbs/ea)
REDUXV1 10.0 - 96.0mm 155 lbs
REDUXV2 103.0 - 190.0mm 102 lbs
Optional Accessories:
KCPQCT-V250
Patented Quick Change Die Tool		 DIECART-V119
Die Cart (24 pc.)		 ES4 Upgrades TABLE-KC
Mounted Side Table
Protection Net with
Activation Switch		 Back Limit Switch ES4-WEBCAM
Webcam

Additional Product Data:

Brand:
  • KuriCrimp
Series:
  • KC4-V300 Series

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
