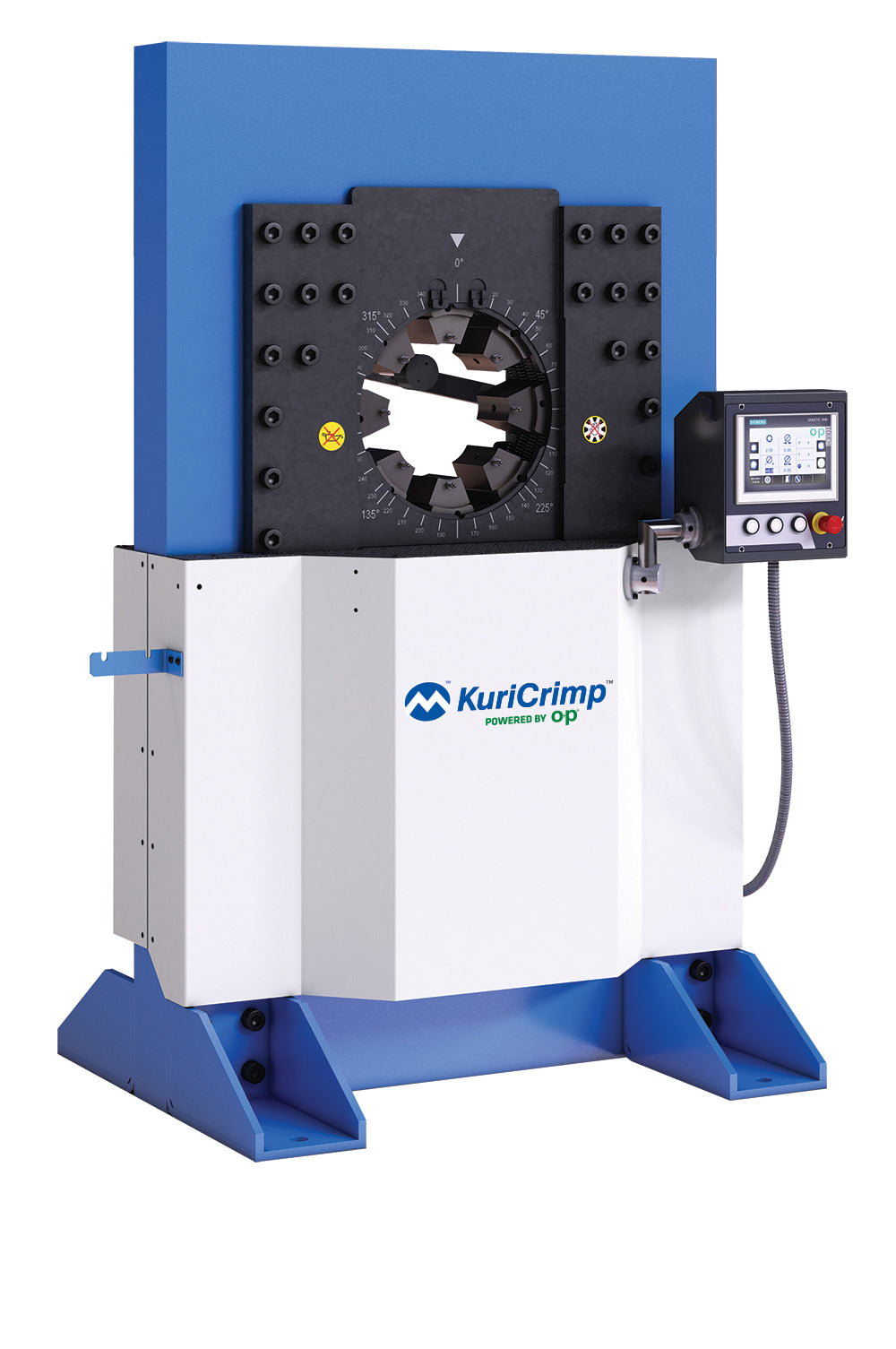

KC4-V250-230/3 KuriCrimp™ by Kuriyama | KC4-V250 Series | High Volume Crimper | 15 HP (230 V) 3 PH Motor | 551 Ton Crimping Force | Includes: Electric Foot Pedal, Fitting Orientation Protractor, Crimp Calculator

KC4-V250-230/3 KuriCrimp™ by Kuriyama | KC4-V250 Series | High Volume Crimper | 15 HP (230 V) 3 PH Motor | 551 Ton Crimping Force | Includes: Electric Foot Pedal, Fitting Orientation Protractor, Crimp Calculator

Sale price$102,158.94

Kuriyama of America Inc.
KuriCrimp™ | KC4-V250 Series | High Volume Crimper

Handles industrial hose up to 10" and features an enlarged opening mechanism that allows for assemblies with large couplings or flanges.

Its back limit switch option and advanced Siemen’s ES4 computerized controller greatly reduce cycle times.

Its power pack is separated from the main unit creating a thin profile. Reduction dies included.

Features: Greaseless Operation, Silent Pump.
Buy More, Save More!
Quantity Price Each
3–5 $96,029.40
6+ $91,943.05
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KuriCrimp
Series:
  • KC4-V250 Series
Hose Capacity (in):
  • 1 - 2 Wire: 3
  • 4 SP / 6 SP: 3
  • 90º Fittings: 3
  • Industrial: 10
Crimping Force (ton):
  • 551
Opening Diameter:
  • Max. Without Dies (mm / in): 380 / 14.96
  • Max. With Dies (mm / in): 350 / 13.78
  • By Die Size (mm / in): Die Size + 150
Crimper Size:
  • L x W x H (in): 53.1 x 26.1 x 74.2
  • Crimper + Power Pack Weight (lbs): 6,717 + 694 = 7,411
Control Mechanism:
  • Large, full-color, touch-screen display.
  • Stores up to 1,000 crimp specifications.
  • Built-in crimp diameter calculator.
  • USB port connection.
  • Optional upgrades such as digital caliper, history data save, barcode reader, webcam and WiFi connection.
Motor:
  • 15 HP (230 V) 3 PH
Hydraulic Fluid:
  • Type: ISO 46
  • Amount: 300L = 79.26 Gal.
  Part Number Description
KC4-V250-230/3 15 HP (230 V) 3 PH
551 Ton Crimping Force
Includes: Electric Foot Pedal, Fitting Orientation Protractor, Crimp Calculator
Included Accessories
PEDAL-ES
Electric Foot Pedal		 Fitting Orientation Protractor Crimp Calculator
Dies | V230 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDV230-103 103.0 - 106.0mm 103mm 145mm 79.3 lbs
KCDV230-106 106.0 - 111.0mm 106mm 145mm 77.0 lbs
KCDV230-111 111.0 - 116.0mm 111mm 145mm 77.0 lbs
KCDV230-116 116.0 - 121.0mm 116mm 145mm 77.0 lbs
KCDV230-121 121.0 - 126.0mm 121mm 145mm 83.7 lbs
KCDV230-126 126.0 - 131.0mm 126mm 145mm 70.5 lbs
KCDV230-131 131.0 - 136.0mm 131mm 145mm 70.5 lbs
KCDV230-136 136.0 - 146.0mm 136mm 145mm 77.0 lbs
KCDV230-146 146.0 -156.0mm 146mm 145mm 77.0 lbs
KCDV230-156 156.0 - 166.0mm 156mm 145mm 74.9 lbs
KCDV230-166 166.0 - 178.0mm 166mm 145mm 79.3 lbs
KCDV230-178 178.0 - 190.0mm 178mm 145mm 77.0 lbs
KCDV230-190 190.0 - 200.0mm 190mm 145mm 77.0 lbs
Dies | V119 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDV119-10 10.0 - 12.0mm 10mm 60mm 14.4 lbs
KCDV119-12 12.0 - 14.0mm 12mm 60mm 14.4 lbs
KCDV119-14 14.0 - 16.0mm 14mm 60mm 15.5 lbs
KCDV119-16 16.0 - 19.0mm 16mm 60mm 15.5 lbs
KCDV119-19 19.0 - 22.0mm 19mm 60mm 16.6 lbs
KCDV119-22 22.0 - 25.0mm 22mm 60mm 16.6 lbs
KCDV119-25 25.0 - 29.0mm 25mm 60mm 15.5 lbs
KCDV119-29 29.0 - 34.0mm 29mm 70mm 15.5 lbs
KCDV119-34 34.0 - 38.0mm 34mm 70mm 15.5 lbs
KCDV119-38 38.0 - 42.0mm 38mm 85mm 15.5 lbs
KCDV119-42 42.0 - 46.0mm 42mm 85mm 15.5 lbs
KCDV119-46 46.0 - 50.0mm 46mm 120mm 19.9 lbs
KCDV119-50 50.0 - 54.0mm 50mm 120mm 15.5 lbs
KCDV119-54 54.0 - 58.0mm 54mm 120mm 16.6 lbs
KCDV119-58 58.0 - 63.0mm 58mm 120mm 16.6 lbs
KCDV119-63 63.0 - 69.0mm 63mm 120mm 17.7 lbs
KCDV119-69 69.0 - 73.0mm 69mm 120mm 15.5 lbs
KCDV119-73 73.0 - 77.0mm 73mm 120mm 13.3 lbs
KCDV119-77 77.0 - 86.0mm 77mm 120mm 11.1 lbs
KCDV119-86 86.0 - 90.0mm 86mm 120mm 12.5 lbs
KCDV119-90 90.0 - 96.0mm 86mm 120mm 10.7 lbs
KCDV119-96 96.0 - 103.0mm 96mm 120mm 8.9 lbs
Optional Accessories:
KCPQCT-V250
Patented Quick Change Die Tool		 DIECART-V119
Die Cart (24 pc.)		 ES4 Upgrades TABLE-KC
Mounted Side Table
Protection Net with
Activation Switch		 Back Limit Switch ES4-WEBCAM
Webcam
