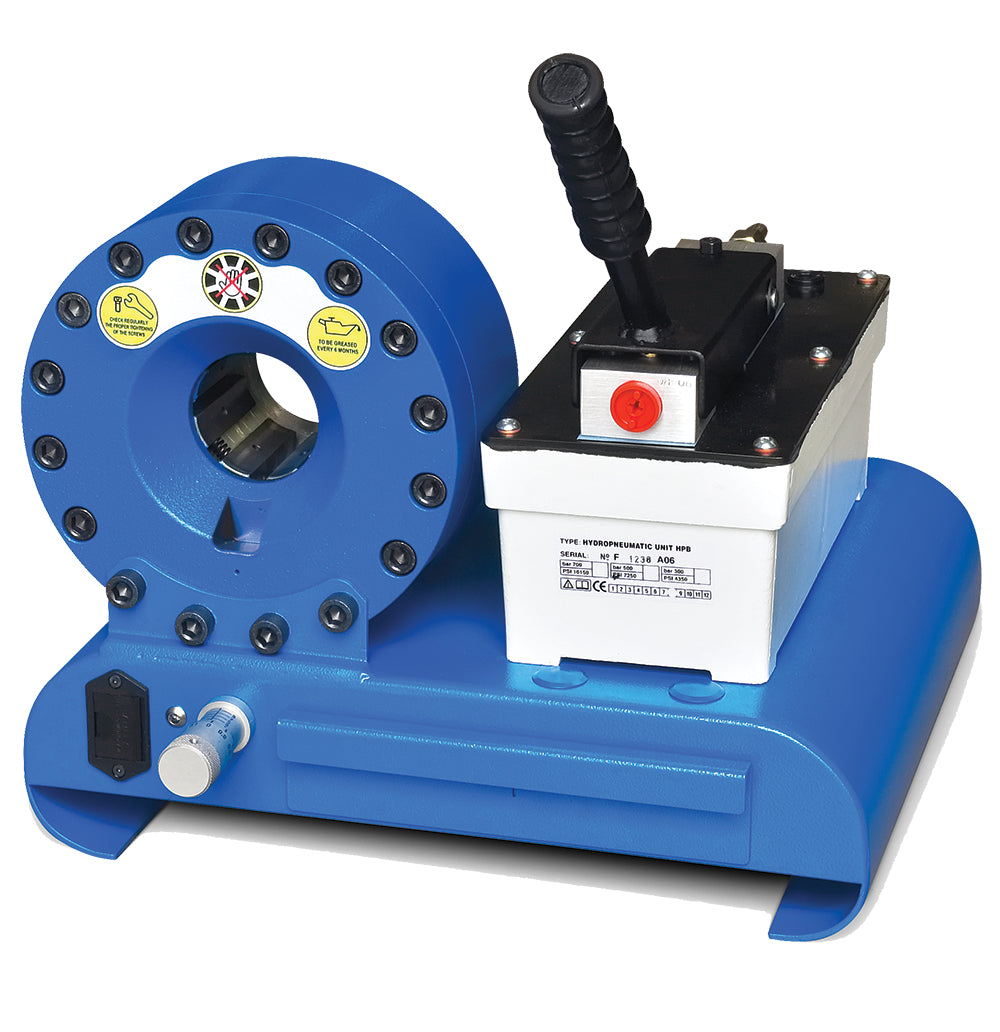

KC1-H47PI KuriCrimp™ by Kuriyama | KC1-H47PI Series | Service Crimper | Air Pump | 110 Ton Crimping Force | Includes: Die Change Tool, Air Pump & Die Storage Drawer

KC1-H47PI KuriCrimp™ by Kuriyama | KC1-H47PI Series | Service Crimper | Air Pump | 110 Ton Crimping Force | Includes: Die Change Tool, Air Pump & Die Storage Drawer

Sale price$4,820.48

Kuriyama of America Inc.
KuriCrimp™ | KC1-H47PI Series | Service Crimper

A reliable crimper that won't take up a lot of space.

With its small footprint the KC1-H47PI is a perfect fit for crowded shops. Its small size also makes it good for quick trips into the field.

Powered by an air pump.
Buy More, Save More!
Quantity Price Each
2–3 $4,531.25
4–9 $4,338.43
10+ $3,856.38
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KuriCrimp
Series:
  • KC1-H47PI Series
Hose Capacity (in):
  • 1 - 2 Wire: 1
  • 4 SP / 6 SP: NA
  • 90° Fittings: 3/8
  • Industrial: NA
Crimping Force (ton):
  • 110
Opening Diameter:
  • Max. With Dies (mm / in): 49 / 1.93
  • By Die Size (mm): Die Size + 20
Crimper Size:
  • L x W x H (in): 15.0 x 16.9 x 15.8
  • Weight (lbs): 84
Control Mechanism:
  • Dial micrometer, with electric limit switch indicating when the crimp diameter is reached.
  Part Number Description
KC1-H47PI Air Pump Powered
110 Ton Crimping Force
Includes: Die Change Tool, Air Pump, & Die Storage Drawer
Included Accessories
KCDCT-H39
Die Change Tool		 Air Pump Die Storage Drawer
Dies | H39 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDH39-6 6.0 - 8.0mm 6mm 55mm 4.0 lbs
KCDH39-6 8.0 - 10.0mm 8mm 55mm 4.0 lbs
KCDH39-10 10.0 - 12.0mm 10mm 55mm 4.0 lbs
KCDH39-12 12.0 - 14.0mm 12mm 55mm 4.0 lbs
KCDH39-14 14.0 - 16.0mm 14mm 55mm 4.0 lbs
KCDH39-16 16.0 - 19.0mm 16mm 55mm 4.0 lbs
KCDH39-19 19.0 - 22.0mm 19mm 55mm 4.0 lbs
KCDH39-22 22.0 - 25.0mm 22mm 55mm 4.0 lbs
KCDH39-25 25.0 - 29.0mm 25mm 65mm 4.0 lbs
KCDH39-29 29.0 - 34.0mm 29mm 65mm 4.0 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
