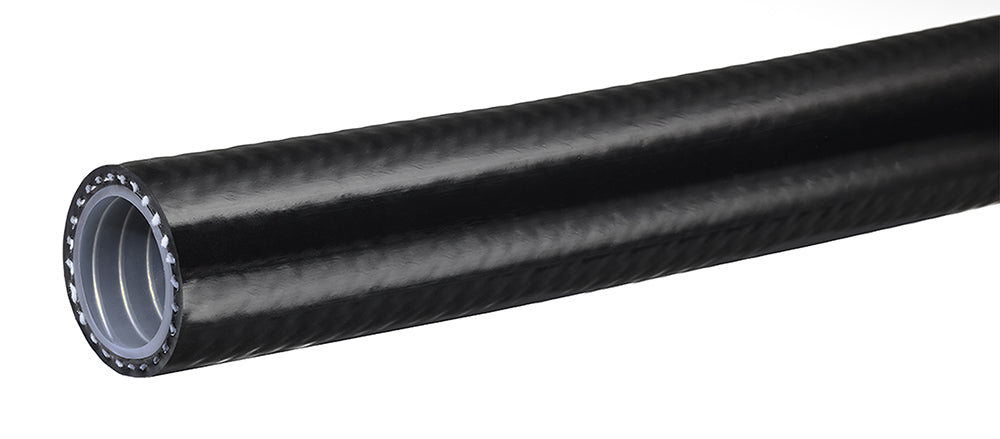

K9593-40X100 Kuri-Tec by Kuriyama | K-Tough™ Oil | K9593 Series | High Pressure Reinforced Suction & Discharge Hose | 2.50" Hose ID | 3.07" Hose OD | 100ft Length

K9593-40X100 Kuri-Tec by Kuriyama | K-Tough™ Oil | K9593 Series | High Pressure Reinforced Suction & Discharge Hose | 2.50" Hose ID | 3.07" Hose OD | 100ft Length

Sale price$3,102.34

Kuri Tec® by Kuriyama
K-Tough™ Oil K9593 Series | High Pressure Reinforced Suction & Discharge Hose

A high pressure suction & discharge hose for heavy duty industrial applications.

Made in North America.

Package Quantity: 100 Foot

Buy More, Save More!
Quantity Price Each
2–3 $2,916.20
4–9 $2,792.11
10+ $2,481.87
Discounts applied in cart/checkout.

Product Data:

Brand:
  • K-Tough Oil
  • Kuri-Tec
Series:
  • K9593 Series
Color(s):
  • Black

SPECIFICATIONS

Applications: Batch plants
Constant flex applications
Liquid chemical handling (Consult PVC chemical resistance guide for suitability.)
Mining applications (MSHA)
Oil field water hauling
Suction & discharge of water and slurries
Tank trucks
Transfer of petroleum and other oil based products
Tube: Clear phthalate free PVC/polyurethane blend. Reinforcement: Galvanized steel wire helix, high tensile strength yarn.
Cover: Black phthalate free PVC/polyurethane blend. Service Temperature Range: -5°F (-20°C) to 150°F (+65°C)
Specifications: FDA
MSHA
Phthalate Free
RoHS
Other Features:
  • Food Grade Materials - Hose complies with applicable FDA requirements.
  • Increased Pressure Rating - New heavy duty construction resulting in a highly durable product, designed for both indoor and demanding outdoor applications.
  • Superior Flexibility - More flexible than other similar hoses for ease-of-use.
  • High Cycle Strength - Designed to resist damage from constant flex applications.
  • Abrasion Resistant Cover - Resists wear from being dragged on rough surfaces.
  • Static Dissipative - Steel wire helps prevent the build-up of static electricity for added safety (see below).
  • Oil Resistant - Meets ARPM Class A (High oil resistance) rating.
  • MSHA Accepted - Cover material accepted by MSHA as having met the requirements for acceptance of flame-resistant solid products taken into mines for hoses transferring air, oil, water or other fluids.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fitting with Kuri Tec® reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.
  • Note: This product is designed to help dissipate static electricity when the metal wire is properly connected to ground through the fitting or other means.
  • Note: Actual service temperature range is application dependent. Working pressure decreases as temperature increases.
Part Number
50ft		 Part Number
100ft		 Part Number
120ft		 Nominal ID Nominal OD Max. Working
Pressure		 Vacuum Rating
(in. Hg)		 Min. Bend
Radius
in mm in mm @70°F
(20°C)		 @70°F
(20°C)		 @70°F
(20°C)
K9593-24X50 K9593-24X100 K9593-24X120 1.50" 38.1mm 2.03" 51.6mm 300 PSI 29.9 in. Hg 5.5"
K9593-32X50 K9593-32X100 K9593-32X120 2.00" 50.8mm 2.57" 65.3mm 275 PSI 29.9 in. Hg 7.0"
K9593-40X50 K9593-40X100 K9593-40X120 2.50" 63.5mm 3.07" 78.0mm 150 PSI 29.9 in. Hg 9.0"
K9593-48X50 K9593-48X100 K9593-48X120 3.00" 76.2mm 3.57" 90.7mm 150 PSI 29.9 in. Hg 11.0"
