K7300-24X50 Kuri-Tec by Kuriyama | POLYWIRE® PLUS | K7300 Series | Heavy Wall Wire-Yarn Reinforced Vacuum/Pressure Hose | 1-1/2" ID | 2.030" OD | 50ft Length

K7300-24X50 Kuri-Tec by Kuriyama | POLYWIRE® PLUS | K7300 Series | Heavy Wall Wire-Yarn Reinforced Vacuum/Pressure Hose | 1-1/2" ID | 2.030" OD | 50ft Length

Sale price$606.52

Kuri Tec® by Kuriyama

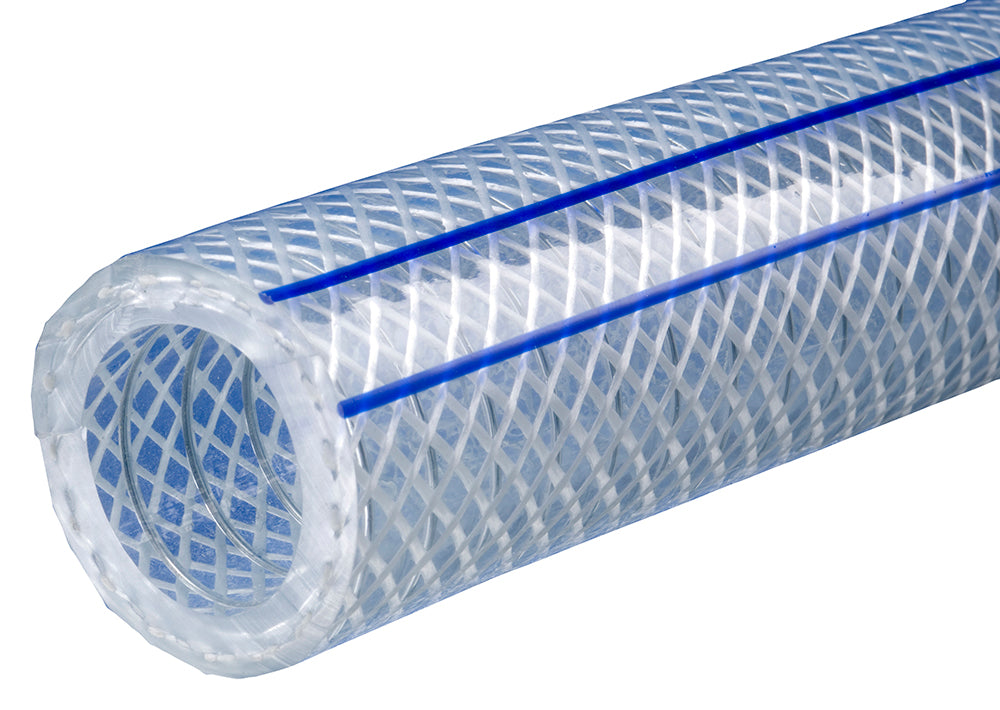

POLYWIRE® PLUS | K7300 Series | Heavy Wall Wire-Yarn Reinforced Vacuum/Pressure Hose

A unique crystal clear Phthalate Free PVC hose suitable for applications requiring a vacuum hose with higher pressure capability or as a pressure hose with vacuum capability.

Package Quantity: 50 Foot

Buy More, Save More!
Quantity Price Each
5–14 $570.13
15–29 $515.54
30+ $454.89
Discounts applied in cart/checkout.

Product Data:

Brand:
  • POLYWIRE PLUS
  • Kuri Tec
Series:
  • K7300 Series
Color(s):
  • Clear/Semi-Clear

SPECIFICATIONS

Applications: Pressure and vacuum applications which require excellent kink resistance.
Ideal for applications which require the hose to withstand both high vacuum and pressure.
Water transfer.
Liquid food transfer.
Tube: The inner food contact surface is made with Phthalate Free PVC compound formulated with ingredients in compliance with applicable FDA requirements, meets USDA, 3A, NSF and RoHS criteria. Reinforcement: High tensile yarns and helically-wound spring steel wire.
Cover: Crystal clear Phthalate Free PVC compound. Service Temperature Range: +15°F (-9°C) to +150°F (+65°C)
Specifications: 3A
FDA
NSF Certified Under Standard 51
Phthalate Free
RoHS
USDA
Other Features:
  • Wire helix reinforcement prevents kinking or collapsing¡¦ hose diameter will not expand under normal rated working pressures.
  • 29.9in Hg vacuum rating @ 70°F.
  • Electrogalvanized helical steel wire can be used for static dissipation (see Caution below).
  • Yarn reinforcement provides higher working pressure.
  • Heavy duty construction prevents hose O.D. from expanding and I.D. from collapsing.
  • Crystal clear - allows visual confirmation of product flow Glass-smooth interior - reduces material buildup.
  • Inner contact surface material is NSF certified for food applications (standard 51). It also meets other criteria such as 3A and USDA.
  • Resistant to chemicals.
  • Self-extinguishing.
  • Non-marking.
  • Silicone-free.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.
  • Caution: This product is designed to dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means.
Part Number Nominal ID Nominal OD Max. Working
Pressure		 Min. Bend Radius Length
in mm in mm @70°F
(20°C)		 @122°F
(66°C)		 @70°F
(20°C)
K7300-08X100 1/2" 12.7mm 0.906" 23.0mm 250 PSI 125 PSI 2" 100ft

K7300-12X25 3/4" 19.1mm 1.196" 30.4mm 225 PSI 112 PSI 2-1/2" 25ft
K7300-12X100 3/4" 19.1mm 1.196" 30.4mm 225 PSI 112 PSI 2-1/2" 100ft

K7300-16X25 1" 25.4mm 1.464" 37.2mm 225 PSI 112 PSI 3-1/2" 25ft
K7300-16X100 1" 25.4mm 1.464" 37.2mm 225 PSI 112 PSI 3-1/2" 100ft

K7300-20X25 1-1/4" 31.8mm 1.780" 45.2mm 175 PSI 87 PSI 4-1/2" 25ft
K7300-20X50 1-1/4" 31.8mm 1.780" 45.2mm 175 PSI 87 PSI 4-1/2" 50ft

K7300-24X25 1-1/2" 38.1mm 2.030" 51.6mm 175 PSI 87 PSI 5-1/2" 25ft
K7300-24X50 1-1/2" 38.1mm 2.030" 51.6mm 175 PSI 87 PSI 5-1/2" 50ft

K7300-32X25 2" 50.8mm 2.600" 66.0mm 150 PSI 75 PSI 7" 25ft
K7300-32X50 2" 50.8mm 2.600" 66.0mm 150 PSI 75 PSI 7" 50ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
