K7130-06X100 Kuri-Tec by Kuriyama | POLYWIRE® | K7130 Series | Heavy Wall PVC Food & Beverage Vacuum/Transfer Hose | 3/8" ID | .625" OD | 100ft Length

K7130-06X100 Kuri-Tec by Kuriyama | POLYWIRE® | K7130 Series | Heavy Wall PVC Food & Beverage Vacuum/Transfer Hose | 3/8" ID | .625" OD | 100ft Length

Sale price$156.00

Kuri Tec® by Kuriyama

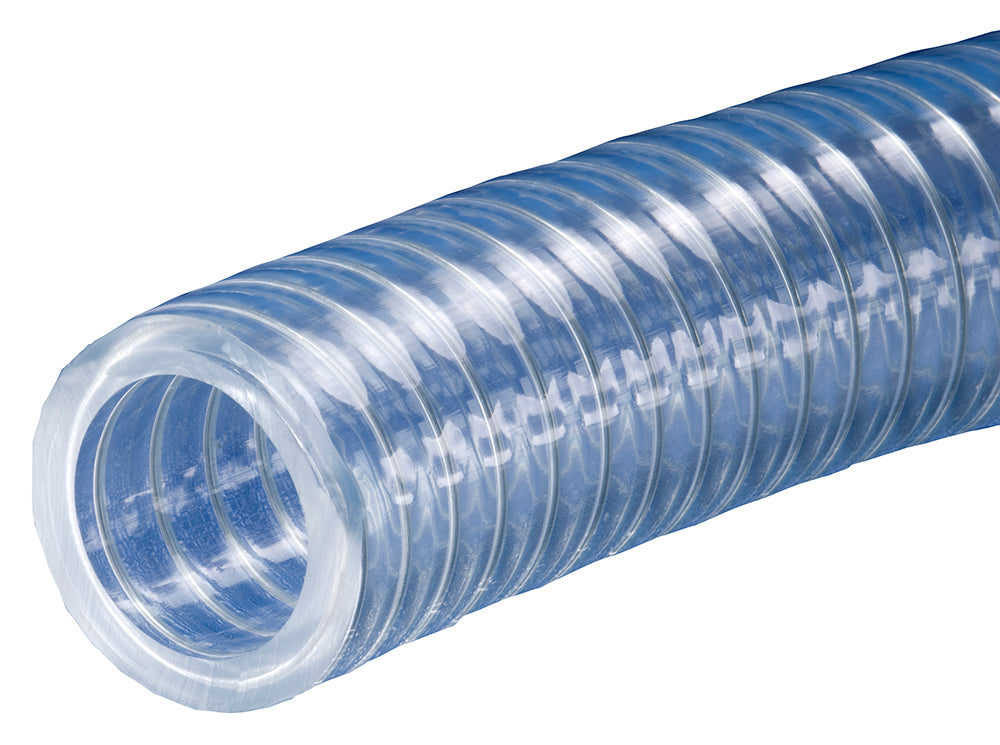

POLYWIRE® | K7130 Series | Heavy Wall PVC Food & Beverage Vacuum/Transfer Hose

Heavy wall food and beverage grade Phthalate Free vacuum/transfer hose with rated working pressures.

Has spiral wire reinforcement to prevent kinking or collapsing.

Package Quantity: 100 Foot

In stock
Buy More, Save More!
Quantity Price Each
5–19 $146.64
20–59 $132.60
60+ $117.00
Discounts applied in cart/checkout.

Product Data:

Brand:
  • POLYWIRE
  • Kuri Tec
Series:
  • K7130 Series
Color(s):
  • Clear/Semi-Clear

SPECIFICATIONS

Applications: Full vacuum lines.
Industrial vacuum pumps.
Food & beverage dispensing.
Air and water supply lines.
Car wash applications.
Coolant lines.
Air breathing lines.
Pneumatic parts transfer.
Deionized water systems.
Tube: Crystal clear Phthalate Free PVC compound, formulated with ingredients in compliance with applicable FDA requirements, meets USDA, 3A, NSF, UL, USP, and RoHS criteria. Reinforcement: Reinforced with helically-wound spring steel wire.
Cover: - Service Temperature Range: +25°F (-4°C) to +150°F (+65°C)
Specifications: 3A
FDA
NSF Certified Under Standard 51
Phthalate Free
RoHS
UL
USDA
USP
Other Features:
  • 29.9" HG vacuum rating @ 70°F.
  • Spiral wire reinforcement prevents kinking or collapsing... hose diameter will not expand under normal rated working pressures.
  • Crystal clear . allows visual confirmation of product flow.
  • Glass-smooth interior . reduces material buildup.
  • Electrogalvanized helical steel wire can be used for static dissipation (see note below).
  • Resistant to chemicals.
  • Compound hardness 73±3 Shore "A".
  • Self-extinguishing.
  • Non-marking.
  • Silicone-free.
  • One-piece lengths.
  • Phthalate Free!
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.
  • Caution: This product is designed to dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means.
Part Number
50ft		 Part Number
100ft		 Nominal ID Nominal OD Max. Working
Pressure		 Min. Bend Radius
in mm in mm @70°F
(20°C)		 @122°F
(66°C)		 @70°F
(20°C)
- K7130-04X100 1/4" 6.4mm 0.500" 12.7mm 250 PSI 80 PSI 1"
- K7130-06X100 3/8" 9.5mm 0.625" 15.9mm 150 PSI 80 PSI 1-1/2"
- K7130-08X100 1/2" 12.7mm 0.813" 20.7mm 150 PSI 80 PSI 2"
- K7130-10X100 5/8" 15.9mm 1.000" 25.4mm 150 PSI 65 PSI 2-1/2"
- K7130-12X100 3/4" 19.1mm 1.125" 28.6mm 150 PSI 65 PSI 3"
- K7130-16X100 1" 25.4mm 1.375" 34.9mm 100 PSI 50 PSI 4"
K7130-20X50 - 1-1/4" 31.8mm 1.750" 44.5mm 100 PSI 50 PSI 5"
K7130-24X50 - 1-1/2" 38.1mm 2.000" 50.8mm 100 PSI 35 PSI 6"
K7130-32X50 - 2" 50.8mm 2.500" 63.5mm 100 PSI 35 PSI 8"

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
