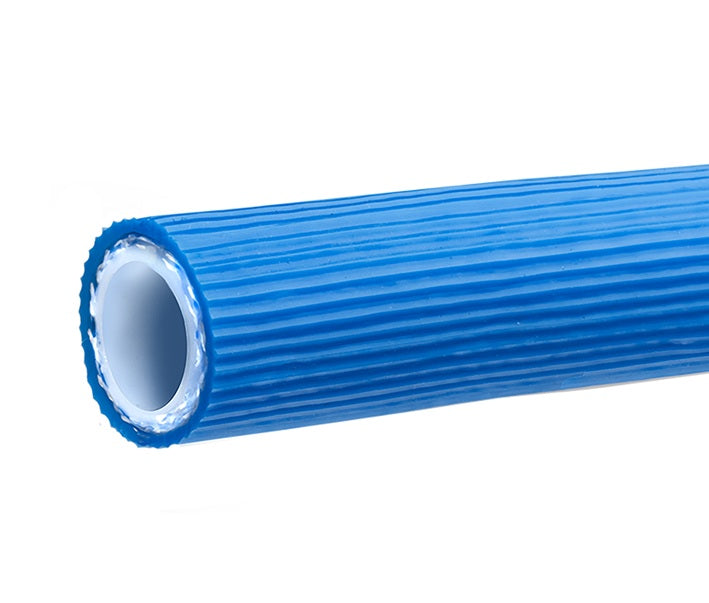

K5556-16X300 Kuri-Tec by Kuriyama | Ice Blaster™ | K5556 Series | Polyurethane Lined Dry Ice Transfer Hose | 1" Hose ID | 1.480" Hose OD | 300ft Length

K5556-16X300 Kuri-Tec by Kuriyama | Ice Blaster™ | K5556 Series | Polyurethane Lined Dry Ice Transfer Hose | 1" Hose ID | 1.480" Hose OD | 300ft Length

Sale price$3,585.22

Kuri Tec® by Kuriyama
Ice Blaster™ K5556 Series | Polyurethane Lined Dry Ice Transfer Hose

For dry ice blasting equipment and the transfer of low temperature materials.

Hose remains flexible in sub-zero temperatures.

Made in North America.

Package Quantity: 300 Foot

Buy More, Save More!
Quantity Price Each
2–3 $3,370.11
4–9 $3,226.70
10+ $2,868.18
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Ice Blaster
  • Kuri-Tec
Series:
  • K5556 Series
Color(s):
  • Blue

SPECIFICATIONS

Applications: Dry ice blasting equipment
Transfer of low temperature materials
Tube: Low temperature flexible PVC with abrasion resistant polyurethane liner. Reinforcement: Two layers of high tensile strength yarn.
Cover: Low temperature flexible PVC. Service Temperature Range: 40°F (-40°C) to +140°F (+60°C)
Specifications: Phthalate Free
RoHS
Other Features:
  • Lighter Weight - Up to 25% lighter than similar rubber hoses. Easier to use and helps to reduce worker fatigue.
  • Abrasion Resistant Polyurethane Liner - Designed for applications where abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or all-PVC hoses.
  • Smooth Interior - Low friction inner surface allows for maximum flow.
  • Cold Flex™ Materials - Hose remains flexible in sub-zero temperatures.
  • Easy Slide Cover - Ribbed cover reduces friction between the hose and ground, allowing the hose to slide easily over rough surfaces.
  • Non-marking - PVC cover eliminates instances of floor marking that can be caused by some rubber hoses.
  • One Piece Lengths - eliminating the need for hose menders
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fitting with Kuri Tec® reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.
  • Note: Actual service temperature range is application dependent. Working pressure decreases as temperature increases.
Part Number
50ft		 Part Number
100ft		 Part Number
300ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)
- K5556-08X100 K5556-08X300 1/2" 12.7mm 0.815" 20.7mm 300 PSI
- K5556-12X100 K5556-12X300 3/4" 19.3mm 1.220" 31.0mm 300 PSI
- K5556-16X100 K5556-16X300 1" 25.4mm 1.480" 37.6mm 300 PSI
K5556-20X50 K5556-20X100 - 1-1/4" 31.8mm 1.810" 46.0mm 300 PSI
