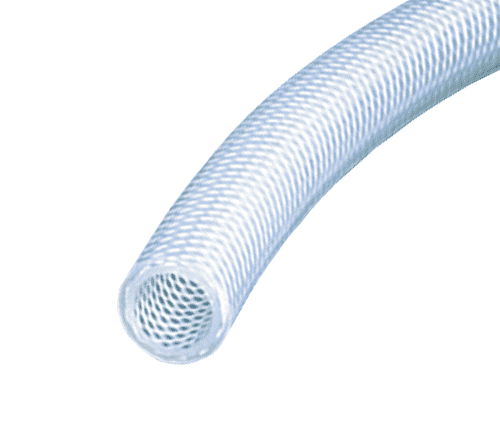

K4350-06X300 Kuri-Tec by Kuriyama | K4350 Series | Yarn-Reinforced Spray Hose | Clear | 3/8" ID | .594" OD | 300ft Length | EVA
Kuriyama Kuri Tec® K4350 Series EVA Yarn-Reinforced Spray Hose A yarn reinforced EVA hose suitable for low pressure spraying and transfer of agricultural chemicals.
Package Quantity: 300 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $231.00 |
| 20–59 | $208.88 |
| 60+ | $184.31 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
300
Tubing Construction:
Cover Construction:
Specifications and Approvals:
SPECIFICATIONS
| Application: | Agricultural spray applications, including anhydrous ammonia fertilizer, Low pressure transfer of liquids and gases, including chemicals. Low pressure lawn spray | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Translucent EVA copolymer |
| Reinforcement: | High tensile strength yarn. | Cover: | Translucent EVA copolymer. |
| Temperature Range: | -30 deg. F (-35 deg. C) to +150 deg. F (+65 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | RoHS(15) |
| Other Features: | |||
|
|||
| Part Number | Nominal ID | Nominal OD | Working Pressure | Standard Lengths | Approx Weight per Pkg | |||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | @ 70 deg. F (20 deg. C) (PSI) | @ 122 deg. F (50 deg. C) (PSI) | |||
| K4350-06X300 | 3/8" | 9.5mm | .594" | 15.1mm | 300 PSI | 100 PSI | 300 ft Coil | 22 lbs. |
| K4350-06X500 | 3/8" | 9.5mm | .594" | 15.1mm | 300 PSI | 100 PSI | 500 ft Reel | 41 lbs. |
| K4350-08X300 | 1/2" | 12.7mm | .719" | 18.3mm | 250 PSI | 75 PSI | 300 ft Coil | 26 lbs. |
| K4350-08X500 | 1/2" | 12.7mm | .719" | 18.3mm | 250 PSI | 75 PSI | 500 ft Reel | 51 lbs. |
| K4350-12X300 | 3/4" | 19.1mm | .970" | 24.6mm | 150 PSI | 40 PSI | 300 ft Coil | 36 lbs. |
| K4350-16X200 | 1" | 25.4mm | 1.313" | 33.4mm | 150 PSI | 30 PSI | 200 ft Coil | 47 lbs. |
