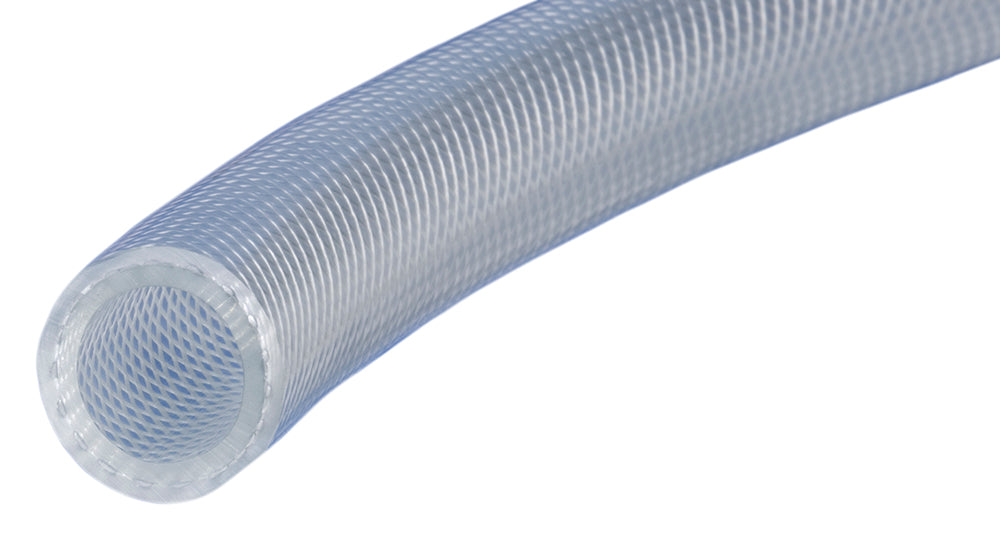

K3280-08X500 Kuri-Tec by Kuriyama | K3280 Series | NSF-61 Certified Reinforced PVC Flexible Connection Hose | .505" ID | .740" OD | Clear | 500ft Length

K3280-08X500 Kuri-Tec by Kuriyama | K3280 Series | NSF-61 Certified Reinforced PVC Flexible Connection Hose | .505" ID | .740" OD | Clear | 500ft Length

Sale price$613.52

Kuri Tec® by Kuriyama
K3280 / K3285 Series | NSF-61 Certified Reinforced PVC Flexible Connection Hose

A flexible, Phthalate Free non-contaminating NSF-61 certified hose that is ideal for use in drinking water applications.

Package Quantity: 500 Foot

Buy More, Save More!
Quantity Price Each
5–14 $576.71
15–29 $521.49
30+ $460.14
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Kuri Tec
Series:
  • K3280 Series
Color(s):
  • Clear/Semi-Clear

SPECIFICATIONS

Applications: Flexible water connectors.
Transfer of potable water.
Transfer of deionized water.
Water transfer lines for semiconductor manufacturing, where applicable.
Tube: Clear K3280 or white K3285 Phthalate Free tube compound is formulated in compliance with applicable FDA regulations, certified under NSF and RoHS criteria. Reinforcement: High tensile strength multifilament polyester yarn.
Cover: Clear Phthalate Free PVC compound formulated in compliance with applicable FDA regulations, certified under NSF criteria. Service Temperature Range: +14°F (-10°C) to +140°F (+60°C) Domestic Hot and Cold Water.
Specifications: ASME
FDA
NSF Certified to NSF/ANSI 61 & 372.
RoHS
Other Features:
  • Made with PVC Phthalate Free compounds certified under NSF-61.
  • When coupled properly, hose will pass high temperature extreme test requirement of ASME(02) criteria.
  • Closely-packed white polyester yarn design ensures minimal expansion of the hose while in service.
  • Silicone-free.
  • One-piece lengths.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. The pressure ratings of hose assemblies can be affected by the type of fitting used and the coupling procedure. We cannot be responsible for the suitability of the user's fittings or the coupling method used. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.
K3280 Series | Clear
Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure		 Approx Weight
Per Pkg
in mm in mm @70°F
(20°C)		 @150°F
(66°C)
K3280-04X500 0.260" 6.6mm 0.440" 11.1mm" 180 PSI 125 PSI 28 lbs.
K3280-06X500 0.380" 9.7mm 0.595" 15.1mm 180 PSI 125 PSI 46 lbs.
K3280-08X500 0.505" 12.8mm 0.740" 18.8mm 180 PSI 125 PSI 64 lbs.
K3285 Series | Clear with White Tube
Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure		 Approx Weight
Per Pkg
in mm in mm @70°F
(20°C)		 @150°F
(66°C)
K3285-05X500 0.320" 8.1mm 0.485" 12.3mm 180 PSI 125 PSI 29 lbs.
K3285-06X500 0.380" 9.7mm 0.595" 15.1mm 180 PSI 125 PSI 46 lbs.
K3285-08X500 0.505" 12.8mm 0.740" 18.8mm 180 PSI 125 PSI 64 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
