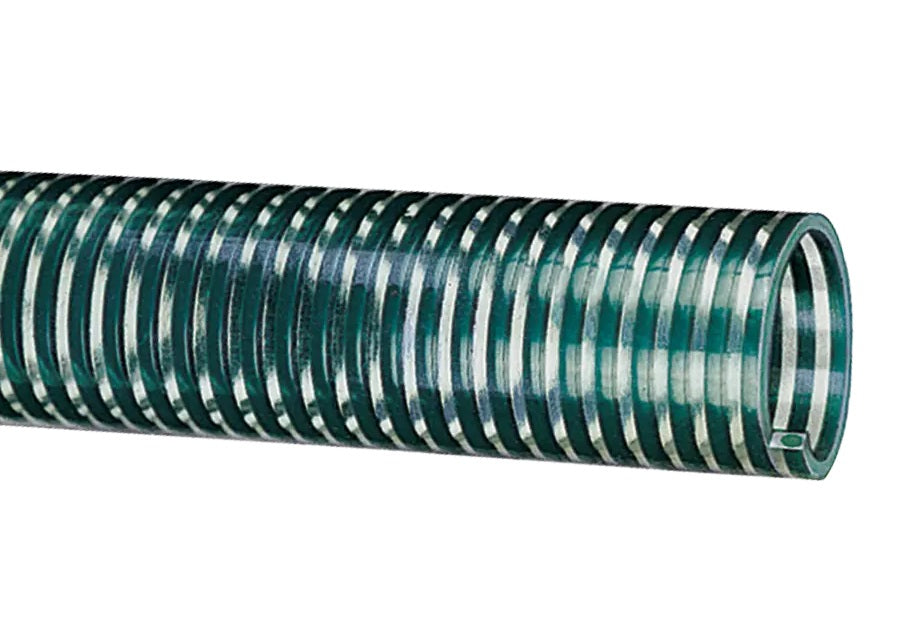

K200X100 Tigerflex® by Kuriyama | K™ Series | Standard-Duty Liquid Suction Hose | PVC | 2" ID | 2.32" OD | 100ft Length
Tigerflex® | K™ Series | Standard-Duty Liquid Suction Hose | PVC
Designed for agricultural, mining, and construction applications.
Ideal for liquid fertilizer transfer, irrigation and air seeder lines, drain lines, dewatering and trash pumps, rock dusting, and standard-duty water suction.
Made in the USA.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $424.92 |
| 15–29 | $384.23 |
| 30+ | $339.03 |
Product Data:
65
Kuriyama Tigerflex™ K Series
Transparent PVC suction hose designed for agricultural liquid fertilizer, irrigation, dewatering, mining and other standard-duty suction applications.
See-the-Flow
Transparent construction allows visual confirmation of material flow
PVC Helix
Rigid reinforcement supports suction service
Cover Options
Smooth or convoluted design depending on size
Made in USA
Manufactured in the United States
1
What is this product used for?
- Agricultural liquid fertilizer
- Air seeder lines
- Drain lines
- Irrigation lines
- Mining applications
- Rental and construction dewatering pumps
- Trash pumps
- Rock dusting
- Standard-duty water suction
2
What are the key specifications?
PVC
Rigid PVC helix
Smooth or convoluted, depending on size
-4°F (-20°C) to +150°F (+65°C)
Phthalate free and RoHS
Made in the USA
3
What are the main product features?
- Transparent Construction — “See-the-flow” design allows visual confirmation of material flow.
- Smooth Outer Cover on 3/4-Inch Through 4-Inch Sizes — Provides an increased pressure rating and a smooth surface for banding.
- Convoluted Outer Cover on 6-Inch and 8-Inch Sizes — Provides increased hose flexibility.
- Made in the USA — Manufactured in the United States.
4
Which sizes and lengths are available?
| Part Number | Inside Diameter | Outside Diameter | Working Pressure | Vacuum Rating | Minimum Bending Radius | Length | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | at 68°F | at 104°F | at 68°F | at 104°F | at 68°F | ft | lbs/ft | |
| K075X100 | 3/4" | 19.0 | 1.01" | 25.6 | 110 PSI | 70 PSI | 28 in Hg | 26 in Hg | 3" | 100 | 0.19 |
| K100X100 | 1" | 25.4 | 1.26" | 32.0 | 85 PSI | 60 PSI | 28 in Hg | 26 in Hg | 3" | 100 | 0.26 |
| K125X100 | 1-1/4" | 31.7 | 1.56" | 39.6 | 85 PSI | 60 PSI | 28 in Hg | 24 in Hg | 4" | 100 | 0.35 |
| K150X100 | 1-1/2" | 38.1 | 1.83" | 46.5 | 70 PSI | 50 PSI | 28 in Hg | 24 in Hg | 5" | 100 | 0.48 |
| K200X100 | 2" | 50.8 | 2.32" | 59.0 | 65 PSI | 45 PSI | 28 in Hg | 24 in Hg | 7" | 100 | 0.66 |
| K200X200 | 2" | 50.8 | 2.32" | 59.0 | 65 PSI | 45 PSI | 28 in Hg | 24 in Hg | 7" | 200 | 0.66 |
| K250X100 | 2-1/2" | 63.5 | 2.87" | 73.0 | 65 PSI | 45 PSI | 28 in Hg | 24 in Hg | 8" | 100 | 0.87 |
| K300X100 | 3" | 76.2 | 3.43" | 87.0 | 60 PSI | 40 PSI | 28 in Hg | 22 in Hg | 10" | 100 | 1.24 |
| K400X100 | 4" | 101.6 | 4.50" | 114.7 | 50 PSI | 35 PSI | 28 in Hg | 22 in Hg | 15" | 100 | 1.85 |
| K600X100 | 6" | 152.4 | 6.75" | 171.4 | 40 PSI | 25 PSI | 28 in Hg | 20 in Hg | 30" | 100 | 3.39 |
5
Where can I find product documents?
Kuriyama Tigerflex Hose Specifications Guide
Review the manufacturer specifications guide for additional compliance, construction and application information.
How is this product sold?
Available in 100 and 200 foot lengths, depending on hose size.
