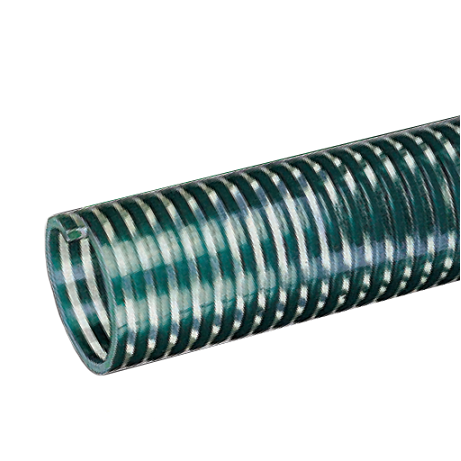

K150X100 Tigerflex by Kuriyama | K Series | Standard Duty Suction Hose | 1-1/2" ID | PVC | 100ft Length

K150X100 Tigerflex by Kuriyama | K Series | Standard Duty Suction Hose | 1-1/2" ID | PVC | 100ft Length

Sale price$337.18

Kuriyama
Tigerflex® | K™ Series | Standard-Duty Suction Hose | PVC

Designed for agricultural, mining, and construction applications.

Ideal for liquid fertilizer transfer, irrigation and air seeder lines, drain lines, dewatering and trash pumps, rock dusting, and standard-duty water suction.

Made in the USA.


Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
5–14 $316.95
15–29 $286.60
30+ $252.89
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Tigerflex
Series:
  • K Series
Color(s):
  • Green & Clear/Semi-Clear

SPECIFICATIONS

Application: Agricultural liquid fertilizer, Air seeder lines, Drain lines, Pumps, rental and construction dewatering Trash, Rock dusting, Water suction - standard duty, Irrigation lines SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications MSHA(09), RoHS(10)
Other Features:
  • Transparent Construction (H & K Series only) - "See-the flow." Allows for visual confirmation of material flow.
  • Smooth Outer Cover (Sizes 3/4" - 5") - Provides increased pressure rating and smooth surface for banding.
  • Convoluted Outer Cover (Sizes 6" & 8") - Provides increased hose flexibility.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
K075X100 3/4" 19.0mm 1.01" 25.6mm 110 PSI 70 PSI 28 in.Hg 26 in.Hg 3" 100ft 0.19 lbs
K100X100 1" 25.4mm 1.26" 32.0mm 85 PSI 60 PSI 28 in. Hg 26 in .Hg 3" 100ft 0.26 lbs
K125X100 1-1/4" 31.7mm 1.56" 39.6mm 85 PSI 60 PSI 28 in. Hg 24 in .Hg 4" 100ft 0.35 lbs
K150X100 1-1/2" 38.1mm 1.83" 46.5mm 70 PSI 50 PSI 28 in. Hg 24 in. Hg 5" 100ft 0.48 lbs
K200X100 2" 50.8mm 2.32" 59.0mm 65 PSI 45 PSI 28 in. Hg 24 in. Hg 7" 100ft 0.66 lbs
K250X100 2-1/2" 63.5mm 2.87" 73.0mm 65 PSI 45 PSI 28 in. Hg 24 in. Hg 8" 100ft 0.87 lbs
K300X100 3" 76.2mm 3.43" 87.0mm 60 PSI 40 PSI 28 in. Hg 22 in. Hg 10" 100ft 1.24 lbs
K400X100 4" 101.6mm 4.50" 114.7mm 50 PSI 35 PSI 28 in. Hg 22 in. Hg 15" 100ft 1.85 lbs
K600X100 6" 152.4mm 6.75" 171.4mm 40 PSI 25 PSI 28 in. Hg 20 in. Hg 30" 100ft 3.39 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
