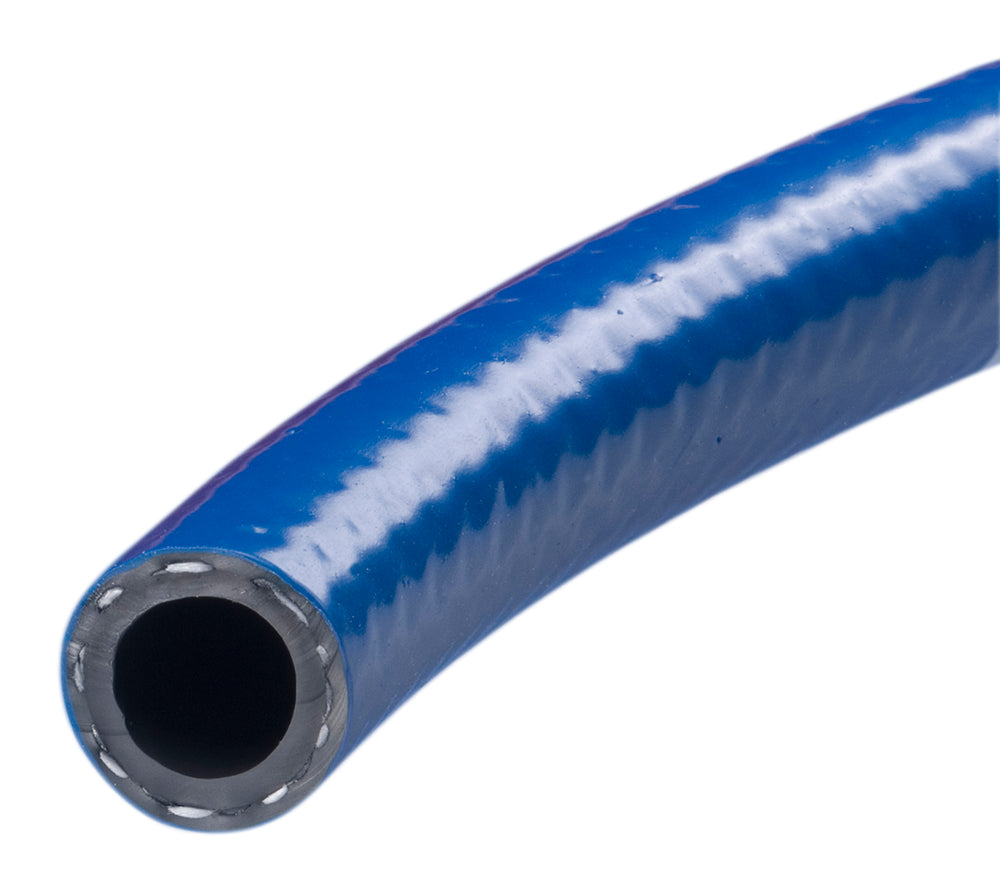

K1186-06X500 Kuri-Tec by Kuriyama | K1186 Series | Utility Grade PVC Air Hose | 3/8" ID | .600" OD | Blue | 500ft Length
Kuri Tec® by Kuriyama
K1186 Series | Utility Grade PVC Air Hose
A lightweight utility air and water hose economically designed for indoor and outdoor applications operating in temperate climate conditions.
Package Quantity: 500 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $222.88 |
| 20–59 | $201.54 |
| 60+ | $177.83 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
300
Tubing Construction:
Cover Construction:
SPECIFICATIONS
| Applications: | Transfer of air, water and mild water soluble chemicals. Indoor/outdoor air tool service. |
||
|---|---|---|---|
| Tube: | Black PVC compound. | Reinforcement: | High tensile strength yarn. |
| Cover: | PVC compound. | Service Temperature Range: | +14°F (-10°C) to +150°F (+65°C) |
| Specifications: | Phthalate Free | ||
| Other Features: | |||
|
|||
| K1181 Series | Yellow | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number 500ft |
Nominal ID | Nominal OD | Max. Working Pressure |
||||||
| in | mm | in | mm | @70°F (20°C) |
|||||
| K1181-04X500 | 1/4" | 6.5mm | 0.475" | 12.1mm | 300 PSI | ||||
| K1181-06X500 | 3/8" | 9.5mm | 0.600" | 15.2mm | 300 PSI | ||||
| K1184 Series | Red | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number 500ft |
Nominal ID | Nominal OD | Max. Working Pressure |
||||||
| in | mm | in | mm | @70°F (20°C) |
|||||
| K1184-04X500 | 1/4" | 6.5mm | 0.475" | 12.1mm | 300 PSI | ||||
| K1184-06X500 | 3/8" | 9.5mm | 0.600" | 15.2mm | 300 PSI | ||||
| K1186 Series | Blue | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number 100ft |
Part Number 500ft |
Nominal ID | Nominal OD | Max. Working Pressure |
|||||
| in | mm | in | mm | @70°F (20°C) |
|||||
| - | K1186-04X500 | 1/4" | 6.5mm | 0.475" | 12.1mm | 300 PSI | |||
| K1186-06X100 | K1186-06X500 | 3/8" | 9.5mm | 0.600" | 15.2mm | 300 PSI | |||
