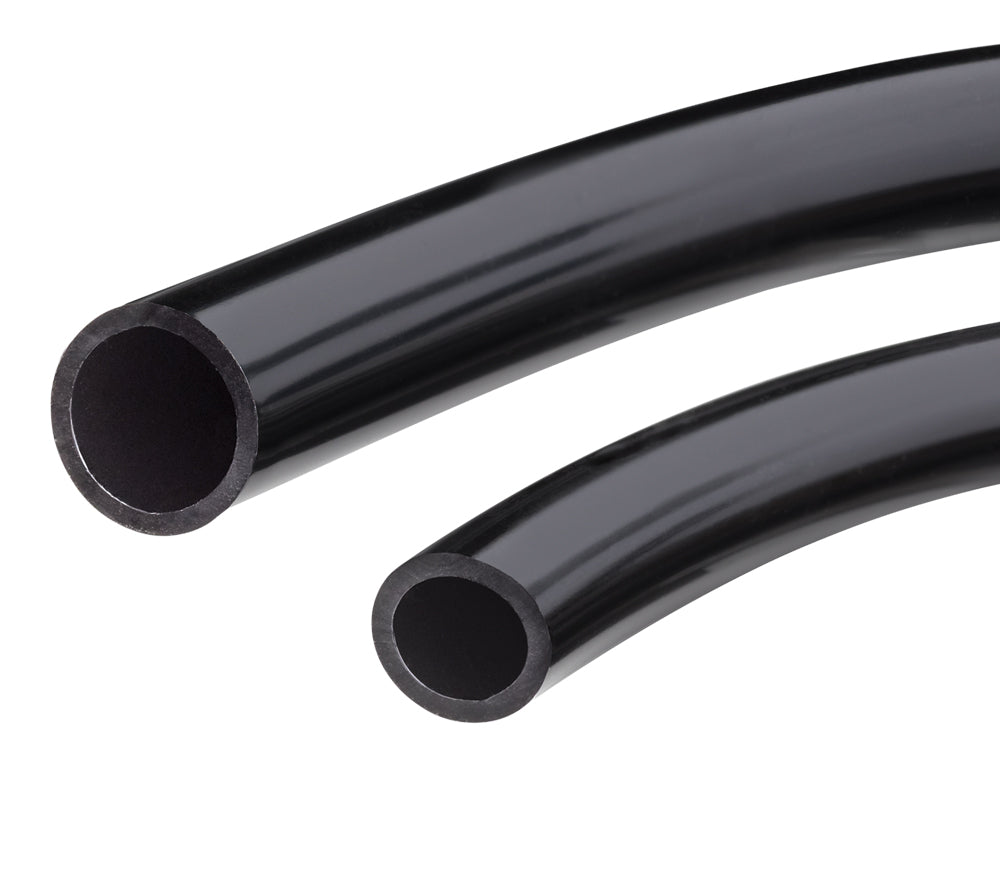

K05BK-2024X50 Kuri-Tec by Kuriyama | K05BK Series | UV Resistant PVC Tubing | 1-1/4" ID | 1-1/2" OD | 1/8" Wall Thickness | Black | 50ft Length

K05BK-2024X50 Kuri-Tec by Kuriyama | K05BK Series | UV Resistant PVC Tubing | 1-1/4" ID | 1-1/2" OD | 1/8" Wall Thickness | Black | 50ft Length

Sale price$132.34

Kuri Tec® by Kuriyama
K05BK Series | UV Resistant Black PVC Tubing

Specially formulated to resist the cracking that can result for exposure to damaging UV light. Great for outdoor applications.

Made in North America.

Package Quantity: 50 Foot

Buy More, Save More!
Quantity Price Each
5–19 $124.40
20–59 $112.49
60+ $99.26
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Kuri Tec
Series:
  • K05BK Series
Color(s):
  • Black

SPECIFICATIONS

Applications: Drainage lines.
Outdoor applications.
Printing press equipment.
Transfer of weak chemicals and acids.
Tube: Black phthalate free PVC compound formulated with ingredients in compliance with applicable FDA(03) and RoHS (16) requirements. Reinforcement: -
Cover: - Service Temperature Range: +25°F (-4°C) to +150°F (+65°C)
Specifications: FDA
Phthalate Free
RoHS
Other Features:
  • Advanced UV Protection - Tubing material is specially formulated to resist the cracking that can result for exposure to damaging UV light. Great for outdoor applications.
  • Food Grade Materials - Tubing complies with applicable FDA requirements.
  • Glass-smooth Interior - Reduces possibility of material buildup and ensures smooth material flow.
  • Self-Extinguishing - Tubing will not continue to burn after separation from flame source.
  • Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures
Part Number Nominal ID Nominal OD Nominal Wall Working
Pressure (PSI)		 Standard
Lengths Coils
(in) (mm) (in) (mm) (in) (mm) at 70°F (20°C) ft.
K05BK-0406X100 1/4" 6.4mm 3/8" 9.5mm 1/16" 1.6mm 55 PSI 100 ft.
K05BK-0608X100 3/8" 9.5mm 1/2" 12.7mm 1/16" 1.6mm 45 PSI 100 ft.
K05BK-0810X100 1/2" 12.7mm 5/8" 15.9mm 1/16" 1.6mm 30 PSI 100 ft.
K05BK-1216X100 3/4" 19.1mm 1" 25.4mm 1/8" 3.2mm 35 PSI 100 ft.
K05BK-1620X100 1" 25.4mm 1-1/4" 31.8mm 1/8" 3.2mm 25 PSI 100 ft.
K05BK-2024X50 1-1/4" 31.8mm 1-1/2" 38.1mm 1/8" 3.2mm 20 PSI 50 ft.
K05BK-2432X50 1-1/2" 38.1mm 2" 50.8mm 1/8" 3.2mm 35 PSI 50 ft.
