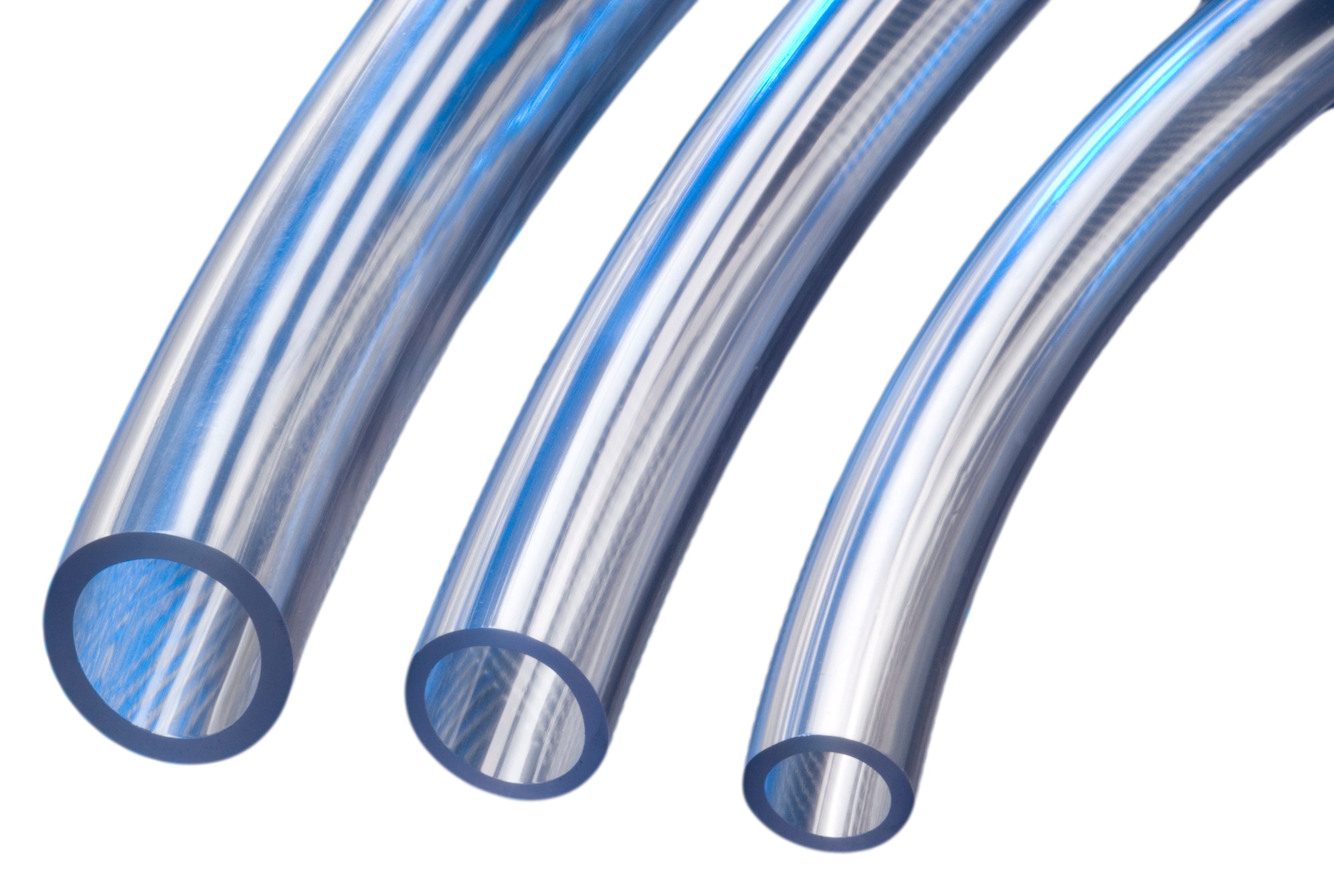

K050-0204X100 Kuri-Tec by Kuriyama | K050 Series | Food Grade Clear PVC Tubing | 1/8" ID | 1/4" OD | 1/16" Wall Thickness | 100ft Length

K050-0204X100 Kuri-Tec by Kuriyama | K050 Series | Food Grade Clear PVC Tubing | 1/8" ID | 1/4" OD | 1/16" Wall Thickness | 100ft Length

Minimum Order Quantity: 5 Units

Sale price$25.57

Kuri Tec® by Kuriyama
K050 Series | Food Grade Clear PVC Tubing

Utility grade clear food grade Phthalate Free PVC tubing for general use applications.

Suitable for drainage and air line applications in air conditioning, refrigeration, printing press equipment, and high-efficiency furnaces, as well as the transfer of weak chemicals and acids.

Package Quantity: 100 Foot

Buy More, Save More!
Quantity Price Each
20–39 $24.04
40–79 $21.73
80+ $19.18
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Kuri Tec
Series:
  • K050 Series
Color(s):
  • Clear/Semi-Clear
General Applications:
  • Air conditioning drainage.
  • Refrigeration drainage.
  • Air lines.
  • Printing press equipment.
  • High efficiency furnace drainage.
  • Transfer of weak chemicals and acids.
Construction:
  • Clear Phthalate Free PVC compound formulated with ingredients in compliance with applicable FDA(03) and RoHS(16) requirements.
Service Temperature Range:
  • +25°F (-4°C) to +150°F (+65°C)
Features and Advantages:
  • High gloss clear appearance with glass smooth interior to reduce sediment buildup.
  • FDA compliant Phthalate Free PVC compound.
  • Self-extinguishing.
  • Compound hardness 75±3 Shore "A".
  • Phthalate Free.
Specifications:
  • FDA
  • Phthalate Free
  • RoHS
Notes:
  • Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® non-reinforced PVC tubing is not recommended. Hose claims involving use of these fittings will be disallowed
Part Number Nominal ID Nominal OD Nominal Wall Working
Pressure		 Approx. Weight
per Pkg
in mm in mm in mm (PSI)
@70°F
(20°C)
K050-0204X100 1/8" 3.2mm 1/4" 6.4mm 1/16" 1.6mm 65 PSI 2.0 lbs.
K050-0305X100 3/16" 4.8mm 5/16" 7.9mm 1/16" 1.6mm 55 PSI 2.7 lbs.
K050-0406X100 1/4" 6.4mm 3/8" 9.5mm 1/16" 1.6mm 55 PSI 3.4 lbs.
K050-0408X100 1/4" 6.4mm 1/2" 12.7mm 1/8" 3.2mm 60 PSI 8.0 lbs.
K050-0507X100 5/16" 7.9mm 7/16" 11.1mm 1/16" 1.6mm 50 PSI 4.0 lbs.
K050-0608X100 3/8" 9.5mm 1/2" 12.7mm 1/16" 1.6mm 45 PSI 4.7 lbs.
K050-0609X100 3/8" 9.5mm 9/16" 14.3mm 3/32" 2.4mm 50 PSI 7.5 lbs.
K050-0610X100 3/8" 9.5mm 5/8" 15.9mm 1/8" 3.2mm 55 PSI 10.7 lbs.
K050-0810X100 1/2" 12.7mm 5/8" 15.9mm 1/16" 1.6mm 30 PSI 6.0 lbs.
K050-0812X100 1/2" 12.7mm 3/4" 19.1mm 1/8" 3.2mm 45 PSI 13.4 lbs.
K050-1013X100 5/8" 15.9mm 13/16" 20.6mm 3/32" 2.4mm 35 PSI 11.6 lbs.
K050-1014X100 5/8" 15.9mm 7/8" 22.2mm 1/8" 3.2mm 40 PSI 16.1 lbs.
K050-1216X100 3/4" 19.1mm 1" 25.4mm 1/8" 3.2mm 35 PSI 18.8 lbs.
K050-1418X100 7/8" 22.2mm 1-1/8" 28.6mm 1/8" 3.2mm 30 PSI 21.4 lbs.
K050-1620X100 1" 25.4mm 1-1/4" 31.8mm 1/8" 3.2mm 25 PSI 24.1 lbs.
K050-2024X50 1-1/4" 31.8mm 1-1/2" 38.1mm 1/8" 3.2mm 20 PSI 14.8 lbs.
K050-2430X50 1-1/2" 38.1mm 1-7/8" 47.6mm 3/16" 4.8mm 30 PSI 27.1 lbs.
K050-2432X50 1-1/2" 38.1mm 2" 50.8mm 1/4" 6.4mm 35 PSI 37.5 lbs.
K050-3240X50 2" 50.8mm 2-1/2" 63.5mm 1/4" 6.4mm 35 PSI 48.2 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
